SK-AM62: UART Not Working in MCU pins

Hi Veerapandiyan,

veerapandiyan v said:

I use example uart code is working in micro B  port last com is connected terminal software is working uart but i want gpio not enable Tx Rx. how to change micro b port to mcu pins.

Can you please clarify more on this question.

Regards,

Vaibhav

Hi Vaibhav,

I connect TTL Converter CP2102 UART0 not coming data gpio pins. But debug console last port is working in serial Communication. I want gpio pins and connect gps module.

Thanks Regards,

Veerapandiyan V

Hi Veerapandiyan,

I found a guide to use CP210x UART to USB. It is emphasizing on serial communication. Please check this.

veerapandiyan v said:

I connect TTL Converter CP2102 UART0 not coming data gpio pins. But debug console last port is working in serial Communication. I want gpio pins and connect gps module.

Are you telling that you have connected the pins of CP2102 to MAIN_UART0?

Regards,

Vaibhav

Hi Vaibhav,

   Yes. I telling UART0 connected GPIO pins A5-Tx pin is connected CP2102 Rx pin,B5 Rx pin is connected CP2102 Tx. I attached GPIO pin configuration sysconfig file attached.

How to fix problem.

Thanks Regards,

Veerapandiyan V

Hi Veerapandiyan,

Please allow me sometime to understand your problem.

Expect a few follow up question within few business days.

Regards,

Vaibhav

Hello Veerapandiyan,

Can you please confirm if you have already installed the USB to UART drivers to work with CP2102 ?

Please check here: https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloads

Regards,

Vaibhav

Hi Vaibhav,

CP2102 Drivers also installed my windows laptop and linux also working fine. So you send video link. UART1 code.

Thanks Regards,

Veerapandiyan V

Hi Veerapandiyan,

I see you were trying to interface MCU_UART0. On that note, I would like to point out something.

Please have a look at the designated UARTs for different logs.

TIFS logging console - MAIN_UART1

DM logging console - WKUP_UART0

MCU+SDK console - MCU_UART0

I am going through the schematics and datasheet, post which I will tell you which UART you can use/configure and use it for your application of connecting UART to CP2102.

Please allow me sometime, preferably a day.

Regards,

Vaibhav

Hi Vaibhav,

Ok. I am waiting.

send Your Reference Document.

Thanks Regards,

Veerapandiyan V.

Hi Veerapandiyan,

Can you look at the MAIN_UART5?

Read the schematics and you should be able to find the TX and RX pins for UART5.

You can try using this for your setup.

Regards,

Vaibhav

Hi Vaibhav,

  UART5 is working. I want anther UART  pin i want. UART5 is used GSM. GPS is UART communication.

Thanks Regards,

Veerapandiyan V.

Hi Veerapandiyan,

I have seen you raised a new E2E asking the same thing on which UART to use.

So, to avoid confusion lets discuss it here itself.

I am going to close that thread and discuss here itself.

Regards,

Vaibhav

Hi Vaibhav,

Ok continue this thread.

Best Regards,

Veerapandiyan V.

Hi Veerapandiyan,

I am going to try using the Main Domain UARTs and let you know how it goes.

Expect responses within a couple of days.

Regards,

Vaibhav

Hi Vaibhav,

Ok. I still waiting.

Best Regards,

Veerapandiyan V.

Hello Veerapandiyan,

Apologies in delayed responses.

Currently I see that MAIN DOMAIN UART0 is working fine.

Rest of the UARTs are reserved.

Please allow me sometime to check internally with the Schematics and update you again.

Regards,

Vaibhav

Hi Vaibhav,

Ok. I still waiting. Tell UART3,4 and UART6.

Best Regards,

Veerapandiyan V.

Hi Veerapandiyan,

Please expect a response by EOD.

Regards,

Vaibhav

Hi Vaibhav,

Ok. I still waiting.

Best Regards,

Veerapandiyan V.

Hello Veerapandiyan,

At my end, UART3, 4 and 6 seems to not work as well.

I am going to pull another member to comment on this.

Regards,

Vaibhav

Hi Vaibhav,

Ok.I will wait the answer.

Thanks Regards,

Veerapandiyan V.

Hi Vaibhav,

Any Update. I still waiting for your replay.

Thanks Regards,

Veerapandiyan V.

Hi Veerapandiyan,

Expect responses within few hours.

Regards,

Vaibhav

Hi Vaibhav,

I will Wait.

Thanks Regards,

Veerapandiyan.

Hi Vaibhav,

Any Update. I Still Waiting.

Thanks Regards,

Veerapandiyan.

Hi Veerapandiyan,

I have verified that the UART 3 4 and 6 are not able to process the inputs.

I have tried using SBL/SPL both both to a point where I only see that MAIN_UART0 is only working.

Although UART5 is available but I think it is using GSM.

Can you point me to a doc where you find this information about UART5 using GSM? That would help me move forward.

Regards,

Vaibhav

Hi Vaibhav,

UART5 is working send(Tx) and receive(Rx) working fine. I have connect separate module GSM,GPS is working in UART5. This time i connect and work for GSM UART5 is working fine.

GPS which UART i use tell mee vaibhav.

Thanks Regards,

Veerapandiyan V.

Hello Veerapandiyan,

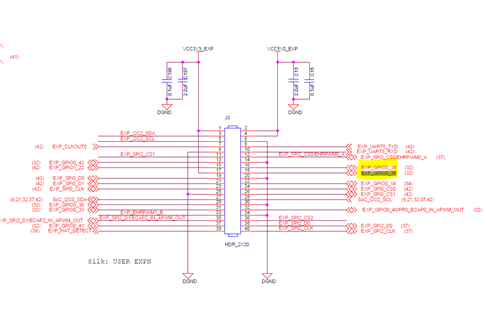

On the AM62X SK board, UART5 TX and RX pins are already available on J3.

You can use them to connect based on your requirements, either to GSM or GPS.

Do you need any other information? Please let us know.

Regards,

S.Anil.

Hi Anil,

I am using GSM and GPS both module are used am62x board. how to connect two module same time UART5 tell me. I want different UART GSM connected UART5. GPS which UART? i connect this is my question. I am using both module.

Thanks Regards,

Veerapandiyan V.

Hi Anil,

UART5 and UART6 is working fine Thank you for your response. how to enable UART1 and UART2 i want BLE is connected UART1 and UART2 how to enable.

Thanks Regards,

Veerapandiyan V.

Hi Anil,

Any Update UART1 and UART2.

Thanks Regards,

Veerapandiyan V.
