AM62A7-Q1: Simulation

KenF said:

2. Is there a target impedance specification for PI analysis?

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1203305/faq-am62a7-and-am62a7-q1-custom-board-hardware-design-collaterals-to-get-started

We have the target impedance value for the core voltage and the DDR voltage.

KenF said:

1. They have a question about the SoC model to perform SI analysis of LPDDR4. They will use ( www.ti.com/.../sprm785 ) as SoC IBIS model. Please share package model and on Die Capacitor model? (S-parameter or SPICE equivalent circuit)

I will have to check with the simulation expert. Is there a use case that customer has and can you please ask for some additional details.

Regards,

Sreenivasa

Hello Ken,

Please refer below inputs received from the simulation expert on  the Die capacitance

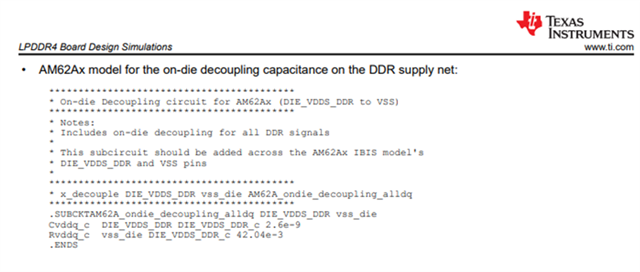

Pl point the customer to the app note SPRAD66 for answers to the Die capacitance. Section 3.5.1.

There is no target impedance specification for DDR power as we do not follow a targetZ based methodology. The power-aware simulation methodology for LPDDR is detailed in Section 3.

Pls let me know your thoughts.

Regards,

Sreenivasa

Hello Sreenivasa,

Thank you for checking it with the simulation expert. Per my customer, they are thinking to perform simulation based on our guidelines below:
* AM62Ax DDR Board Design and Layout Guidelines "3.5.1 Simulation Setup"
https://www.ti.com/jp/lit/pdf/sprad66



Their understanding is package model and on Die Capacitor model are required (S-parameter or SPICE equivalent circuit) to perform simulation written in the application note. Is their understanding correct?

Best regards,
Ken

Hello Ken,

As i am checking the availability of the package model internally, could you please ensure you have the required NDA to be able to share the files.

Regards,

Sreenivasa

Hello Sreenivasa,

We have NDA.

Best regards,
Ken

Hello Ken,

Thank you for the note.

Regards,

Sreenivasa

Hello Sreenivasa,

Any update here?

Best regards,
Ken

Hello Ken,

Thank you for following.

The file i have is a 200 MB file.

I am checking how we have been previously sharing  large files to follow the same.

Please email me if you have any suggestion.

Regards,

Sreenivasa

Sreenivasa,

I sent an e-mail to you 12 hours ago. Can you please check?

Best regards,
Ken

Hello Ken,

Thank you for checking.

I have already uploaded the file in the box link you shared.

Regards,

Sreenivasa

Hello Sreenivasa,

I email you the same.

What I sent was TI drive, not box link. Can you please check again?

Best regards,
Ken

Hello Ken,

I see you pressed the resolved button.

Can you confirm you received the files.

Also confirmation that the customer is able to use the files would help.

Regards,

Sreenivasa
