SK-AM62: Regarding CAN reception

seiya.mizuno

Part Number: SK-AM62

I installed a CAN transceiver on the board to receive CAN data sent from outside. I have TX connected to pin 16 and RX to pin 22.

The sample code "mcan_loopback_polling_am62x-sk_m4fss0-0_freertos_ti-arm-clang" is used.
Since there are no plans to transmit CAN from the board this time, the transmission part of the sample code is commented out.
However, when I load the code into M4F_1 and check its operation, it seems that it is not able to escape from the do-while statement in the receiving part. (lines 167-171)
I use an oscilloscope to confirm that the signal is coming to the entrance of the board.

How can I check only the received part?
The SDK and CAN transceiver used are as follows.

MCU+SDK：09_00_00_19
CAN transceiver: R-REF03-CAN1

over 2 years ago

0 Nihar Potturu over 2 years ago

TI__Mastermind 20706 points

Hello,

The default MCAN example in the MCU+SDK is an internal loopback example, if you want to make it work with an external CAN transceiver, you will have disable the internal loopback mode.

You can disable it by setting the App_mcanConfig function to false in mcan_loopback_polling.c (C:\ti\mcu_plus_sdk_am62x_09_00_00_19\examples\drivers\mcan\mcan_loopback_polling\mcan_loopback_polling.c)

You can also go through the link below, to get more insight on how to connect an external transceiver on AM62x :

https://software-dl.ti.com/processor-sdk-linux/esd/AM62X/08_05_00_21/exports/docs/linux/How_to_Guides/Target/How_to_test_MCAN_on_AM62x.html#transceiver-on-am62x

Hope this helps.

Regards,

Nihar Potturu

0 seiya.mizuno over 2 years ago in reply to Nihar Potturu

Prodigy 180 points

I set the App_mcanConfig function to FALSE, but I still haven't received it.
I checked how to connect the external transceiver on the link, but by default, MCAN0_RX must use pin 8 of J3, and MCAN0_TX must use pin 10 of J3?

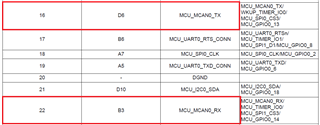

When I check page 59 of the sk-am62 user guide, it appears that pins 16 and 22 of J9 are compatible with MCAN0_TX/MCAN0_RX, but is there a way to use them?

0 Aparna Patra over 2 years ago in reply to seiya.mizuno

TI__Genius 12980 points

Hi,

Please verify the syscfg configuration settings, by default it is set to MCU_MCAN1, so accordingly pins should be connected.
Also, can you let us know how are you sending over the data?

Thanks & regards,
Aparna

0 seiya.mizuno over 2 years ago in reply to Aparna Patra

Prodigy 180 points

Hi,

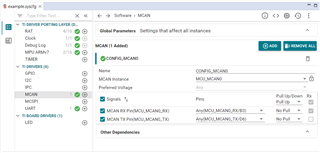

The pin settings are set to MCU_MCAN0.

Data transmission uses CANalyzer to transmit data.

0 Nihar Potturu over 2 years ago in reply to seiya.mizuno

TI__Mastermind 20706 points

Hello,

Apologies for the delay. Are you still facing this issue? If yes, can you tell me if you are using a default AM62x EVM or a custom board?

Regards,

Nihar Potturu.
