TMDS64EVM: How to build and upload a program

Juan Bogado

Part Number: TMDS64EVM

Hi, my company has a TMDS64EVM board, it is a HSFS device. We already have it configured. Last step we did was change the UART boot mode to OPSI boot mode, turn on the board and got the following response:

We are now following these steps: AM64x MCU+ SDK: CCS Launch, Load and Run (ti.com)

We still have the boot mode on OPSI boot mode

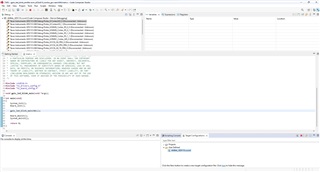

We get the following response:

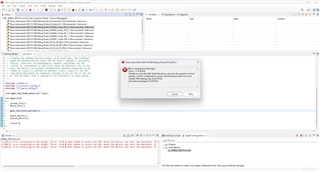

But when we connect to the target, we use the same core the example uses, Cortex_R5_0_0 we get the following:

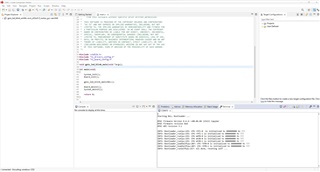

Are we missing a step? Is that the right boot mode to upload program. We downloaded a sample program that blinks an LED from the TI examples. Code can be found on the last image.

Does the fact that we have a HSFS device makes the procedure different?

Thanks for the help.

Juan

over 2 years ago

0 Prashant Shivhare over 2 years ago

TI__Guru 69541 points

Hi Juan,

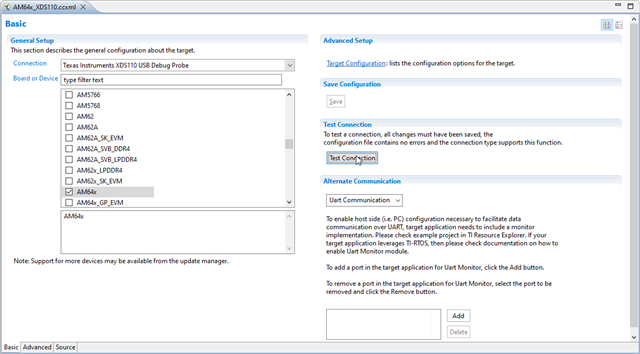

The steps performed looks all okay. This error then maybe because of a faulty JTAG connection to the board. Could you plesae double click the .ccxml file and perform the "Test Connection" as shown

Regards,

Prashant

0 Juan Bogado over 2 years ago in reply to Prashant Shivhare

Prodigy 20 points

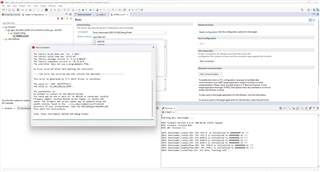

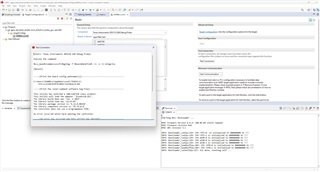

Hi Prashant, thanks for your response. I performed the "Test connection" and this is what I got:

0 Prashant Shivhare over 1 year ago in reply to Juan Bogado

TI__Guru 69541 points

Hi Juan,

Thanks for following up.

I have forwarded your query to the expert team. You should be hearing from them soon.

Regards,

Prashant

+1 Ki over 1 year ago in reply to Juan Bogado

TI__Guru**** 463941 points

Hi Juan,

Have you tried the troubleshooting tip in section 4.1 (page 58) of the EVM User's Guide?

https://www.ti.com/lit/ug/spruj63/spruj63.pdf

Thanks

0 Juan Bogado over 1 year ago in reply to Ki

Prodigy 20 points

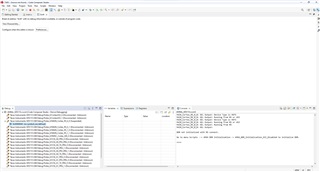

Hi Ki, thank you for your response. I got the communication going but know I get this message

0 Ki over 1 year ago in reply to Juan Bogado

TI__Guru**** 463941 points

Juan Bogado said:
Hi Ki, thank you for your response. I got the communication going but know I get this message

If you are referring to the "no debug symbol available" message, that is just saying that the CPU is halted at a location without any debug symbol association. It is not necessarily an error. Otherwise the connection looks good.

0 Juan Bogado over 1 year ago in reply to Ki

Prodigy 20 points

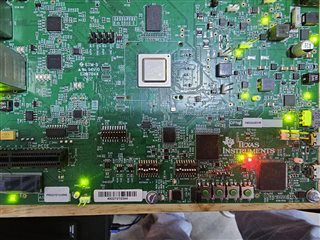

Hi KI, I forgot to mention in my previous message that I also try uploading a program, regarless of that message "Break at address "0x44", and the board just turn on a red LED that is on the picture. The program is suppose to blink an LED
