Hi Team,
Development board: TDA4VM_EDGE_AI_kit, and ti-processor-sdk-linux-j7-evm-08_06_00_11 is being used.

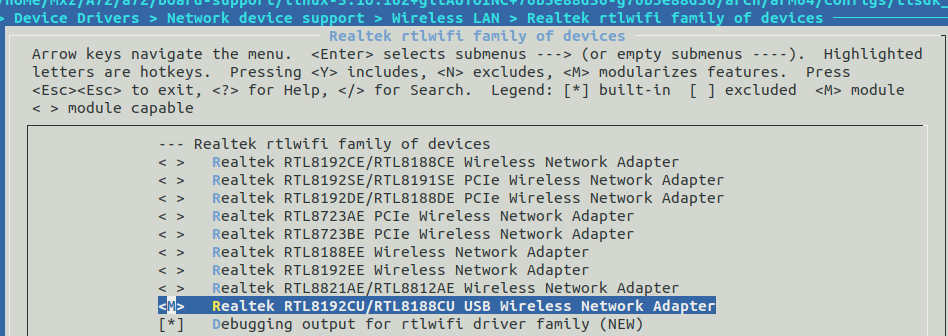

On TDA4, using the USB 8818EUC wireless card to drive AP mode, the system does not boot and the kernel is stuck when only the IEEE 802.11 for Host AP (Prism2/ 2.5/3 and WEP/TKIP/CCMP ) is turned on.
Xshell 7 (Build 0122) Copyright (c) 2020 NetSarang Computer, Inc. All rights reserved. Type `help' to learn how to use Xshell prompt. [C:\~]$ Connecting to COM33... Connected. U-Boot SPL 2021.01 (Oct 11 2023 - 21:48:38 +0800) Model: Texas Instruments J721E SK R5 Board: J721EX-EAIK rev A1 SYSFW ABI: 3.1 (firmware rev 0x0008 '8.6.3--v08.06.03 (Chill Capybar') Trying to boot from MMC2 Starting ATF on ARM64 core... NOTICE: BL31: v2.8(release):v2.8-226-g2fcd408bb3-dirty NOTICE: BL31: Built : 22:56:45, Mar 3 2023 I/TC: I/TC: OP-TEE version: 3.20.0 (gcc version 9.2.1 20191025 (GNU Toolchain for the A-profile Architecture 9.2-2019.12 (arm-9.10))) #1 Fri Mar 3 22:59:24 UTC 2023 aarch64 I/TC: WARNING: This OP-TEE configuration might be insecure! I/TC: WARNING: Please check https://optee.readthedocs.io/en/latest/architecture/porting_guidelines.html I/TC: Primary CPU initializing I/TC: SYSFW ABI: 3.1 (firmware rev 0x0008 '8.6.3--v08.06.03 (Chill Capybar') I/TC: HUK Initialized I/TC: Activated SA2UL device I/TC: Fixing SA2UL firewall owner for GP device I/TC: Enabled firewalls for SA2UL TRNG device I/TC: SA2UL TRNG initialized I/TC: SA2UL Drivers initialized I/TC: Primary CPU switching to normal world boot U-Boot SPL 2021.01 (Oct 11 2023 - 21:48:38 +0800) Model: Texas Instruments J721E SK A72 Board: J721EX-EAIK rev A1 SYSFW ABI: 3.1 (firmware rev 0x0008 '8.6.3--v08.06.03 (Chill Capybar') Trying to boot from MMC2 U-Boot 2021.01 (Oct 11 2023 - 21:48:38 +0800) SoC: J721E SR1.1 GP Model: Texas Instruments J721E SK A72 Board: J721EX-EAIK rev A1 DRAM: 4 GiB Flash: 0 Bytes MMC: sdhci@4fb0000: 1 Loading Environment from FAT... *** Warning - bad CRC, using default environment In: serial@2800000 Out: serial@2800000 Err: serial@2800000 am65_cpsw_nuss ethernet@46000000: K3 CPSW: nuss_ver: 0x6BA00101 cpsw_ver: 0x6BA80100 ale_ver: 0x00293904 Ports:1 mdio_freq:1000000 cdns,sierra serdes@5000000: sierra probed Net: eth0: ethernet@46000000port@1 ota_init bootfirst=0, trycount=0, bootpart=1:2 normal boot Saving Environment to FAT... OK Hit any key to stop autoboot: 0 switch to partitions #0, OK mmc1 is current device SD/MMC found on device 1 Failed to load 'boot.scr' Failed to load 'uEnv.txt' 18090496 bytes read in 751 ms (23 MiB/s) 108803 bytes read in 14 ms (7.4 MiB/s) ## Flattened Device Tree blob at 88000000 Booting using the fdt blob at 0x88000000 Loading Device Tree to 000000008fee2000, end 000000008fffffff ... OK Starting kernel ... [ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x411fd080] [ 0.000000] Linux version 5.10.162 (mxz@mxz-VirtualBox) (aarch64-none-linux-gnu-gcc (GNU Toolchain for the A-profile Architecture 9.2-2019.12 (arm-9.10)) 9.2.1 20191025, GNU ld (GNU Toolchain for the A-profile Architecture 9.2-2019.12 (arm-9.10)) 2.33.1.20191209) #1 SMP PREEMPT Thu Oct 12 08:54:37 CST 2023 [ 0.000000] Machine model: Texas Instruments J721E SK [ 0.000000] earlycon: ns16550a0 at MMIO32 0x0000000002800000 (options '') [ 0.000000] printk: bootconsole [ns16550a0] enabled [ 0.000000] efi: UEFI not found. [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a0000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a0000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a0100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a0100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a1000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a1000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a1100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a1100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a2000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a2000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a2100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a2100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a3000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a3000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a3100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a3100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a4000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a4000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a4100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a4100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a5000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node r5f-dma-memory@a5000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a5100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node r5f-memory@a5100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a6000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node c66-dma-memory@a6000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a6100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node c66-memory@a6100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a7000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node c66-dma-memory@a7000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a7100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node c66-memory@a7100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a8000000, size 1 MiB [ 0.000000] OF: reserved mem: initialized node c71-dma-memory@a8000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000a8100000, size 15 MiB [ 0.000000] OF: reserved mem: initialized node c71-memory@a8100000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000ac000000, size 2 MiB [ 0.000000] OF: reserved mem: initialized node r5f-virtual-eth-queues@ac000000, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x00000000ac200000, size 30 MiB [ 0.000000] OF: reserved mem: initialized node r5f-virtual-eth-buffers@ac200000, compatible id shared-dma-pool [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000080000000-0x00000000ffffffff] [ 0.000000] DMA32 empty [ 0.000000] Normal [mem 0x0000000100000000-0x00000008ffffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000080000000-0x000000009e7fffff] [ 0.000000] node 0: [mem 0x000000009e800000-0x00000000a8ffffff] [ 0.000000] node 0: [mem 0x00000000a9000000-0x00000000a9ffffff] [ 0.000000] node 0: [mem 0x00000000aa000000-0x00000000abbfffff] [ 0.000000] node 0: [mem 0x00000000abc00000-0x00000000abffffff] [ 0.000000] node 0: [mem 0x00000000ac000000-0x00000000adffffff] [ 0.000000] node 0: [mem 0x00000000ae000000-0x00000000ffffffff] [ 0.000000] node 0: [mem 0x0000000880000000-0x00000008ffffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000080000000-0x00000008ffffffff] [ 0.000000] cma: Reserved 512 MiB at 0x00000000e0000000 [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.1 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: Trusted OS migration not required [ 0.000000] psci: SMC Calling Convention v1.2 [ 0.000000] percpu: Embedded 22 pages/cpu s50392 r8192 d31528 u90112 [ 0.000000] Detected PIPT I-cache on CPU0 [ 0.000000] CPU features: detected: GIC system register CPU interface [ 0.000000] CPU features: detected: EL2 vector hardening [ 0.000000] CPU features: detected: ARM errata 1165522, 1319367, or 1530923 [ 0.000000] CPU features: detected: Spectre-BHB [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 1032192 [ 0.000000] Kernel command line: console=ttyS2,115200n8 earlycon=ns16550a,mmio32,0x02800000 mtdparts=47040000.spi.0:512k(ospi.tiboot3),2m(ospi.tispl),4m(ospi.u-boot),256k(ospi.env),1m(ospi.sysfw),256k(ospi.env.backup),57088k@8m(ospi.rootfs),256k(ospi.phypattern);47034000.hyperbus:512k(hbmc.tiboot3),2m(hbmc.tispl),4m(hbmc.u-boot),256k(hbmc.env),1m(hbmc.sysfw),-@8m(hbmc.rootfs) root=PARTUUID=9f4016a9-02 rw rootfstype=ext4 rootwait [ 0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear) [ 0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear) [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] software IO TLB: mapped [mem 0x00000000dc000000-0x00000000e0000000] (64MB) [ 0.000000] Memory: 3272356K/4194304K available (10560K kernel code, 1090K rwdata, 4096K rodata, 1792K init, 426K bss, 397660K reserved, 524288K cma-reserved) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] rcu: Preemptible hierarchical RCU implementation. [ 0.000000] rcu: RCU event tracing is enabled. [ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=256 to nr_cpu_ids=2. [ 0.000000] Trampoline variant of Tasks RCU enabled. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies. [ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2 [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0 [ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode [ 0.000000] GICv3: 960 SPIs implemented [ 0.000000] GICv3: 0 Extended SPIs implemented [ 0.000000] GICv3: Distributor has no Range Selector support [ 0.000000] GICv3: 16 PPIs implemented [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x0000000001900000 [ 0.000000] ITS [mem 0x01820000-0x0182ffff] [ 0.000000] GIC: enabling workaround for ITS: Socionext Synquacer pre-ITS [ 0.000000] ITS@0x0000000001820000: Devices Table too large, reduce ids 20->19 [ 0.000000] ITS@0x0000000001820000: allocated 524288 Devices @880800000 (flat, esz 8, psz 64K, shr 0) [ 0.000000] ITS: using cache flushing for cmd queue [ 0.000000] GICv3: using LPI property table @0x0000000880030000 [ 0.000000] GIC: using cache flushing for LPI property table [ 0.000000] GICv3: CPU0: using allocated LPI pending table @0x0000000880040000 [ 0.000000] arch_timer: cp15 timer(s) running at 200.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2e2049d3e8, max_idle_ns: 440795210634 ns [ 0.000001] sched_clock: 56 bits at 200MHz, resolution 5ns, wraps every 4398046511102ns [ 0.008414] Console: colour dummy device 80x25 [ 0.012974] Calibrating delay loop (skipped), value calculated using timer frequency.. 400.00 BogoMIPS (lpj=800000) [ 0.023645] pid_max: default: 32768 minimum: 301 [ 0.028400] LSM: Security Framework initializing [ 0.033154] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear) [ 0.040730] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear) [ 0.049542] rcu: Hierarchical SRCU implementation. [ 0.054608] Platform MSI: msi-controller@1820000 domain created [ 0.060843] PCI/MSI: /bus@100000/interrupt-controller@1800000/msi-controller@1820000 domain created [ 0.070147] EFI services will not be available. [ 0.074860] smp: Bringing up secondary CPUs ... I/TC: Secondary CPU 1 initializing I/TC: Secondary CPU 1 switching to normal world boot [ 0.088088] Detected PIPT I-cache on CPU1 [ 0.088110] GICv3: CPU1: found redistributor 1 region 0:0x0000000001920000 [ 0.088121] GICv3: CPU1: using allocated LPI pending table @0x0000000880050000 [ 0.088154] CPU1: Booted secondary processor 0x0000000001 [0x411fd080] [ 0.088204] smp: Brought up 1 node, 2 CPUs [ 0.117552] SMP: Total of 2 processors activated. [ 0.122357] CPU features: detected: 32-bit EL0 Support [ 0.127611] CPU features: detected: CRC32 instructions [ 0.141374] CPU: All CPU(s) started at EL2 [ 0.145569] alternatives: patching kernel code [ 0.150546] devtmpfs: initialized [ 0.159271] KASLR disabled due to lack of seed [ 0.163909] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns [ 0.173873] futex hash table entries: 512 (order: 3, 32768 bytes, linear) [ 0.187043] pinctrl core: initialized pinctrl subsystem [ 0.192688] DMI not present or invalid. [ 0.196929] NET: Registered protocol family 16 [ 0.202125] DMA: preallocated 512 KiB GFP_KERNEL pool for atomic allocations [ 0.209422] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations [ 0.217467] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations [ 0.225769] thermal_sys: Registered thermal governor 'step_wise' [ 0.225771] thermal_sys: Registered thermal governor 'user_space' [ 0.231909] thermal_sys: Registered thermal governor 'power_allocator' [ 0.238545] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers. [ 0.252178] ASID allocator initialised with 65536 entries [ 0.276811] HugeTLB registered 1.00 GiB page size, pre-allocated 0 pages [ 0.283680] HugeTLB registered 32.0 MiB page size, pre-allocated 0 pages [ 0.290529] HugeTLB registered 2.00 MiB page size, pre-allocated 0 pages [ 0.297377] HugeTLB registered 64.0 KiB page size, pre-allocated 0 pages [ 0.304871] cryptd: max_cpu_qlen set to 1000 [ 0.310976] vsys_3v3: supplied by vusb-main5v0 [ 0.316060] iommu: Default domain type: Translated [ 0.321179] SCSI subsystem initialized [ 0.325088] mc: Linux media interface: v0.10 [ 0.329456] videodev: Linux video capture interface: v2.00 [ 0.335084] pps_core: LinuxPPS API ver. 1 registered [ 0.340157] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> [ 0.349495] PTP clock support registered [ 0.353513] EDAC MC: Ver: 3.0.0 [ 0.357020] FPGA manager framework [ 0.360583] Advanced Linux Sound Architecture Driver Initialized. [ 0.367177] clocksource: Switched to clocksource arch_sys_counter [ 0.373500] VFS: Disk quotas dquot_6.6.0 [ 0.377532] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes) [ 0.387127] NET: Registered protocol family 2 [ 0.391864] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear) [ 0.400483] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear) [ 0.409240] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear) [ 0.417438] TCP bind hash table entries: 32768 (order: 7, 524288 bytes, linear) [ 0.425229] TCP: Hash tables configured (established 32768 bind 32768) [ 0.432025] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear) [ 0.438921] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear) [ 0.446314] NET: Registered protocol family 1 [ 0.451029] RPC: Registered named UNIX socket transport module. [ 0.457093] RPC: Registered udp transport module. [ 0.461898] RPC: Registered tcp transport module. [ 0.466701] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 0.473283] NET: Registered protocol family 44 [ 0.477828] PCI: CLS 0 bytes, default 64 [ 0.482172] hw perfevents: enabled with armv8_cortex_a72 PMU driver, 7 counters available [ 0.491165] Initialise system trusted keyrings [ 0.495803] workingset: timestamp_bits=46 max_order=20 bucket_order=0 [ 0.503940] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.510149] NFS: Registering the id_resolver key type [ 0.515327] Key type id_resolver registered [ 0.519598] Key type id_legacy registered [ 0.523718] nfs4filelayout_init: NFSv4 File Layout Driver Registering... [ 0.530566] nfs4flexfilelayout_init: NFSv4 Flexfile Layout Driver Registering... [ 0.538210] 9p: Installing v9fs 9p2000 file system support [ 0.563133] Key type asymmetric registered [ 0.567321] Asymmetric key parser 'x509' registered [ 0.572320] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 243) [ 0.579879] io scheduler mq-deadline registered [ 0.584505] io scheduler kyber registered [ 0.589139] pinctrl-single 4301c000.pinctrl: 94 pins, size 376 [ 0.595348] pinctrl-single 11c000.pinctrl: 173 pins, size 692 [ 0.602084] SError Interrupt on CPU1, code 0xbf000000 -- SError [ 0.602086] CPU: 1 PID: 1 Comm: swapper/0 Not tainted 5.10.162 #1 [ 0.602087] Hardware name: Texas Instruments J721E SK (DT) [ 0.602088] pstate: 60000005 (nZCv daif -PAN -UAO -TCO BTYPE=--) [ 0.602089] pc : j721e_pcie_probe+0x2bc/0x820 [ 0.602090] lr : j721e_pcie_probe+0x2ac/0x820 [ 0.602091] sp : ffffffc0111cbaf0 [ 0.602092] x29: ffffffc0111cbaf0 x28: ffffff880039f410 [ 0.602095] x27: ffffff880039f410 x26: 0000000000004070 [ 0.602098] x25: 0000000000000000 x24: ffffff88000d0000 [ 0.602100] x23: 0000000000000000 x22: ffffffc010ac3850 [ 0.602102] x21: ffffff880039f410 x20: 000000000000001c [ 0.602104] x19: ffffff880104bf80 x18: 0000000000000001 [ 0.602106] x17: 00000000f2e9bc92 x16: 00000000911a49fc [ 0.602109] x15: ffffff88000d0550 x14: ffffffffffffffff [ 0.602111] x13: ffff000000000000 x12: 0000000000000000 [ 0.602113] x11: 0101010101010101 x10: ffffffff7f7f7f7f [ 0.602115] x9 : 0000000000000000 x8 : 7172692d6e776f64 [ 0.602117] x7 : 0010000000000000 x6 : 0000000000000003 [ 0.602119] x5 : ffffff8800317988 x4 : ffffff880039f610 [ 0.602121] x3 : ffffff8801052500 x2 : 0000000000000000 [ 0.602123] x1 : ffffff88000d0000 x0 : 0000000000000000 [ 0.602126] Kernel panic - not syncing: Asynchronous SError Interrupt [ 0.602127] CPU: 1 PID: 1 Comm: swapper/0 Not tainted 5.10.162 #1 [ 0.602128] Hardware name: Texas Instruments J721E SK (DT) [ 0.602129] Call trace: [ 0.602131] dump_backtrace+0x0/0x1a0 [ 0.602132] show_stack+0x18/0x68 [ 0.602133] dump_stack+0xd0/0x12c [ 0.602134] panic+0x16c/0x334 [ 0.602135] nmi_panic+0x8c/0x90 [ 0.602136] arm64_serror_panic+0x78/0x84 [ 0.602137] do_serror+0x38/0x98 [ 0.602138] el1_error+0x90/0x110 [ 0.602138] j721e_pcie_probe+0x2bc/0x820 [ 0.602139] platform_drv_probe+0x54/0xa8 [ 0.602140] really_probe+0xec/0x3e0 [ 0.602142] driver_probe_device+0x58/0xb8 [ 0.602142] device_driver_attach+0x74/0x80 [ 0.602144] __driver_attach+0x64/0xf8 [ 0.602145] bus_for_each_dev+0x70/0xc0 [ 0.602146] driver_attach+0x24/0x30 [ 0.602146] bus_add_driver+0x150/0x200 [ 0.602147] driver_register+0x64/0x120 [ 0.602148] __platform_driver_register+0x48/0x58 [ 0.602149] j721e_pcie_driver_init+0x1c/0x28 [ 0.602150] do_one_initcall+0x54/0x1b8 [ 0.602151] kernel_init_freeable+0x220/0x2a0 [ 0.602152] kernel_init+0x14/0x114 [ 0.602153] ret_from_fork+0x10/0x34 [ 0.602164] SMP: stopping secondary CPUs [ 0.602165] Kernel Offset: disabled [ 0.602165] CPU features: 0x08040022,20006008 [ 0.602166] Memory Limit: none
Could you help check this case? Thanks.
