TDA4AL-Q1: GPIO0_32 can not output high level

Hi,

Thanks for this information, I will look into this and get back to you tomorrow.

Regards,

Neehar

Hi TI,

     Please help me check, thank you very much.

Hi Daohong,

Did you complete the pinmux configuration for GPIO0_32? You can refer to the TI SysConfig tool to help with this.

Regards,

Neehar

Hi,  Neehar,

      I do complete the pinmux configuration for GPIO0_32:

    pinmuxPerCfg_t gGpio0PinCfg[] =
    {
         /* MyGPIO0 -> GPIO0_14 -> AB28 */
        {
            PIN_MCASP0_AXR4, PIN_MODE(7) | \
            ((PIN_PULL_DISABLE | PIN_INPUT_ENABLE) & (~PIN_PULL_DIRECTION))
        },
        {PINMUX_END}
    };
    #define BOARD_SOC_DOMAIN_MAIN    (0)
    pinmuxModuleCfg_t gGpioPinCfg[] =
    {
        {0, TRUE, gGpio0PinCfg},
        {PINMUX_END}
    };
    pinmuxBoardCfg_t gJ721S2_MainPinmuxData[] =
    {
        {0, gGpioPinCfg},
        {PINMUX_END}
    };
    Board_pinmuxUpdate(gJ721S2_MainPinmuxData, BOARD_SOC_DOMAIN_MAIN);

    appInitGpio();



Dear Neehar ,

     Please help me check, thank you very much.

Hi Daohong,

This pinmux configuration looks correct.

What do you define PIN_MCASP0_AXR4 as?

Do you have any problems with any of the other GPIOs?

Regards,

Neehar

Dear   Neehar ，

     Please help me check, thank you very much.

Hi Daohong,

Is there a reason you use port 1 for the get and set GPIO config?

Additionally, refer to this for any clarifications: https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1126741/faq-tda4vm-using-pdk-gpio-driver.

Regards,

Neehar

Hi Daohong,

Following up, are there any updates on the issue?

Regards,
Neehar

Hi Neehar,

Is there a reason you use port 1 for the get and set GPIO config?

->

the index here is 1, so the GPIO is wkup_GPIO0

the code path:vision_apps/utils/sensors/src/app_sensors.c

Please help me check,thank you very much.

Regards,

Daohong

Hi Neehar,

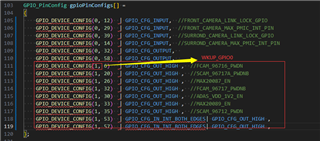

GPIO_PinConfig gpioPinConfigs[] =
{
    GPIO_DEVICE_CONFIG(0, 12)  | GPIO_CFG_INPUT,  //FRONT_CAMERA_LINK_LOCK_GPIO
    GPIO_DEVICE_CONFIG(0, 29)  | GPIO_CFG_INPUT,  //FRONT_CAMERA_MAX_PMIC_INT_PIN
    GPIO_DEVICE_CONFIG(0, 39)  | GPIO_CFG_INPUT,  //SURROND_CAMERA_LINK_LOCK_GPIO
    GPIO_DEVICE_CONFIG(0, 14)  | GPIO_CFG_INPUT,  //SURROND_CAMERA_MAX_PMIC_INT_PIN
    GPIO_DEVICE_CONFIG(0, 32)  | GPIO_CFG_OUTPUT,
    GPIO_DEVICE_CONFIG(0, 58)  | GPIO_CFG_OUTPUT,
    GPIO_DEVICE_CONFIG(1, 6)   | GPIO_CFG_OUT_HIGH ,  //FCAM_96716_PWDN
    GPIO_DEVICE_CONFIG(1, 20)  | GPIO_CFG_OUT_HIGH ,  //SCAM_96717A_PWDNB
    GPIO_DEVICE_CONFIG(1, 26)  | GPIO_CFG_OUT_HIGH ,  //MAX20087_EN
    GPIO_DEVICE_CONFIG(1, 32)  | GPIO_CFG_OUT_HIGH ,  //FCAM_96717_PWDNB
    GPIO_DEVICE_CONFIG(1, 30)  | GPIO_CFG_OUT_HIGH ,  //ADAS_VDD_1V2_EN
    GPIO_DEVICE_CONFIG(1, 33)  | GPIO_CFG_OUT_HIGH ,  //MAX20089_EN
    GPIO_DEVICE_CONFIG(1, 35)  | GPIO_CFG_OUT_HIGH ,  //SCAM_96712_PWDN
    GPIO_DEVICE_CONFIG(1, 53)  | GPIO_CFG_IN_INT_BOTH_EDGES| GPIO_CFG_OUT_HIGH ,
    GPIO_DEVICE_CONFIG(1, 57)  | GPIO_CFG_IN_INT_BOTH_EDGES| GPIO_CFG_OUT_HIGH ,
};

/* GPIO Driver call back functions */
GPIO_CallbackFxn gpioCallbackFunctions[] =
{
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
    NULL,
};
GPIO_v0_Config GPIO_v0_config =
{
    gpioPinConfigs,
    gpioCallbackFunctions,
    sizeof(gpioPinConfigs) / sizeof(GPIO_PinConfig),
    sizeof(gpioCallbackFunctions) / sizeof(GPIO_CallbackFxn),
    0x8U
};


/* ========================================================================== */
/*                         Structure Declarations                             */
/* ========================================================================== */

static int32_t appSetupI2CInst(uint8_t i2cInst);
static int32_t appCloseI2CInst(void);
static int32_t appOv2775Config(AppSensorCmdParams *prms);
static int32_t appImx390Config(AppSensorCmdParams *prms);

int32_t appRemoteServiceSensorHandler(char *service_name, uint32_t cmd,
    void *prm, uint32_t prm_size, uint32_t flags);

/* ========================================================================== */
/*                          Function Declarations                             */
/* ========================================================================== */

static void appInitGpio(void);

/* ========================================================================== */
/*                            Global Variables                                */
/* ========================================================================== */

static I2C_Handle gI2cHandle = NULL;


/* ========================================================================== */
/*                  Internal/Private Function Declarations                    */
/* ========================================================================== */

void appInitGpio(void)
{
    GPIO_v0_HwAttrs gpio_cfg;
    GPIO_socGetInitCfg(1, &gpio_cfg);
    gpio_cfg.baseAddr = CSL_WKUP_GPIO0_BASE;

    gpio_cfg.intCfg[53].eventId = 0;
    gpio_cfg.intCfg[53].intcMuxNum = INVALID_INTC_MUX_NUM;
    gpio_cfg.intCfg[53].intcMuxInEvent = 0;
    gpio_cfg.intCfg[53].intcMuxOutEvent = 0;

    gpio_cfg.intCfg[57].eventId = 0;
    gpio_cfg.intCfg[57].intcMuxNum = INVALID_INTC_MUX_NUM;
    gpio_cfg.intCfg[57].intcMuxInEvent = 0;
    gpio_cfg.intCfg[57].intcMuxOutEvent = 0;

    GPIO_socSetInitCfg(1, &gpio_cfg);

    GPIO_init();
    GPIO_disableInt(13);
    GPIO_disableInt(14);
}

/* ========================================================================== */
/*                          Function Definitions                              */
/* ========================================================================== */
static TimerP_Params   timerParams;
static TimerP_Handle  timerHandle = NULL;
static uint8_t timer_count = 0;
static void timerFxn(uintptr_t arg)
{
    if(timer_count == 0){
        GPIO_write(4, 0);
        GPIO_write(5, 0);
        timer_count++;
    }
    else if(timer_count == 9)
    {
          GPIO_write(4, 1);
          GPIO_write(5, 1);
          timer_count = 0;
    }else
       timer_count++;
}

int32_t appGpioInit(void)
{
    pinmuxPerCfg_t gGpio0PinCfg[] =
    {
        /* MyGPIO0 -> GPIO0_12 -> T26 */
        {
            PIN_MCAN12_RX, PIN_MODE(7) | \
            ((PIN_PULL_DISABLE | PIN_INPUT_ENABLE) & (~PIN_PULL_DIRECTION))
        },

        /* MyGPIO0 -> GPIO0_29 -> R28 */
        {
            PIN_MCAN2_TX, PIN_MODE(7) | \
            ((PIN_PULL_DISABLE | PIN_INPUT_ENABLE) & (~PIN_PULL_DIRECTION))
        },

        /* MyGPIO0 -> GPIO0_39 -> T24 */
        {
            PIN_MCASP0_AXR11, PIN_MODE(7) | \
            ((PIN_PULL_DISABLE | PIN_INPUT_ENABLE) & (~PIN_PULL_DIRECTION))
        },

         /* MyGPIO0 -> GPIO0_14 -> AB28 */
        {
            PIN_MCASP0_ACLKX, PIN_MODE(7) | \
            ((PIN_PULL_DISABLE | PIN_INPUT_ENABLE) & (~PIN_PULL_DIRECTION))
        },

        {
            PIN_MCASP0_AXR4, PIN_MODE(7) | \
            ((PIN_PULL_DISABLE | PIN_INPUT_ENABLE) & (~PIN_PULL_DIRECTION))
        },

        /* MyMMCSD1 -> MMC1_SDCD -> AE25 */
        {
            PIN_TIMER_IO0, PIN_MODE(7) | \
            ((PIN_PULL_DISABLE | PIN_INPUT_ENABLE) & (~PIN_PULL_DIRECTION))
        },
        {PINMUX_END}
    };
    #define BOARD_SOC_DOMAIN_MAIN    (0)
    pinmuxModuleCfg_t gGpioPinCfg[] =
    {
        {0, TRUE, gGpio0PinCfg},
        {PINMUX_END}
    };
    pinmuxBoardCfg_t gJ721S2_MainPinmuxData[] =
    {
        {0, gGpioPinCfg},
        {PINMUX_END}
    };
    Board_pinmuxUpdate(gJ721S2_MainPinmuxData, BOARD_SOC_DOMAIN_MAIN);

    appInitGpio();

   /* Initialize timer parameters */
    TimerP_Params_init(&timerParams);

    /* Configure periodic timer for 0.00333 sec*/
    timerParams.period = 3333;  /*  0.00333 */
    timerParams.periodType = TimerP_PeriodType_MICROSECS;
    timerParams.startMode = TimerP_StartMode_USER;
    timerParams.runMode = TimerP_RunMode_CONTINUOUS;

    timerHandle = TimerP_create(TimerP_ANY, (TimerP_Fxn)&timerFxn, &timerParams);

    if (timerHandle == NULL) {
       appLogPrintf("ERR: TimerP_create failed\n");
    }
    else
        (void)TimerP_start(timerHandle); /* start the timer */

    GPIO_write(4, 1);
    GPIO_write(5, 1);

    //GPIO_write(0, GPIO_PIN_HIGH);
    appLogPrintf(
            " appGpioInit   Done!!!\n");
    return 0;
}

Hi Neehar,

k3conf read 0x11c080, value is 0x50000.

Please help me check,thank you very much.

Hi Daohong,

Was this resolved?

Regards,

Neehar
