SK-AM62A-LP: how to boot from SPI-NAND

Hello ，

Thanks for your reply!

I followed the link steps, but after Flashing OSPI-NAND, I can't continue Booting from OSPI-NAND.
I don't understand BOOTMODE [15:0] = 0003 OR 0103.

so, I configure BOOTMODE pins as XSPI boot mode according to AM62Ax Academy as picture blow. But it didn't work.

How can I configure BOOTMODE pins to reach the next step Booting from OSPI-NAND as the FAQ link shows.

Hello,
Can we try the BOOTMODE[15:0] as in the photo?

Best,
-Hong

Thanks for your reply!

Using the BOOTMODE above, I can boot from ospi now.

I can set uboot environment mmcdev & bootpart to choose where to start kernel, mmc0 or mmc1.

but how can I start kernel from ospi , could you please give me some introduction?

Thanks for the update, and good to know you're able to boot u-boot from SPI-NAND on your board.
This is one early e2e on ubi/ubifs on OSPI-NOR on AM64x Linux SDK for your reference.
e2e.ti.com/.../3769546
In the meantime, let me check if we have instructions on ubi/ubifs on SPI-NAND, and will share if available.
Best,
-Hong

hello, Hong!

refer to the link you provide, I still have some problems about booting kernel from ospi.

Here are my steps:

1.create ubi image

I use AM62a provide filesystem tisdk-edgeai-image-am62axx-evm.tar.xz as my base rootfs. I first unzip it and use the two commands below to make a ubi image.

mkfs.ubifs -r tiny -o tiny.ubifs -m 4096 -e 253952 -c 383 -v
ubinize -o tiny.ubi -m 4096 -s 4096 -p 256KiB ubinize.cfg -v

in the refer link, you used command blow.

- "mkfs.ubifs -r sdk-tiny-fs -o am6-sdk-tiny-fs.ubifs -m 16 -e 262016 -c 143 -v"
- "ubinize -o am6-sdk-tiny-fs.ubi -m 16 -s 16 -p 256KiB ubinize.cfg -v"

I changed -m 16 to 4096 and -c 143 to 383 as the spi_nand mtdinfo shows in my board.

mtd5
Name: ospi_nand.rootfs
Type: nand
Eraseblock size: 262144 bytes, 256.0 KiB
Amount of eraseblocks: 383 (100401152 bytes, 95.7 MiB)
Minimum input/output unit size: 4096 bytes
Sub-page size: 4096 bytes
OOB size: 128 bytes
Character device major/minor: 90:10
Bad blocks are allowed: true
Device is writable: true

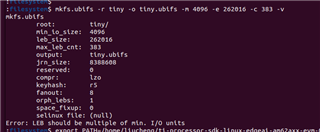

I also changed -e 262016 to 253952 because of the error "Error: LEB should be multiple of min. I/O units"

after that I create a ubi image.

2.burn the image to ospi rootfs mtd

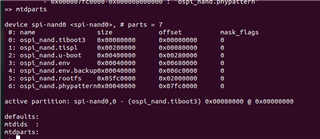

I placed image in my TF card and used the commands blow to burning the ubi image to rootfs.

load mmc 1:2 ${loadaddr}  tiny.ubi

mtd erase spi-nand0 0x2000000 0x5fc0000.

mtd write spi-nand0 ${loadaddr} 0x2000000 ${filesize}

after that I am burning it to mtd5 ospi_nand_rootfs

3.try to boot from ospi

run args_all

run args_ospi_nand

setenv boot ospi_nand

boot

=> run args_all

=> run args_ospi_nand

=> setenv boot ospi_nand

=> boot

switch to partitions #0, OK

mmc0(part 0) is current device

SD/MMC found on device 0

Failed to load 'boot.scr'

Can't set block device

UBI partition 'ospi_nand.rootfs' already selected

## Error: "main_cpsw0_qsgmii_phyinit" not defined

Loading file '/boot/Image' to addr 0x82000000...

Done

Loading file '/boot/dtb/ti/k3-am62a7-sk.dtb' to addr 0x88000000...

Done

Working FDT set to 88000000

New length 253 < existing length 55627, ignoring

## Flattened Device Tree blob at 88000000

   Booting using the fdt blob at 0x88000000

Working FDT set to 88000000

   Loading Device Tree to 000000008ffef000, end 000000008ffff94a ... OK

Working FDT set to 8ffef000



Starting kernel ...
