TDA4VM: CAN frame Transmission request pending

Hari krishna Kaki
Intellectual 355 points
Part Number: TDA4VM

Hello TI support,

I am working with a simple demo can application to transmit a CAN frame cyclically on every 1second.

Interrupt based configuration and HW is not transmitting 1st frame which is requested to transmit.

Due to non transmission of 1st frame, consecutive frames are not getting transmitted and Can in BUSY state.

All Can_Write function requests are returned with Can Busy.

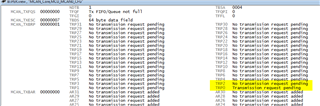

I have observed during debugging, Transmission request pending.

Could you please let me know, any pointers to debug and fix the issue.

Attached Can, Dio, & Mcu configuration files.

For the CAN PORT initialization, we have taken code from mcal demo.

Kind regards,

Hari

Can_Port_Init.h

Fullscreen Can_Port_Init.c Download
/* This source file for CAN Port Initialaztion of TDA4 target*/



/*==================[inclusions]============================================*/

#include <Std_Types.h>                  /* AUTOSAR standard types        */
#include <TSAutosar.h>                  /* EB specific standard types    */
#include <Can_Port_Init.h>              /* port initialization*/


void CanApp_PlatformInit()
{
uint32 regVal = 0U;
    /* Unlock lock key registers for Partition 7: IO PAD
       configuration registers in MAIN_CTRL_MMR */
    /* write Partition 7 Lock Key 0 Register */
    LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE + 0x1D008, 0x68EF3490);
    /* write Partition 7 Lock Key 1 Register */
    LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE + 0x1D00C, 0xD172BC5A);
    /* Check for unlock */
    regVal = LLD_REG32_RD(CSL_WKUP_CTRL_MMR0_CFG0_BASE + 0x1D008);
    while ((regVal & 0x1) != 0x1U)
    {
        regVal = LLD_REG32_RD(CSL_WKUP_CTRL_MMR0_CFG0_BASE + 0x1D008);
    }

    /* Unlock lock key registers for Partition 7: IO PAD
       configuration registers in MAIN_CTRL_MMR */
    /* write Partition 7 Lock Key 0 Register */
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1D008, 0x68EF3490);
    /* write Partition 7 Lock Key 1 Register */
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1D00C, 0xD172BC5A);
    /* Check for unlock */
    regVal = LLD_REG32_RD(CSL_CTRL_MMR0_CFG0_BASE + 0x1D008);
    while ((regVal & 0x1) != 0x1U)
    {
        regVal = LLD_REG32_RD(CSL_CTRL_MMR0_CFG0_BASE + 0x1D008);
    }

    /* Unlocking done */
    /* Below code will be replaced by Port module in further releases */
    /* MCU MCAN 0 Tx PAD configuration */
    regVal = 0x60000U;
    LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE + 0x1C0A8U, regVal);
    /* MCU MCAN 0 Rx PAD configuration */
    regVal = 0x60000U;
    LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE + 0x1C0ACU, regVal);
    /* MCU MCAN 1 Tx PAD configuration */
    regVal = 0x60000U;
    LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE + 0x1C0C0U, regVal);
    /* MCU MCAN 1 Rx PAD configuration */
    regVal = 0x60000U;
    LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE + 0x1C0C4U, regVal);
    /* MAIN MCAN 0 Tx PAD configuration */
    regVal = 0x60000U;
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1C20CU, regVal);
    /* MAIN MCAN 0 Rx PAD configuration */
    regVal = 0x60000U;
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1C208U, regVal);
    /* MAIN MCAN 4 Tx PAD configuration */
    regVal = 0x60006U;
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1C020U, regVal);
    /* MAIN MCAN 4 Rx PAD configuration */
    regVal = 0x60006U;
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1C024U, regVal);
    /* MAIN MCAN 9 Tx PAD configuration */
    regVal = 0x60006U;
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1C0CCU, regVal);
    /* MAIN MCAN 9 Rx PAD configuration */
    regVal = 0x60006U;
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1C0D0U, regVal);
    /* MAIN MCAN 11 Tx PAD configuration */
    regVal = 0x60006U;
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1C11CU, regVal);
    /* MAIN MCAN 11 Rx PAD configuration */
    regVal = 0x60006U;
    LLD_REG32_WR(CSL_CTRL_MMR0_CFG0_BASE + 0x1C120U, regVal);

    /* Take MCAN transceivers out of STB mode i.e NORMAL Mode */
    CanApp_EnableTransceivers();
}

void CanApp_EnableTransceivers(void)
{
 uint32 regVal = 0U;
    Dio_LevelType dioPinLevel[2U];

    /* Take MCAN transceiver out of STB mode for MCU MCAN0 */
    /* Below code will be replaced by Port module in further releases */
    /* Pin mux configuration of Dio Pin 355 */
    regVal = 0x08050007U;
    LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE + CSL_WKUP_CTRL_MMR_CFG0_PADCONFIG44, regVal);
    /* Set Pin direction to output */
    regVal = LLD_REG32_RD(CSL_WKUP_GPIO0_BASE + 0x10U);
    regVal &= (~(1U << 0x0U));
    LLD_REG32_WR(CSL_WKUP_GPIO0_BASE + 0x10U, regVal);
    /* Drive Pin to High */
    Dio_WriteChannel(CAN_TRCV_MCU_MCAN_0, STD_HIGH);
     /* Read Pin level */
    dioPinLevel[1U] = Dio_ReadChannel(CAN_TRCV_MCU_MCAN_0);
    /*Read back the pin levels to ensure transceiver is enabled*/
    if (STD_HIGH != dioPinLevel[1U])
    {
        while(1);
    }
    else
    {
        regVal = 0x08050007U;
        LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE +
            CSL_WKUP_CTRL_MMR_CFG0_PADCONFIG38, regVal);
        /* Set Pin direction to output */
        regVal = LLD_REG32_RD(CSL_WKUP_GPIO0_BASE + 0x38U);
        regVal &= (~(1U << 0x16U));
        LLD_REG32_WR(CSL_WKUP_GPIO0_BASE + 0x38U, regVal);
        /* Drive Pin to High */
        Dio_WriteChannel(54U, STD_HIGH);
         /* Read Pin level */
        dioPinLevel[1U] = Dio_ReadChannel(54U);
        /*Read back the pin levels to ensure transceiver is enabled*/
        if (STD_HIGH != dioPinLevel[1U])
        {
            while(1);
        }
    }
    /* Take MCAN transceiver out of STB mode for MCU MCAN1 */
    /* Below code will be replaced by Port module in further releases */
    /* Pin mux configuration of Dio Pin 2 */
    regVal = 0x08050007U;
    LLD_REG32_WR(CSL_WKUP_CTRL_MMR0_CFG0_BASE + CSL_WKUP_CTRL_MMR_CFG0_PADCONFIG46, regVal);
    /* Set Pin direction to output */
    regVal = LLD_REG32_RD(CSL_WKUP_GPIO0_BASE + 0x10U);
    regVal &= (~(1U << 0x2U));
    LLD_REG32_WR(CSL_WKUP_GPIO0_BASE + 0x10U, regVal);
    /* Drive Pin to Low */
    Dio_WriteChannel(CAN_TRCV_MCU_MCAN_1, STD_LOW);
     /* Read Pin level */
    dioPinLevel[1U] = Dio_ReadChannel(CAN_TRCV_MCU_MCAN_1);

    /*Read back the pin levels to ensure transceiver is enabled*/
    if (STD_LOW != dioPinLevel[1U])
    {
         while(1);/*
        " Error in Enabling CAN Transceiver MCU MCAN1!!!\n");*/
    }

    return;
}

Fullscreen Mcu_PBcfg.c Download
/*
*
