TDA4VH-Q1: How can I connect a CSI2 camera directly(i.e. no FPDLink) with J784S4 EVM?

Hi,

Please expect a delay in response due to holiday in US on 27 May 2024.

Regards,

Nikhil

Hi Song,

Song Wu said:

but how can we connect a MIPI FPC camera(e.g.  OV5640)?

EVM has 40-pin Samtech interface and you may use a mipi fpc to Samtech convertor.
I am not sure where you can get such connectors.
Copying my friend Brijesh Jadav for his comments.

Hi Gang,

Thank you for your reply, it makes sense. We would appreciate it if you could let us know where we can get/purchase the convertor.

Hi,

Please refer the documentation below regarding this sensor

2. Getting started — Processor SDK Linux Edge AI for AM69A Documentation

you can order a Samtec extender cable from here, https://www.samtec.com/products/hqcd

Regards,

Nikhil

Hi Nikhil,

Is that extender cable from FPC to Samtech 40-pin?

Gang Hua said:

Is that extender cable from FPC to Samtech 40-pin?

Hi Nikhil,

This is also the question that I would like to ask, could you please point out which extender cable at the link should we use? Thanks!

Regards,

Song

Hi Song,

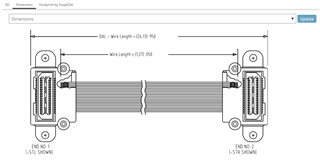

As per the above link, it is mentioned that "For added flexibility you can order a Samtec extender cable from here, https://www.samtec.com/products/hqcd"

Could you please check if this is the one you are looking for?

Regards,

Nikhil

Hi Nikhil,

Thank you for your replies. But I am still not sure if it is what I need after checking the link you provided carefully.

I believe what I need is a converter which is able to convert a Samtech interface to MIPI FPC interface, so that I can use the sensor OV5640 on J784S4XEVM. But the link you provided seems to point to this one which doesn't have a MIPI FPC interface?

Thanks,

Song

Hi Nikhil,

OK, So  it seems there is no a link for us to buy the converter directly.

I would like to double-check the the converter needed for J784S4XEVM MIPI sensor connection  is FPC to Samtech 40-pin?

Thanks,

Song
