TDA4VH-Q1: MMC1_CLKLB configuration query

jingwen Shi

Part Number: TDA4VH-Q1
Other Parts Discussed in Thread: SYSCONFIG

Tool/software:

hi expert,

My project using TDA4 VH + SDK 9.1.

When we test our projct HW board, we found that, for pin mux configuration "MMC1_CLKLB" in "J784S4_pinmux_data.c", we cannot find the configure item in sysconfig tool which provide by TI official, but when we try to remove this configuration item, main domain SD card boot mode will be affected.

So, my question is:

1. What is the function of this pin mux configuration item?

2. where can we get configuration information for this pin mux item and in which sysconfig tool module we can configure this pin mux item?

3. what is the affection machnism to my SD card boot mode which produced by MMC1_CLKLB?

thanks

over 1 year ago

0 Parth Nagpal over 1 year ago

TI__Mastermind 42135 points

Hi,

I'll check this on my end and get back.

Can you please share which version of the sysconfig are you using?

Regards,
Parth

0 jingwen Shi over 1 year ago in reply to Parth Nagpal

Prodigy 80 points

We are using SysConfig tool version 1.20.0+3587.

0 jingwen Shi over 1 year ago in reply to Parth Nagpal

Prodigy 80 points

hi,

Have you complete your check? May I know your check result?

Thanks

0 Parth Nagpal over 1 year ago in reply to jingwen Shi

TI__Mastermind 42135 points

Hi,

I did check this internally.

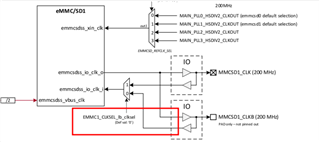

This is a loopback clock. It is used to calculate the circuit delay

Since this is not pinned out, I believe that's why it was not part of the syscfg. But I believe ideally it should be there in syscfg, Will take this as a bud within the team.

Regards,
Parth
