AM625SIP: Self heating of AM625PSIP

Alex Paul

Expert 5144 points

Part Number: AM625SIP

Tool/software:

Hi Experts,

Considering I will qualify my design for up to 85 °C when using AM625P.

How do I have to calculate the junction temperature ?

Are my assumptions correct that there will be 2 parallel thermal resistances (Rjunction to board + Rjunction to air)

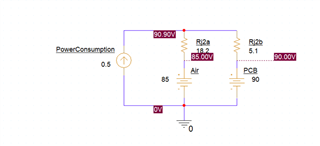

so that the following simulation correct ?

Kind regards,

Alex

over 1 year ago

0 Kallikuppa Sreenivasa over 1 year ago

TI__Guru**** 192199 points

Hello Alex,

Thank you for the query.

Let me assign to the expert to support.

Regards,

Sreenivasa

0 Alex Paul over 1 year ago in reply to Kallikuppa Sreenivasa

TI__Expert 5144 points

Hi experts,

Any update on the query above ?

Regards,
Alex

0 Alex Paul over 1 year ago in reply to Alex Paul

TI__Expert 5144 points

Any update ?

0 Christopher Roberts over 1 year ago in reply to Alex Paul

TI__Genius 9470 points

Alex,

There are many resources available about how to estimate junction temperature. I am linking a TI app note that is for a difference component, but the principles hold true: https://www.ti.com/lit/pdf/slua844

Thermal resistance characteristics for the AM62SIP are defined in the datasheet: https://www.ti.com/lit/gpn/am625sip

Some of the values for thermal resistnace in this simulation seem like they need modification to match what is documented in the datasheet.

Thanks,

Chris
