AM62A3: About RGB value cliped after CCM in tidss

Ding Y

Part Number: AM62A3

Tool/software:

Dear TI experts，

In the CCM of tidss module, if we set the CCM which will cause the RGB value to exceed the range of 0~255, such as -5 or 260. I would like to know in this case the RGB value after CCM will be clipped to 0~255? Or there will be other processing logic?

Best,

over 1 year ago

0 Aparna Patra over 1 year ago

TI__Genius 12980 points

Hello,

Thanks for your query, I will loop in the DSS expert and get back with updates,

Regards,
Aparna

0 Ding Y over 1 year ago in reply to Aparna Patra

Prodigy 245 points

Hello,

Is there a conclusion on this question?

Best,

0 Aparna Patra over 1 year ago in reply to Ding Y

TI__Genius 12980 points

Hello,

Could you confirm if the query refers to MCU+ SDK or Linux SDK?

Regards,
Aparna

0 Ding Y over 1 year ago in reply to Aparna Patra

Prodigy 245 points

Hi，

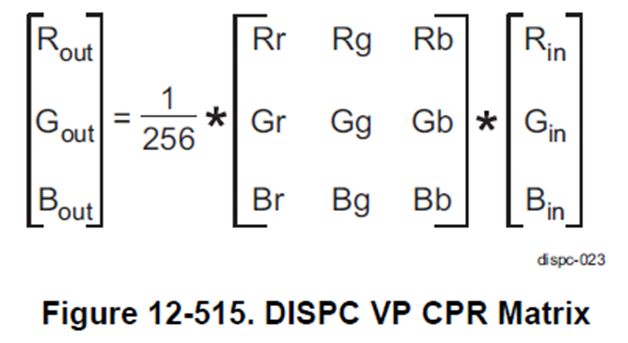

The CCM I mentioned refers to the CPR function in the Video Port Output of the DSS module. I'm sorry if it bothers you. I think it's part of the Linux SDK. The following picture is the mathematical formula of CPR, please refer to.

Best,

0 Aparna Patra over 1 year ago in reply to Ding Y

TI__Genius 12980 points

Hello,

Thanks for sharing. I will route the query to our DSS expert on the Linux SDK for comments.

Regards,
Aparna

0 Krunal Bhargav34 over 1 year ago in reply to Aparna Patra

TI__Mastermind 44585 points

Hi,

It will be clipped to 0-255 range.

Regards,
Krunal
