TDA2E: TDA2x Ethernet direct connection problem

Chu Allen

Part Number: TDA2E
Other Parts Discussed in Thread: TDA2

Tool/software:

Dears,

Our project uses TDA2x and TC397 Ethernet direct connection, with TDA2x internal switch as shown in the screenshot.

My question is whether the connection between TDA itself and the external environment should directly use route A or route B?

over 1 year ago

0 Doredla Sudheer Kumar over 1 year ago

TI__Guru 63810 points

Hi,

Is it related to H/W Schematic Query? If so, can you please share the schematics with us for review.

Best Regards,
Sudheer

0 Chu Allen over 1 year ago in reply to Doredla Sudheer Kumar

Intellectual 790 points

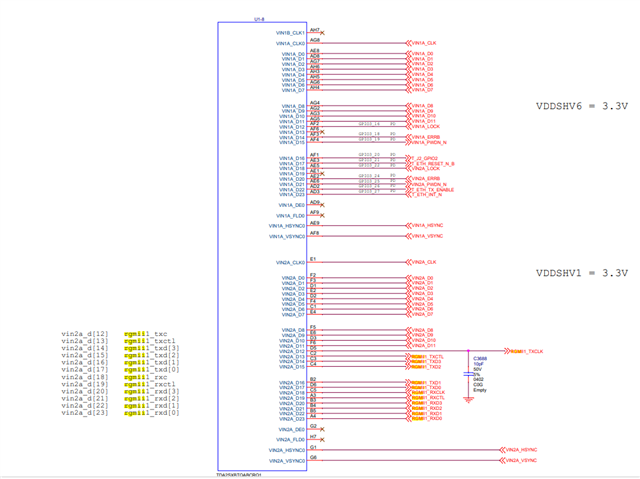

H/W Schematic Below.

0 Doredla Sudheer Kumar over 1 year ago in reply to Chu Allen

TI__Guru 63810 points

Hi,

From the schematic it seems RGMII1 of TDA2 is connected to Marvell PHY.

Best Regards,
Sudheer

0 Chu Allen over 1 year ago in reply to Doredla Sudheer Kumar

Intellectual 790 points

Hi,

TDA and MCU is exchanging data through line B? RGMII 0?

0 Doredla Sudheer Kumar over 1 year ago in reply to Chu Allen

TI__Guru 63810 points

HI,

Chu Allen said:
TDA and MCU is exchanging data through line B? RGMII 0?

Yes, from above TDA2 RGMII0 is connected to TC397.

As TDA2 has two Port Gigabit Ethernet Switch out of which Port-1 (RGMII0) connected TC397, Port-2 (RGMII1) is connected to 88Q1010 Marvell PHY.

Best Regards,
Sudheer
