TDA4VH-Q1: SGMII expansion board

Hi,

Tony Tang said:

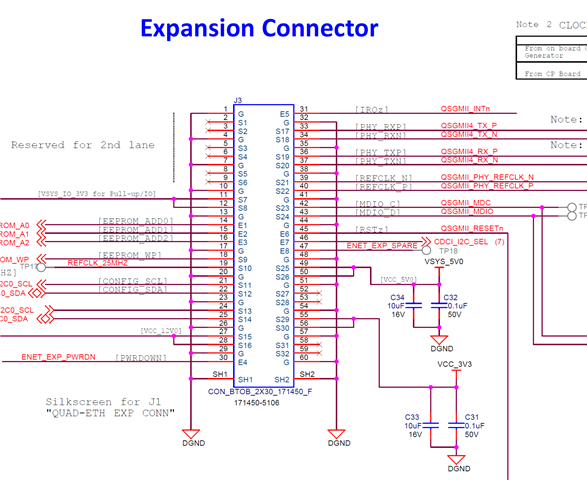

#1. Routed SGMII 5 and SGMII 6 to ENET expansion connector, but is reserved on Daughter Card, Is there a Daughter card has SGMII Ethernet PHY like DP83869 available? Customer would like to verify SGMII with DP83869 on TDA4VH.

There is no SGMII PHY daughter card available on ti.com to customers.
So, out of Box SDK SGMII is not enabled. We need to change the Ethernet application (EthFw) for RTOS application, and Device tree, SerDes Driver & CPSW Driver for Native Linux Driver.

Inhouse it was validated using bridge connector by connecting two EVMs back to back in MAC to MAC Mode form RTOS & Linux. Also, have SGMII daughter card for inhouse usage.

Tony Tang said:

#2. How TI verified SGMII ENET feature? especially how did TI verified DP83969 for the errata i2362 — 10-100M SGMII: Marvell PHY does not ignore the preamble byte resulting in link failure

This is an update from HW IP team, as MAC sending wrong preambles if any PHY required proper preamble it will fail in setup Link.

Best Regards,
Sudheer

Hi Sudheer,

is DP83867 also compatible with TDA4 SGMII?

Hi,

Tony Tang said:

is DP83867 also compatible with TDA4 SGMII?

DP83867 supports only MII, RMII, RGMII. Please refer to product page.
https://www.ti.com/product/DP83867IR

DP83869 Supports SGMII. Please refer to below product page.
https://www.ti.com/product/DP83869HM

Best Regards,
Sudheer

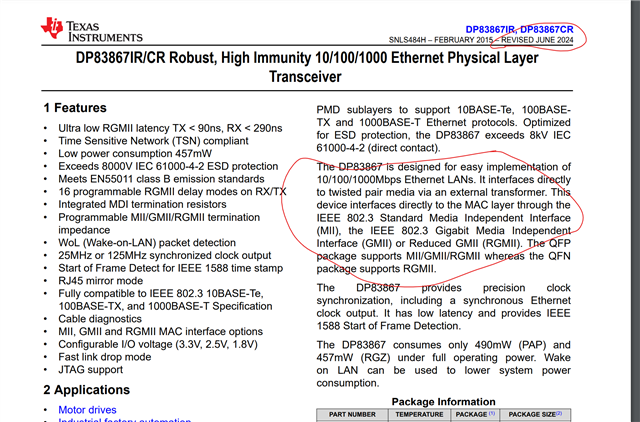

DP83867E/IS/CS has SGMII, too many sub part number of DP83867

Hi,

Please refer to latest TD from Soc Page.
https://www.ti.com/lit/ds/symlink/dp83867ir.pdf?ts=1722510895564&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FDP83867IR



Further Queries, Please raise new E2E (in Interface Forum), PHY team will address the Queries.

Best Regards,
Sudheer

The IS, CS, E version should have SGMII

Hi,

Tony Tang said:

The IS, CS, E version should have SGMII

Yes, seems like above variants has SGMII Support. You may use with TDA4.

Note:
We haven't tested with DP83867.

Best Regards.
Sudheer

Hi Kumar,

Please help to involve the PHY BU to confirm if DP83867 ignore preamble like DP83869?

9Hi,

Tony Tang said:

Please help to involve the PHY BU to confirm if DP83867 ignore preamble like DP83869?

Can you post query with D983867 Part number in E2E, It will get assigned to PHY forum. PHY will provide the confirmation.


FYI, I have seen pin level in DP83867CS/IS/E where we have SGMII Pins available, where as in others variants those pin mapping is not available.

Best Regards,
Sudheer
