PROCESSOR-SDK-AM62X: AM62X Boot flow process

Hi,

Thanks for your reply.

we have gone through the flash document and try to flash the Application using different sbl images for SK-AM62. below error messages reported for each image flash:

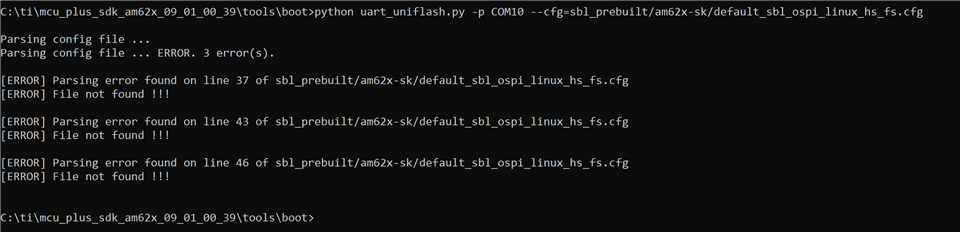

For default_sbl_ospi_linux_hs_fs.cfg



and for default_sbl_ospi_hs_fs.cfg



We are using GP type device.
Our requirement is to perform standalone Application execution for this we expect that the SBL from TI should give control to the start address of our Application and the execution of the Application should happen.

Could you please provide your feedback on this on how to fix it?

BR,
Shubham

Hi,

Thanks for your inputs.

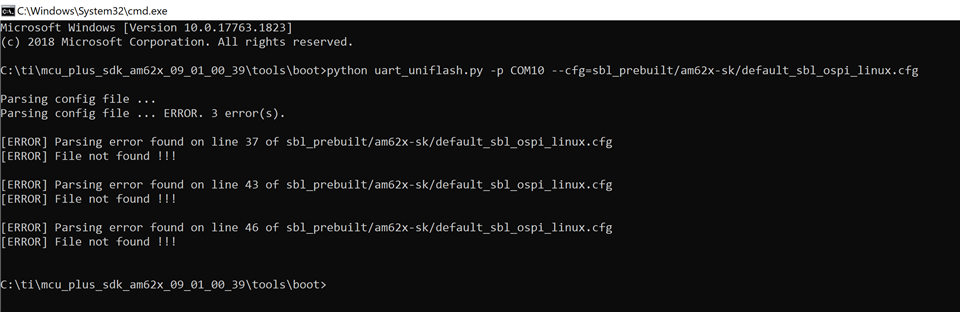

We tried to flash "default_sbl_ospi_linux.cfg" and below error message is reported:

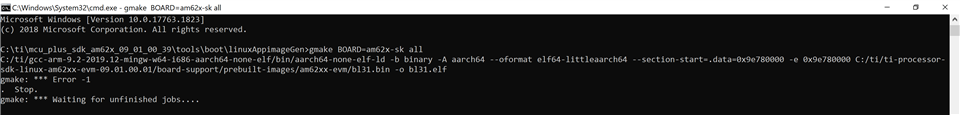

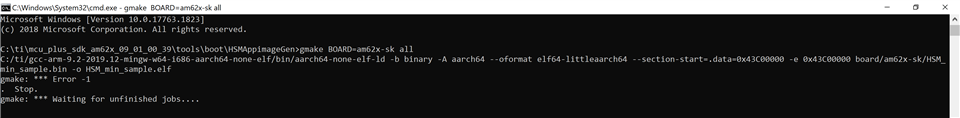

When we tried to build "hsm.appimage", "linux.appimage" and "u-boot.img" as needed by "default_sbl_ospi_linux.cfg", below error message is reported:

Could you please let us know the steps to build required elf or share the elf?

BR,

Shubham

Hi,

Thanks for your inputs.

We are able to flash the image "default_sbl_ospi_linux.cfg" successfully after renaming the shared images as hsm.appimage.hs_fs --> hsm.appimage and linux.appimage.hs_fs --> linux.appimage.

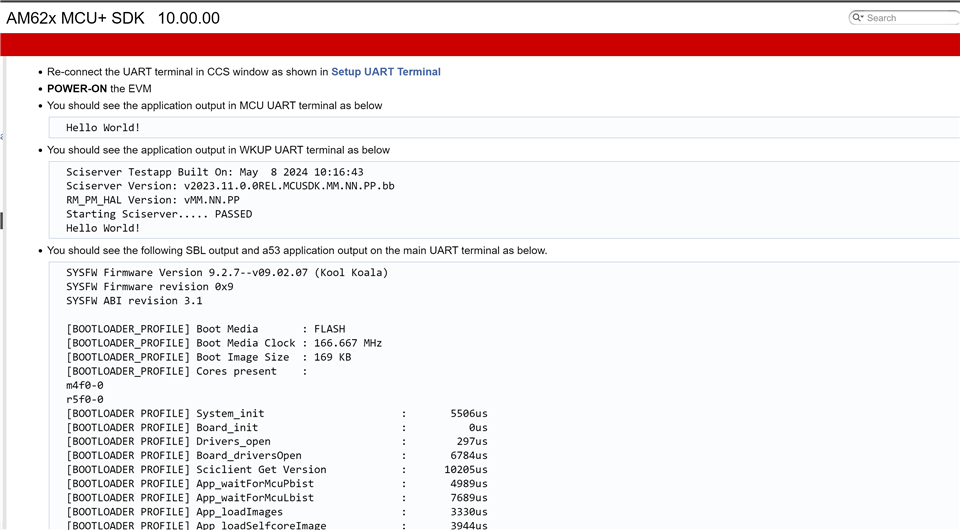

after changing the EVM Boot mode to OSPI NOR Boot mode, expected output as per software-dl.ti.com/.../GETTING_STARTED_FLASH.html:

but we are not able to see any Application output on UART terminal.

Could you please let us know if we are missing something?

BR,

Shubham

Hi,

Shubham Goel said:

We are able to flash the image "default_sbl_ospi_linux.cfg" successfully after renaming the shared images as hsm.appimage.hs_fs --> hsm.appimage and linux.appimage.hs_fs --> linux.appimage.

Can you please share these flashing logs to verify if the correct images are flashed?

Thanks!

Hi,

Please find logs of sbl image flash:

{code}

Microsoft Windows [Version 10.0.17763.1823]
(c) 2018 Microsoft Corporation. All rights reserved.

C:\ti\mcu_plus_sdk_am62x_09_01_00_39\tools\boot>python uart_uniflash.py -p COM10 --cfg=sbl_prebuilt/am62x-sk/default_sbl_ospi_linux.cfg

Parsing config file ...
Parsing config file ... SUCCESS. Found 10 command(s) !!!

Executing command 1 of 10 ...
Found flash writer ... sending sbl_prebuilt/am62x-sk/sbl_uart_uniflash_stage1.release.tiimage
Sent flashwriter sbl_prebuilt/am62x-sk/sbl_uart_uniflash_stage1.release.tiimage of size 245665 bytes in 23.95s.

Executing command 2 of 10 ...
Command arguments : --file=../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage --operation=flash --flash-offset=0x0
Sending ../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage: 123480bytes [00:13, 10719.01Sending ../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage: 123481bytes [00:13, 10719.01Sending ../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage: 123482bytes [00:14, 10719.01Sending ../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage: 123483bytes [00:14, 10719.01Sending ../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage: 123484bytes [00:14, 10719.01 Sent ../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage of size 122772 bytes in 14.88s.
[STATUS] SUCCESS !!!

Executing command 3 of 10 ...
Command arguments : --operation=flash-phy-tuning-data
Sent flash phy tuning data in 2.99s.
[STATUS] SUCCESS !!!

Executing command 4 of 10 ...
Command arguments : --file=sbl_prebuilt/am62x-sk/sbl_ospi_linux_stage1.release.tiimage --operation=flash --flash-offset=0x0
Sent sbl_prebuilt/am62x-sk/sbl_ospi_linux_stage1.release.tiimage of size 287009 bytes in 29.84s.
[STATUS] SUCCESS !!!

Executing command 5 of 10 ...
Command arguments : --file=../../examples/drivers/boot/sbl_ospi_linux_multistage/sbl_ospi_linux_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_ospi_linux_stage2.release.appimage --operation=flash --flash-offset=0x80000
Sent ../../examples/drivers/boot/sbl_ospi_linux_multistage/sbl_ospi_linux_stage2/am62x-sk/r5fss0-0_nortos/ti-arm-clang/sbl_ospi_linux_stage2.release.appimage of size 136864 bytes in 15.73s.
[STATUS] SUCCESS !!!

Executing command 6 of 10 ...
Command arguments : --file=../../examples/drivers/ipc/ipc_rpmsg_echo_linux/am62x-sk/m4fss0-0_freertos/ti-arm-clang/ipc_rpmsg_echo_linux.release.appimage --operation=flash --flash-offset=0x100000
Sent ../../examples/drivers/ipc/ipc_rpmsg_echo_linux/am62x-sk/m4fss0-0_freertos/ti-arm-clang/ipc_rpmsg_echo_linux.release.appimage of size 51852 bytes in 7.76s.
[STATUS] SUCCESS !!!

Executing command 7 of 10 ...
Command arguments : --file=../../tools/boot/HSMAppimageGen/board/am62x-sk/hsm.appimage --operation=flash --flash-offset=0x800000
Sent ../../tools/boot/HSMAppimageGen/board/am62x-sk/hsm.appimage of size 9646 bytes in 3.84s.
[STATUS] SUCCESS !!!

Executing command 8 of 10 ...
Command arguments : --file=../../examples/drivers/ipc/ipc_rpmsg_echo_linux/am62x-sk/r5fss0-0_freertos/ti-arm-clang/ipc_rpmsg_echo_linux.release.appimage --operation=flash --flash-offset=0xA00000
Sent ../../examples/drivers/ipc/ipc_rpmsg_echo_linux/am62x-sk/r5fss0-0_freertos/ti-arm-clang/ipc_rpmsg_echo_linux.release.appimage of size 141788 bytes in 16.21s.
[STATUS] SUCCESS !!!

Executing command 9 of 10 ...
Command arguments : --file=../../tools/boot/linuxAppimageGen/board/am62x-sk/linux.appimage --operation=flash --flash-offset=0xC00000
Sent ../../tools/boot/linuxAppimageGen/board/am62x-sk/linux.appimage of size 927275 bytes in 89.83s.
[STATUS] SUCCESS !!!

Executing command 10 of 10 ...
Command arguments : --file=../../tools/boot/linuxAppimageGen/board/am62x-sk/u-boot.img --operation=flash --flash-offset=0x280000
Sent ../../tools/boot/linuxAppimageGen/board/am62x-sk/u-boot.img of size 970443 bytes in 93.87s.
[STATUS] SUCCESS !!!

All commands from config file are executed !!!

C:\ti\mcu_plus_sdk_am62x_09_01_00_39\tools\boot>

{code}

BR,

Shubham

Hello,

The flashing looks good. Can you please share all the images? I will try them once on my side & see if they are working.

Thanks!

Hi,

Please let me know which all images you want me to share?

BR,

Shubham

Shubham Goel said:

Please let me know which all images you want me to share?

Please share all the files from Command 4 to 10.

Btw, are you not seeing any logs at all? I think you should be getting logs at least from the SBL_OSPI_LINUX_STAGE1 image.

Hi,

PFA images mcu_plus_sdk_am62x_09_01_00_39.zip.

mcu_plus_sdk_am62x_09_01_00_39.zip

We are getting complete logs as mentioned in the above comment.

BR,

Shubham

Prashant Shivhare said:

Btw, are you not seeing any logs at all? I think you should be getting logs at least from the SBL_OSPI_LINUX_STAGE1 image.

I meant the boot logs on switching the bootmode to OSPI. If you do not see any boot logs at all, can you please confirm the exact bootmode pins configuration you are using for OSPI boot?

Hi,

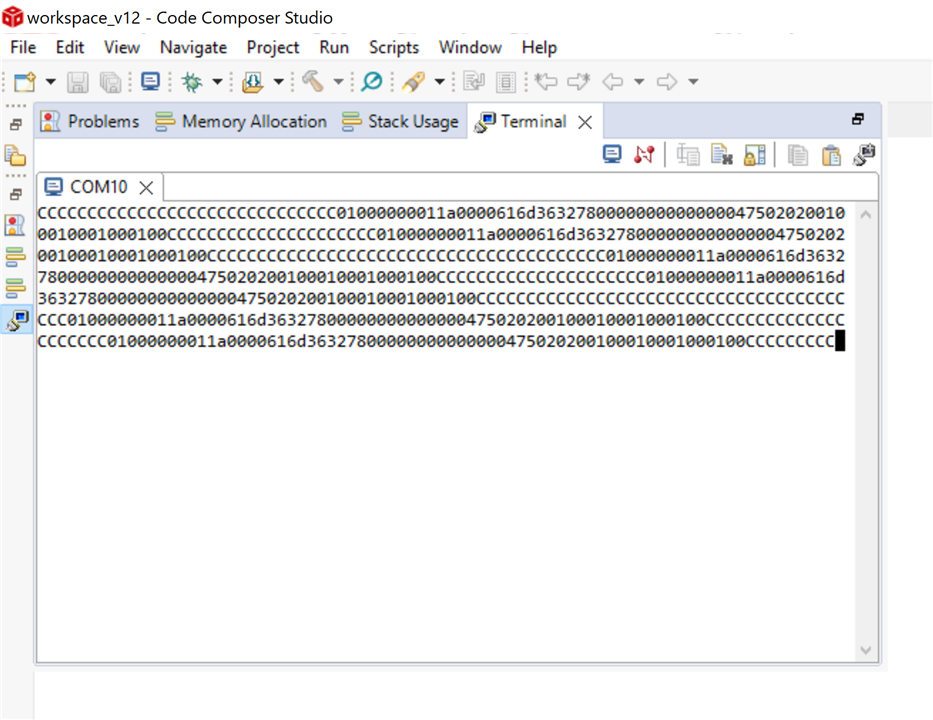

On switching the Bootmode to OSPI.. we are getting below logs (Character 'C' and Device type id related information) on UART terminal:

We have configured the bootmode pins for OSPI boot as per https://software-dl.ti.com/mcu-plus-sdk/esd/AM62X/10_00_00_14/exports/docs/api_guide_am62x/GETTING_STARTED_FLASH.html as given below:

BR,

Shubham

Shubham Goel said:

On switching the Bootmode to OSPI.. we are getting below logs (Character 'C' and Device type id related information) on UART terminal:

This is not possible. If you are getting C characters then the bootmode is UART.

Can you share the actual picture of your board showing the bootmode pins?

Hi,

Sorry for the misunderstanding as we were getting C characters in UART Bootmode.

On switching the Bootmode to OSPI.. we are getting below logs:

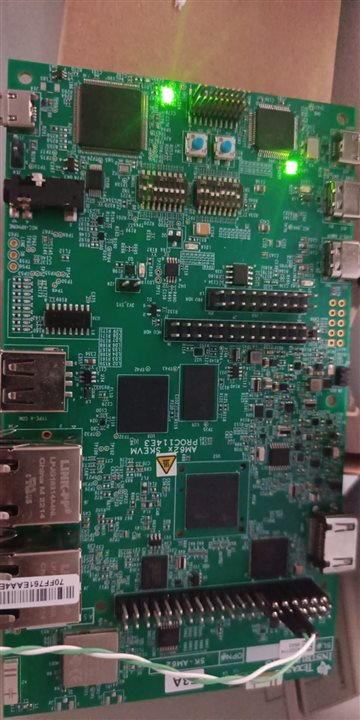

Bootmode pins setting is as below image:

BR,

Shubham

Hi,

Thanks for your inputs.

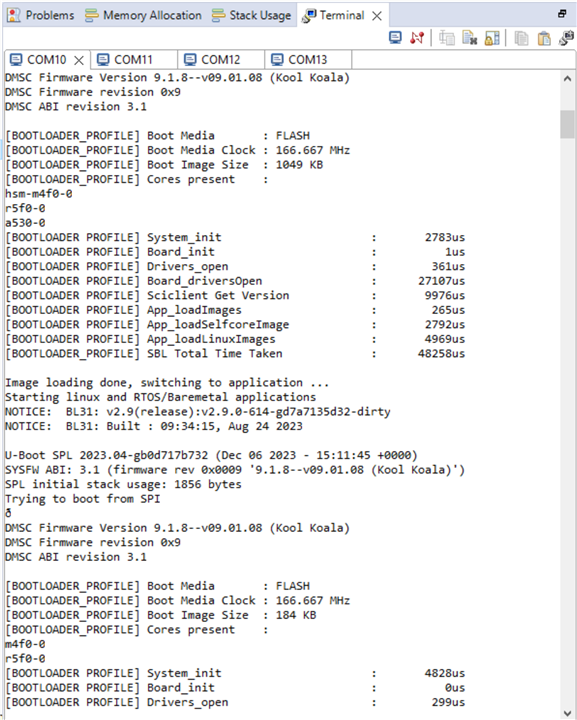

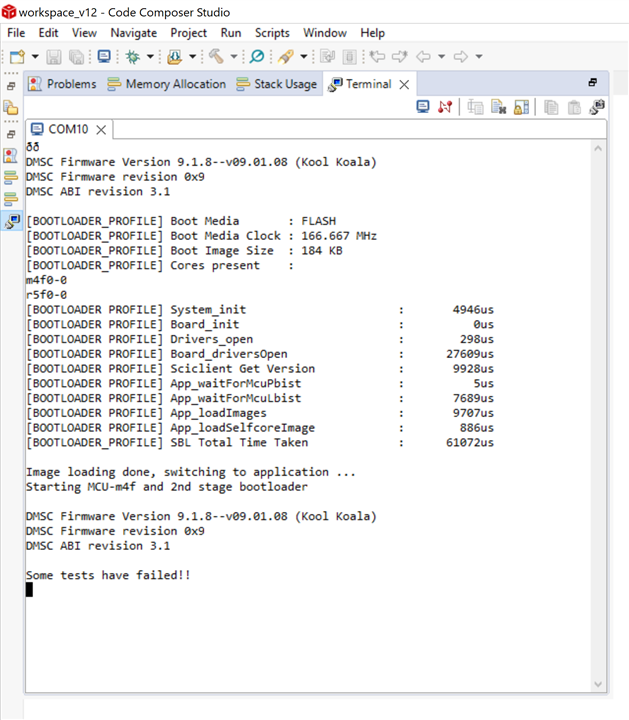

Below is the observations after flashing with updated shared images:

1. Console for UART Flashing:

2. Console for DM R5:

3. Console for MCU M4:

Can you also confirm the shared logs are expected output?

Could you please let us know what are all the modifications needed to load our Application with TI SBL to test reset functionality?

BR,

Shubham

Hi,

Thanks for the confirmation.

We try to flash SBL image with TI "Hello World App example" and we were able to achieve expected output.

Could you please let us know how we can integrate our Application (elf or bin format) with Trace32 debugger.

BR,

Shubham

Hi,

Can you please let us know how to convert elf/bin to appimage?

BR,

Shubham

Hi,

Can you please let us know how we can convert our Application elf/bin format to appimage?

can you please let us know what is --devID 55 mean in the above comment and from which path we need to run the command?

BR,

Shubham

Hi,

Thanks for your inputs.

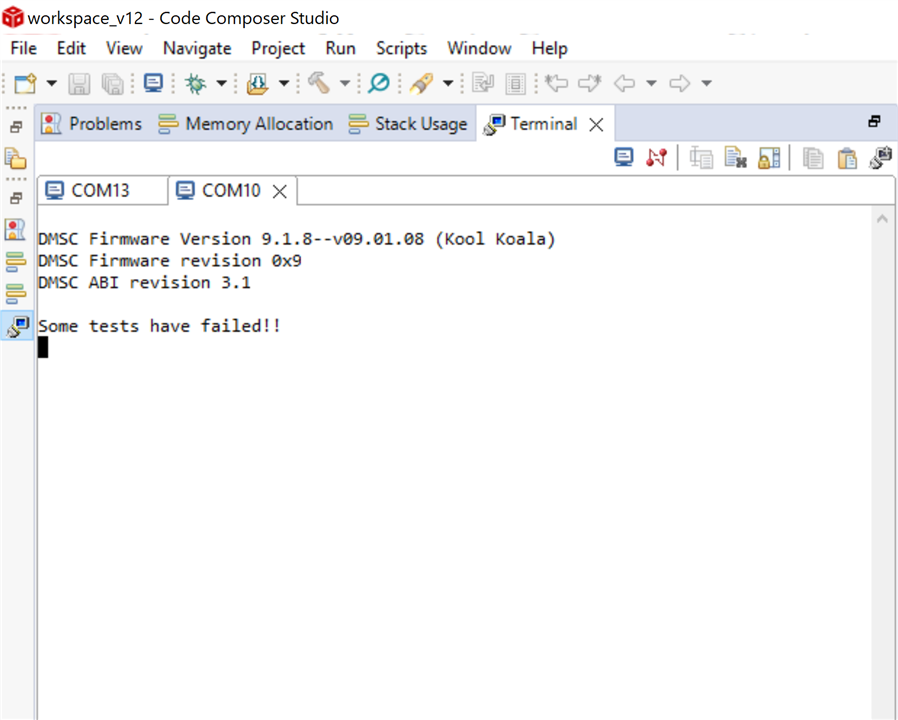

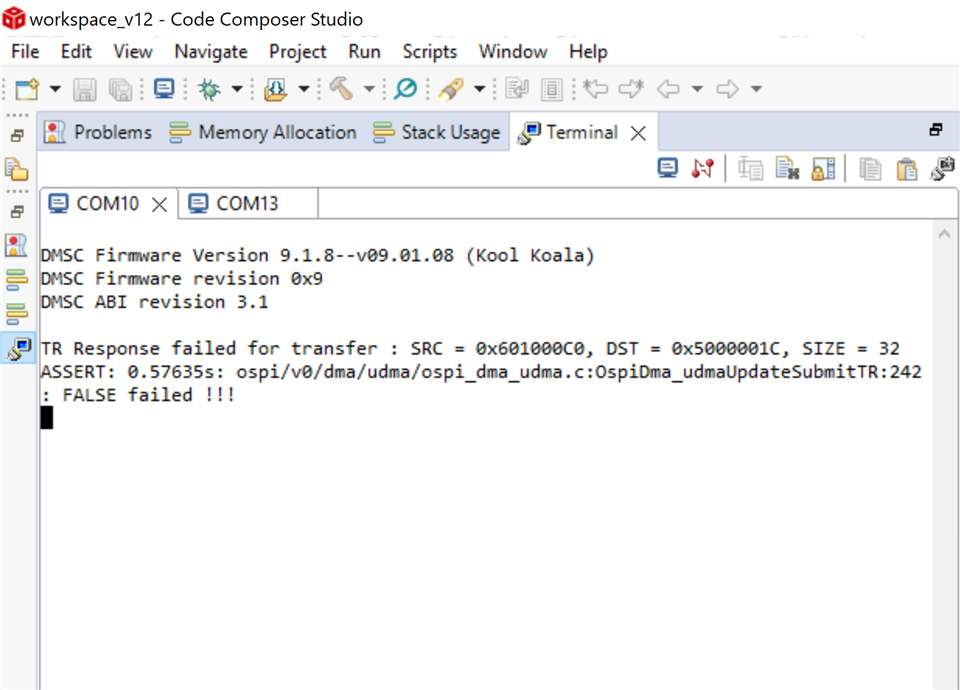

Now we are able to build App Image of our Application and below message is reported after flashing the Application with TI SBL image:

Could you please let us know the start address and vector address for the Application to be aligned with the TI SBL?.. Below is the memory mapping for the Application we are using:

MEMORY
{
EXCTABLE (RX) : origin = 0x00000000 , length = 0x01000
RESET (RX) : origin = 0x00001000 , length = 0x01000
FLASH (RX) : origin = 0x50000000 , length = 0x100000
RAM (RWX) : origin = 0x50100000 , length = 0x100000
}

Could you please provide your feedback on this?

BR,

Shubham

Hi, can you clarify certain things about your application like the core it is for, which SDK it is coming from, etc?

Thanks!

Hi,

It is a customize Application, not an example from MCAL SDK.. Here we integrated TI's MCAL with EB Autosar BSW Project, Configured it using EB Tresos Studio.

The Application is for Basic CAN Communication with one Tx and one Rx message, using CR5 Core.

Please let me know if you need any other information.

BR,

Shubham

Shubham Goel said:

The Application is for Basic CAN Communication with one Tx and one Rx message, using CR5 Core.

If this is a CR5 application then you have flashed it at the wrong offset 0x100000. The SBL expects a M4F appimage at this offset. You would have to replace the default CR5 appimage with your application appimage.

Hi,

Same error observed after flashing SBL image for CR5 Core:

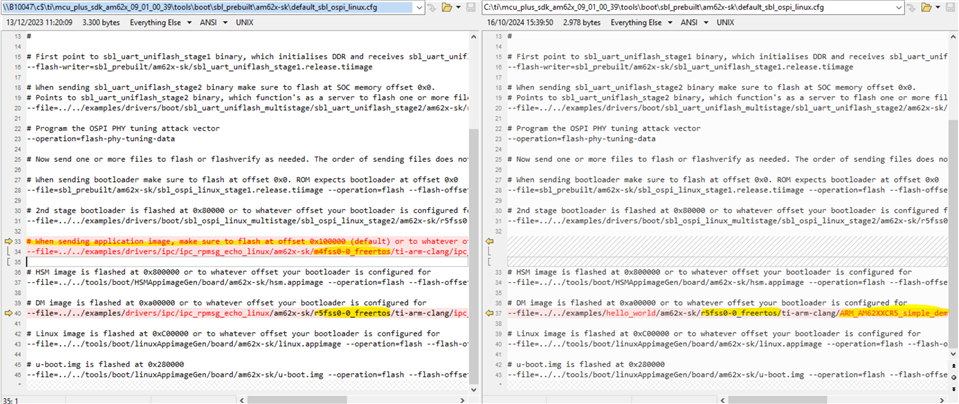

Below are the modifications done in default_sbl_ospi_linux.cfg:

1. removed M4F appimage section.

2. updated CR5 appimage with our Application appimage with --flash-offset=0xA00000.

Could you please let us know the start address and vector address for the Application to be aligned with the TI SBL for CR5 Core?.. Below is the memory mapping for the Application we are using:

MEMORY
{
EXCTABLE (RX) : origin = 0x00000000 , length = 0x01000
RESET (RX) : origin = 0x00001000 , length = 0x01000
FLASH (RX) : origin = 0x50000000 , length = 0x100000
RAM (RWX) : origin = 0x50100000 , length = 0x100000
}

BR,

Shubham

Hi,

Below is the output after flashing the SBL image with all default images except CR5 appimage from our Application:

Could you please confirm if it is expected output?

Could you please let us know the steps involved to integrate WKUP CR5 with the DM?

BR,

Shubham

Hi,

Thanks for your support.

I will create a new thread for the steps involved to integrate WKUP CR5 with the DM.

BR,

Shubham
