PROCESSOR-SDK-AM64X: MCSPI 3pin mode example

in 3 pin mode do we lost of control of CS line, or we can toogle it like standard gpio? force CS either high or low.

Thanks

for sure, but please menstion also:   since that cs0 pin is free, you can use pinmux config to mode 7 , it will be treated as gpio1_42.

Hello Jun,

Happy to help you.

Jun Tu said:

 since that cs0 pin is free, you can use pinmux config to mode 7 , it will be treated as gpio1_42.

Are you mentioning this or asking?

Apart from this please also go through the MCSPI Integration guide: e2e.ti.com/.../faq-sk-am64b-mcspi-integration-guide

Your feedback to add anything else to the above guide will be appreciated.

Regards,

Vaibhav

I am mentioning, not asking.  but I reviewed your MCSPI Intergration guide, this one is too basic, it might not useful for customized board.


Suggestion:



If you can make a excel sheet, or table about register combination will be  a  plus.


IN TRM, there are a lot of MCSPI modes.
1. force enbits mode, how to config.
2. turbo mode.
3. start bit mode.


Table1 specific config for each mode.  register table

eg:  MCSPI_CHCONF_0    bit 19 is turbo mode.

Table 2 common config.

eg:  clock can be extended, data input (edge) can be aligned with clock start edge.

MCSPI_CHCONF_1   TCS0     0 means 0.5 clock cycle,  1 means 1.5 clock cycle


common config will apply to all specific config. for each mode.

my suggestion.

Thanks.

Hello Jun,

Jun Tu said:

IN TRM, there are a lot of MCSPI modes.
1. force enbits mode, how to config.
2. turbo mode.
3. start bit mode.

Can you point me to a specific page for me to start looking at from?

Thanks for your suggestions.

Regards,

Vaibhav

yes for sure.

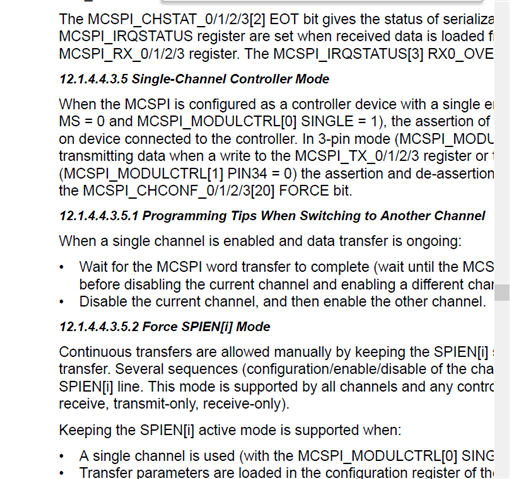

Take a look at TRM chapter 12.1.4.4.3.*    * is integer.  1 to 10.

Each mode will have a combination of register settings.
