AM62D-Q1: McASP Audio Ports

Hi Jens,

We are looking into it. Please expect reply by tomorrow.

Regards,
Ritapravo

Hi Jens,

Please refer below tables for the available signals.

Table 5-34. MCASP0 Signal Descriptions

Table 5-35. MCASP1 Signal Descriptions

Table 5-36. MCASP2 Signal Descriptions

This is similar to the AM62A.

You could use the AM62A sysconfig to see the possible pin configuration.

Regards,

Sreenivasa

Hi Sreenivasa,

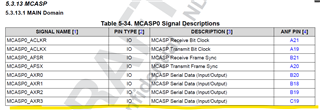

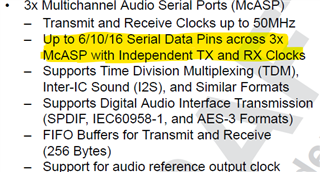

the screenshot above is from table 5-34. Exactly this brings me to my question about the mismatch between table 5-34...5-36 and the screenshot from the second page:

McASP:

- Up to 6/10/16 Serial Data Pins across 3x McASP with Independent TX and RX Clocks

The question is how many McASP serial in/output the AM62D will be offer/support. 6/10/16 or 4/6/16?

Thanks

Jens

Hi Jens,

The signals pin out are listed in the Signal description section.

I suspect the features section might need to be update.

Our device expert works out of Dallas and is out of office.

I will verify and update you sometime next week.

Regards,

Sreenivasa

Hi Jens,

Please refer below inputs i received from the device expert.

All three datasheets have already been updated to be consistent, where they say: Up to 4/6/16 Serial Data Pins across 3x McASP

Regards,

Sreenivasa

Thanks for your reply. Please can you share the updated DS? Neither the AM62D DS on "securesouces" nor the AM62A DS on Web have updated McASP description yet on the high-level overview page 2 .

Thanks

Jens

Hello Jens

Thank you.

We updates are in works. I would expect the data sheet to be available by APL with the updates.

Regards,

Sreenivasa

Hello Jens

Please note that the AM62D-Q1 data sheet has been updated.

3x Multichannel Audio Serial Ports (McASP)

– Transmit and Receive Clocks up to 50MHz

– Up to 4/6/16 Serial Data Pins across 3x McASP with Independent TX and RX Clocks

https://www.ti.com/lit/ds/symlink/am62d-q1.pdf

Regards,

Sreenivasa
