PROCESSOR-SDK-J721S2: [j721s2]TDA4AL-Q1: boot flow about combined-appimage

Daniel Hsieh

Intellectual 520 points

Part Number: PROCESSOR-SDK-J721S2

Tool/software:

Dear TI,

About the boot mode of J721S2 TDA4AL,

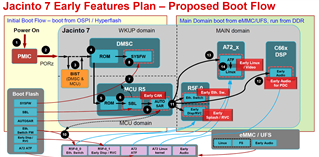

I would like to have following similar boot flow

Boot both of MCU AUTOSAR(or FreeRTOS) and A72

I think i should use combined-appimage to do it, right?

Or, Are there other method?

I reference to the URL

https://software-dl.ti.com/jacinto7/esd/processor-sdk-rtos-j721s2/10_00_00_05/exports/docs/pdk_j721s2_10_00_00_27/docs/userguide/j721s2/boot/boot_hlos.html#combined-appimage

I use csl_mcan_evm_loopback_app as test app

However, i can not bootup SoC part and got following log

Do yo have any comment?

Fullscreen SoC_boot_failed.txt Download

NOTICE:  BL31: v2.10.0(release):v2.10.0-367-g00f1ec6b87-dirty
NOTICE:  BL31: Built : 16:09:05, Feb  9 2024
ERROR:   Timeout waiting for thread SP_RESPONSE to fill
ERROR:   Thread SP_RESPONSE verification failed (-60)
ERROR:   Message receive failed (-60)
ERROR:   Failed to get response (-60)
ERROR:   Transfer send failed (-60)
ERROR:   GTC_CNTFID0 is 0! Assuming 200000000 Hz. Fix Bootloader
ERROR:   Timeout waiting for thread SP_RESPONSE to fill
ERROR:   Thread SP_RESPONSE verification failed (-60)
ERROR:   Message receive failed (-60)
ERROR:   Failed to get response (-60)
ERROR:   Transfer send failed (-60)
ERROR:   Unable to query firmware capabilities (-60)
I/TC:
I/TC: OP-TEE version: 4.2.0-dev (gcc version 13.3.0 (GCC)) #1 Fri Apr 12 09:51:21 UTC 2024 aarch64
I/TC: WARNING: This OP-TEE configuration might be insecure!
I/TC: WARNING: Please check https://optee.readthedocs.io/en/latest/architecture/porting_guidelines.html
I/TC: Primary CPU initializing
I/TC: GIC redistributor base address not provided
I/TC: Assuming default GIC group status and modifier
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 ti_sci_init:486 Unable to communicate with control firmware (-65523)
E/TC:0 0 call_initcalls:43 Initcall __text_start + 0x00070af8 failed
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 tee_otp_get_hw_unique_key:97 Could not get HUK
E/TC:0 0 call_initcalls:43 Initcall __text_start + 0x00070b20 failed
I/TC: Activated SA2UL device
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 sa2ul_init:106 Could not change TRNG firewall owner
E/TC:0 0 call_initcalls:43 Initcall __text_start + 0x00070b28 failed
E/TC:0 0
E/TC:0 0 Core data-abort at address 0x14 (translation fault)
E/TC:0 0  esr 0x96000005  ttbr0 0x9e8a2000   ttbr1 0x00000000   cidr 0x0
E/TC:0 0  cpu #0          cpsr 0x600003c4
E/TC:0 0  x0  000000009e875000 x1  0000000000000000
E/TC:0 0  x2  0000000000000000 x3  0000000000000000
E/TC:0 0  x4  0000000000000050 x5  000000009e892d70
E/TC:0 0  x6  ffffffffffffffb0 x7  0000000000010cb0
E/TC:0 0  x8  0000000000010cb0 x9  000000009e892f80
E/TC:0 0  x10 000000009e882070 x11 0000000000000008
E/TC:0 0  x12 0000000000000000 x13 000000009e8a3e60
E/TC:0 0  x14 0000000000000000 x15 0000000000000000
E/TC:0 0  x16 000000009e81cb90 x17 0000000000000000
E/TC:0 0  x18 0000000000000000 x19 000000009e8a41e0
E/TC:0 0  x20 000000009e8a41e8 x21 000000009e875000
E/TC:0 0  x22 000000009e875000 x23 000000009e875f00
E/TC:0 0  x24 000000009e874dc0 x25 0000000000000000
E/TC:0 0  x26 0000000000000000 x27 0000000000000000
E/TC:0 0  x28 0000000000000000 x29 000000009e8a4170
E/TC:0 0  x30 000000009e817350 elr 000000009e817360
E/TC:0 0  sp_el0 000000009e8a4170
E/TC:0 0 TEE load address @ 0x9e800000
E/TC:0 0 Call stack:
E/TC:0 0  0x9e817360
E/TC:0 0  0x9e807ca0
E/TC:0 0  0x9e822530
E/TC:0 0  0x9e807e9c
E/TC:0 0 Panic 'unhandled pageable abort' at /usr/src/debug/optee-os/4.2.0+git/core/arch/arm/kernel/abort.c:582 <abort_handler>
E/TC:0 0 TEE load address @ 0x9e800000
E/TC:0 0 Call stack:
E/TC:0 0  0x9e80817c
E/TC:0 0  0x9e81eff4
E/TC:0 0  0x9e807884
E/TC:0 0  0x9e804a68
NOTICE:  BL31: v2.10.0(release):v2.10.0-367-g00f1ec6b87-dirty
NOTICE:  BL31: Built : 16:09:05, Feb  9 2024
ERROR:   Timeout waiting for thread SP_RESPONSE to fill
ERROR:   Thread SP_RESPONSE verification failed (-60)
ERROR:   Message receive failed (-60)
ERROR:   Failed to get response (-60)
ERROR:   Transfer send failed (-60)
ERROR:   GTC_CNTFID0 is 0! Assuming 200000000 Hz. Fix Bootloader
ERROR:   Timeout waiting for thread SP_RESPONSE to fill
ERROR:   Thread SP_RESPONSE verification failed (-60)
ERROR:   Message receive failed (-60)
ERROR:   Failed to get response (-60)
ERROR:   Transfer send failed (-60)
ERROR:   Unable to query firmware capabilities (-60)
I/TC:
I/TC: OP-TEE version: 4.2.0-dev (gcc version 13.3.0 (GCC)) #1 Fri Apr 12 09:51:21 UTC 2024 aarch64
I/TC: WARNING: This OP-TEE configuration might be insecure!
I/TC: WARNING: Please check https://optee.readthedocs.io/en/latest/architecture/porting_guidelines.html
I/TC: Primary CPU initializing
I/TC: GIC redistributor base address not provided
I/TC: Assuming default GIC group status and modifier
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 ti_sci_init:486 Unable to communicate with control firmware (-65523)
E/TC:0 0 call_initcalls:43 Initcall __text_start + 0x00070af8 failed
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 tee_otp_get_hw_unique_key:97 Could not get HUK
E/TC:0 0 call_initcalls:43 Initcall __text_start + 0x00070b20 failed
I/TC: Activated SA2UL device
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 k3_sec_proxy_verify_thread:108 Queue is busy
E/TC:0 0 k3_sec_proxy_recv:196 Thread SEC_PROXY_RESPONSE_THREAD verification failed. ret = -65523
E/TC:0 0 ti_sci_get_response:101 Message receive failed (-65523)
E/TC:0 0 ti_sci_do_xfer:150 Failed to get response (-65523)
E/TC:0 0 sa2ul_init:106 Could not change TRNG firewall owner
E/TC:0 0 call_initcalls:43 Initcall __text_start + 0x00070b28 failed
E/TC:0 0
E/TC:0 0 Core data-abort at address 0x14 (translation fault)
E/TC:0 0  esr 0x96000005  ttbr0 0x9e8a2000   ttbr1 0x00000000   cidr 0x0
E/TC:0 0  cpu #0          cpsr 0x600003c4
E/TC:0 0  x0  000000009e875000 x1  0000000000000000
E/TC:0 0  x2  0000000000000000 x3  0000000000000000
E/TC:0 0  x4  0000000000000050 x5  000000009e892d70
E/TC:0 0  x6  ffffffffffffffb0 x7  0000000000010cb0
E/TC:0 0  x8  0000000000010cb0 x9  000000009e892f80
E/TC:0 0  x10 000000009e882070 x11 0000000000000008
E/TC:0 0  x12 0000000000000000 x13 000000009e8a3e60
E/TC:0 0  x14 0000000000000000 x15 0000000000000000
E/TC:0 0  x16 000000009e81cb90 x17 0000000000000000
E/TC:0 0  x18 0000000000000000 x19 000000009e8a41e0
E/TC:0 0  x20 000000009e8a41e8 x21 000000009e875000
E/TC:0 0  x22 000000009e875000 x23 000000009e875f00
E/TC:0 0  x24 000000009e874dc0 x25 0000000000000000
E/TC:0 0  x26 0000000000000000 x27 0000000000000000
E/TC:0 0  x28 0000000000000000 x29 000000009e8a4170
E/TC:0 0  x30 000000009e817350 elr 000000009e817360
E/TC:0 0  sp_el0 000000009e8a4170
E/TC:0 0 TEE load address @ 0x9e800000
E/TC:0 0 Call stack:
E/TC:0 0  0x9e817360
E/TC:0 0  0x9e807ca0
E/TC:0 0  0x9e822530
E/TC:0 0  0x9e807e9c
E/TC:0 0 Panic 'unhandled pageable abort' at /usr/src/debug/optee-os/4.2.0+git/core/arch/arm/kernel/abort.c:582 <abort_handler>
E/TC:0 0 TEE load address @ 0x9e800000
E/TC:0 0 Call stack:
E/TC:0 0  0x9e80817c
E/TC:0 0  0x9e81eff4
E/TC:0 0  0x9e807884
E/TC:0 0  0x9e804a68

Thank you very much

9 months ago

0 Tarun Mukesh Puvvada 9 months ago

TI__Guru 50176 points

Hello,

Daniel Hsieh said:
I think i should use combined-appimage to do it, right?

I understand you are using SBL boot flow.May i know whether you are using Combined app image or Boot App ?

Can you elaborate the steps you did ? May i know the boot media ? like SD ,emmc etc.. what you are using.

RegardS

Tarun Mukesh

0 Daniel Hsieh 9 months ago in reply to Tarun Mukesh Puvvada

Intellectual 520 points

Dear

May i know whether you are using Combined app image or Boot App ?

==>Combined app image

Can you elaborate the steps you did ?

==>folllowing steps

https://software-dl.ti.com/jacinto7/esd/processor-sdk-rtos-j721s2/10_00_00_05/exports/docs/pdk_j721s2_10_00_00_27/docs/userguide/j721s2/boot/boot_hlos.html#combined-appimage

May i know the boot media ? like SD ,emmc etc.. what you are using.

==>SD card

0 Daniel Hsieh 9 months ago in reply to Tarun Mukesh Puvvada

Intellectual 520 points

Dear

Base on following information

https://software-dl.ti.com/jacinto7/esd/processor-sdk-linux-j721s2/10_00_00_08/exports/docs/linux/Foundational_Components/U-Boot/UG-General-Info.html#boot-flow

Under the MCU R5 SPL stage, It will load R5 firmware.

Does it mean the MCU domain firmware, where and how to change firmware file under yocto build?

For this usecase,

Does it mean that i does NOT need to use SBL+ combined-appimage?

Under A72 U-boot status, the "Load R5 firmware" mean the main domain MCU, right?

Thank you very much

0 Tarun Mukesh Puvvada 9 months ago in reply to Daniel Hsieh

TI__Guru 50176 points

Hello,

You mentioned earlier that you are using SBL boot flow right ? If you are using SPL boot flow it will load the R5F cores .No need to use SBL and combined app again.

Daniel Hsieh said:
For this usecase,

Does it mean that i does NOT need to use SBL+ combined-appimage?

Under A72 U-boot status, the "Load R5 firmware" mean the main domain MCU, right?

Yes if you use SPL boot flow then no need to use SBL+ combined app image.

Daniel Hsieh said:
https://software-dl.ti.com/jacinto7/esd/processor-sdk-linux-j721s2/10_00_00_08/exports/docs/linux/Foundational_Components/U-Boot/UG-General-Info.html#boot-flow

Under the MCU R5 SPL stage, It will load R5 firmware.

Does it mean the MCU domain firmware, where and how to change firmware file under yocto build?

You can modify the images of R5F core from console or in rootfs before boot itself

https://software-dl.ti.com/jacinto7/esd/processor-sdk-linux-j721s2/10_00_00_08/exports/docs/linux/Foundational_Components_IPC_J721S2.html#getting-started-with-ipc-linux-examples

Regards

Tarun MUkesh

0 Daniel Hsieh 9 months ago in reply to Tarun Mukesh Puvvada

Intellectual 520 points

Dear Tarun MUkesh

Thank you for your information.

one more question, if we use the AUTOSAR, the boot flow still same with FreeRTOS, right?

Thank you

0 Daniel Hsieh 9 months ago in reply to Daniel Hsieh

Intellectual 520 points

Dear Tarun MUkesh

Under yocto arch, how to update the ipc_echo_testb_freertos_mcu1_0_release.xer5f and rebuild tispl.bin

I can not found the path board-support/prebuilt-images/ti-dm/j721s2

Thank you very much

Processors

Processors forum

PROCESSOR-SDK-J721S2: [j721s2]TDA4AL-Q1: boot flow about combined-appimage
