TDA4VE-Q1: The TDA4VE88T5AALZRQ1 B20 has a transient high level when the low level output is configured,as following picture shows

qiuhui zhou

Part Number: TDA4VE-Q1

Tool/software:

Issue: The TDA4VE88T5AALZRQ1 B20 has a transient high level when the low level output is configured,as following picture shows

Need TI's help: Find out if it was a software configuration problem or something else that caused the transient high level

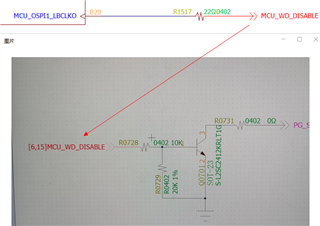

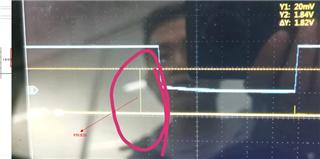

Issue waveform/ hardware peripheral circuit ：

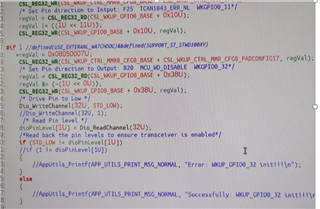

Software Configuration：

9 months ago

0 wl.wang 9 months ago

Intellectual 392 points

Hi expert，

Instantaneous high level occurs when setting GPlO direction.

Best regards!

wl.wang

0 Neehar Sawant 9 months ago in reply to wl.wang

TI__Mastermind 21280 points

Hi,

What SDK version are you using?

Can you test using the API provided in the PDK CSL, CSL_GPIO_setPinDirOutput()?

Thanks,

Neehar

0 wl.wang 9 months ago in reply to Neehar Sawant

Intellectual 392 points

Hi expert，

SDK Version: pdk_j721s2_08_05_00_36

The issue with using CSL_GPIO_setPinDirOutput() still persists.

Best regards!

wl.wang

0 Yong Zhang 9 months ago in reply to wl.wang

TI__Genius 17721 points

Dear WL. wang.

would you please help remove the triodes (Q0701)? then there is only external pull-down resistor. please have a try and provide the test result.

thanks a lot!

yong

0 qiuhui zhou 9 months ago in reply to Yong Zhang

Prodigy 10 points

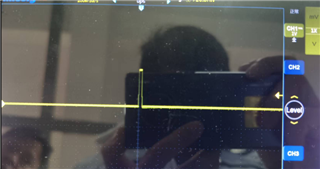

Test results are as follows when removing the triodes (Q0701)

0 Neehar Sawant 9 months ago in reply to qiuhui zhou

TI__Mastermind 21280 points

Hi,

I will check with the hardware team on this.

Do you see the same results with other pins as well? Or this specific configuration?

Thanks,

Neehar

0 wl.wang 9 months ago in reply to Neehar Sawant

Intellectual 392 points

Hi expert,

There aren't instantaneous high level on PIN E19 and PIN E20 with the same configuration while power on Initialization.

best regards!

wl.wang

0 wl.wang 9 months ago in reply to wl.wang

Intellectual 392 points

Hi expert，

Sorry! It's PIN B19，not E19

best regards !

wl.wang

0 Neehar Sawant 9 months ago in reply to wl.wang

TI__Mastermind 21280 points

Hi,

The software configuration and register values look correct from the snippet you have provided.

When do you see the instantaneous high level? Is it immediately after CSL_REG32_WR() write to the GPIO_DIR23 register?

Thanks,

Neehar

0 B.C. 9 months ago in reply to Neehar Sawant

TI__Genius 17086 points

Could you try setting the GPIO registers before setting the padconfig registers to GPIO mode?

0 wl.wang 9 months ago in reply to B.C.

Intellectual 392 points

Hi expert，

The system boot mode is SBL.We can see the instantaneous high level in SBL Initialization. If I don't set direction of PIN B20 in SBL. There is the same phenomenon in MCU1_0 App Initialization.

I had tried to adjust the seqhence of padconfig and direction config,but it's invalid.

best regards!

wl.wang

0 Neehar Sawant 9 months ago in reply to wl.wang

TI__Mastermind 21280 points

Hi,

wl.wang said:
I had tried to adjust the seqhence of padconfig and direction config,but it's invalid.

What do you mean by invalid? Setting the GPIO registers first should prevent this behavior as the Padconfig is not set yet.

Thanks,

Neehar

0 wl.wang 9 months ago in reply to Neehar Sawant

Intellectual 392 points

Hi expert，

Invalid mean that the instantaneous high level still exists

best regards!

wl.wang

0 B.C. 9 months ago in reply to wl.wang

TI__Genius 17086 points

Can you try setting the TX_DIS bit of the B20 padconfig register before configuring the GPIO registers. Then clear the TX_DIS bit afterwards. The TX_DIS bit turns off the IO buffer driver.

0 wl.wang 9 months ago in reply to B.C.

Intellectual 392 points

Hi expert，

The above solution can solve the problem of instantaneous high level. Thanks a lot!

best regards!

wl.wang
