TDA4VM: CSI DSI

Barry Maxiu

Intellectual 630 points

Part Number: TDA4VM

Tool/software:

Hello TI experts,

SDK8.6,

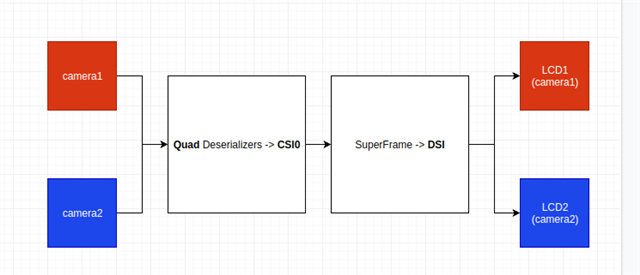

We have implemented the following data link on TDA4VM:

Please help us understand:

How can we ensure that camera1 is always displayed on LCD1 and camera2 is always displayed on LCD2?

How does the software need to be implemented to achieve this?

Looking forward to your reply, thank you.

8 months ago

0 Brijesh Jadav 8 months ago

TI__Guru**** 479675 points

Hi Barry,

Camera1 is essentially your virtual channel0 and in the capture node, it would be most likely channel0, so if you put it first in the super frame and then ask serialize to split it and send it on lcd1, it would work.

Regards,

Brijesh

0 Barry Maxiu 8 months ago in reply to Brijesh Jadav

Intellectual 630 points

Hi Brijesh,

Thanks for reply.

However, as shown in the link below:

camera1->chVcNum[1] --- display1_node;

camera2->chVcNum[2] --- display2_node;

How does chVcNum match display_node?

Please help us understand this doubt, looking forward to your reply.

0 Brijesh Jadav 8 months ago in reply to Barry Maxiu

TI__Guru**** 479675 points

Hi Barry,

The connection should be as shown below.

vcChNum0 -> Channel Num0 -> Display0 Node

vcChNum1 -> Channel Num1 -> Display1 Node

Regards,

Brijesh

+1 Barry Maxiu 8 months ago in reply to Brijesh Jadav

Intellectual 630 points

Hi Brijesh,

Thanks for reply.

How does vcChNum0 match Channel Num0?

How does Channel Num0 match Display0 Node?

How is its bottom layer implemented?

Looking forward to your answer. Thank you

+1 Brijesh Jadav 8 months ago in reply to Barry Maxiu

TI__Guru**** 479675 points

Hi Barry,

channel num0 is virtual channel specified in the array index 0 and so on.. You would need to create two display nodes in the application, display0 is the first display node..

I dont get what's bottom layer?

Regards,

Brijesh
