TDA4AEN-Q1: Blackhawk USB560 v2 System Trace not working with TDA4AEN board.

Hello,

Vishal Kumar said:

1. Connected USB to the host and JTAG to the board. Both USB and MODE led turns GREEN. Able to launch the configuration.

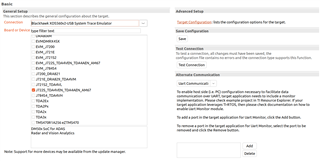

    But not able to connect to any core. Attached image below.

Please see the section for "Cable break" in the below document:

https://dev.ti.com/tirex/explore/node?node=A__ANoamrIZPWD2-6T-NDDWGg__ccs_devtools__FUz-xrs__LATEST

Basically there is some physical connection issue between the debug probe and the target board. Check the connections of where the debug probe connects to the JTAG header. See if you can get this same debug probe working with another board. If so, then the issue is with some hardware connection on the first board.

Vishal Kumar said:

2. Connected USB to the host and JTAG to the board. Both USB and MODE led turns RED. Not able to launch the configuration.

USB Status LED being RED means it is powered up but not yet detected by the PC

MODE Status LED means that the debug probe failed to boot and is now in safe mode.

Please refer to the Installation Guide for the debug probe for further details: https://www.blackhawk-dsp.com/documentation/product-documentation#BH-USB-560v2

You may need to create an account with blackhawk to access it.

Thanks

ki
