AM6421: Debugging a SBL example has a problem

Jaxon JIANG

Prodigy 70 points

Other Parts Discussed in Thread: UNIFLASH

Tool/software:

Hi there,

When I follow those steps to debug a SBL example, there's going to a dead loop.

Please watch this problem, thanks a lot.

Steps link:

https://e2e.ti.com/support/processors-group/processors/f/processors-forum/1294675/faq-am62x-am64x-faq-debugging-sbl-boot-in-rtos-sdk

Dead loop:

Local environment:

1. Compute system version: Windows 11 pro 23h2

2. Code Compose Studio version: 12.7.1.00001

3. MCU SDK Plus AM64x version: 10.00.00.20

4. Compiler version: TI Clang v3.2.2.LTS

4 months ago

0 Tushar Thakur 4 months ago

TI__Mastermind 48938 points

Hi Jaxon,

Have you flashed the newly created SBL image with while(1) loop implemented via UART uniflash?

It looks like like you have flashed the default SBL tiimage using UART uniflash and trying to debug the newly created SBL with while(1) loop implemented via CCS. This will not work.

Please flash the same SBL image which you are trying to load via CCS.

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

Thanks for your response.

Follow your new method, I am trying to recovery the tiboot3.bin on Micro SD card, and redebugging the project.

The problem still remains and stucks in the same place.

Please tell me more detail about SBL tiimage.

Regards,

Jaxon

0 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

Are you using SD card boot mode?

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

Yes, the boot mode is SD card. And the tiboot3.bin is in there.

Regards,

Jaxon

0 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

SBL examples can not be debugged when the EVM is already initialized with Linux. The above FAQ clearly specifies the SBL example debugging with SBL flow.

Please refer faq-am62x-am64x-faq-debugging-sbl-boot-in-rtos-sdk

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

Is has another way to debug the EVM?

I am trying to verify my SBL project that is running on R5FSS0-0 core and doing self-run application project.

Only use two R5F core, left cores are not running.

Please tell me more detail about SBL tiimage, like storage place.

Regards,

Jaxon

+1 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

To debug SBL example use the SBL flow. Please initialize you EVM with SBL binaries for debug.

Please refer EVM_FLASH_SOC_INIT for details.

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

What is purpose to do this? I do not know about it.

there is another question about *.release.hs_fs.tiimage, where is real storage zone?

When timage is transferred through the UART cable, does it exist in the internal flash memory of the chip?

+1 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

The SBL is a secondary bootloader like you have SPL in Linux flow. The SBL applications initializes the EVM.

Please read EXAMPLES_DRIVERS_SBL

Jaxon JIANG said:
there is another question about *.release.hs_fs.tiimage, where is real storage zone?

Each example has its own linker.cmd file where the used memory sections and regions are defined.

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

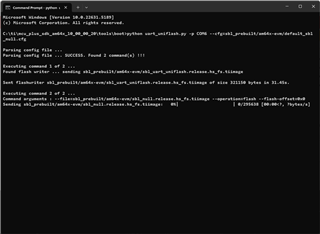

According to EVM_FLASH_SOC_INIT, it will stuck in here.

Then how to fix it.

Regards,

Jaxon

0 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

Jaxon JIANG said:
Then how to fix it.

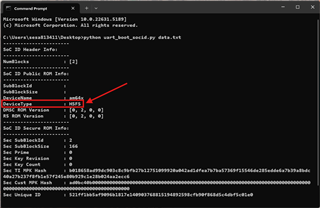

Can you please tell which device type are you using? Is it GP or HSFS?

Please refer faq-am6xx-how-to-check-if-device-type-is-hs-se-hs-fs-or-gp for detail.

Is it a custom board or TI EVM?

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

The device type is HSFS, same with tiimage file type that I flashed first time.

It is purchased from Tronlong company that product SN is SY24072300038, product type is TL6442-EVM-A2.1-64GE8GD-I-A2.1.

Regards,

Jaxon

0 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

Do you have MMC and OPSI module on the board?

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

The board contains two storage area, an 8GByte eMMC and a 32GByte Micro SD.

Regards,

Jaxon

0 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

Does it means that the board doesn't have OSPI boot media.

You will need to remove the OSPI instance from the example.syscfg file of sbl_uart_uniflash example. Rebuild the project and flash the new sbl_uart_uniflash image without OSPI module.

Also you will need to use the default_sbl_emmc_hsfs.cfg file.

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

Do you have an existing project and operations manual to support the above method?

Now the boot mode is No-boot, I am trying to debug a LED project that is entering to the initial dead loop.

Regards,

Jaxon

0 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

Jaxon JIANG said:
Now the boot mode is No-boot, I am trying to debug a LED project that is entering to the initial dead loop.

Can you please provide the screenshot where the code stuck?

Halt the CPU and check the call stack in CCS debug window.

Regards,

Tushar

0 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

Jaxon JIANG said:
Do you have an existing project and operations manual to support the above method?

The default example is already provided in the ${MCU+SDK}/examples/drivers/boot/ directory. Select the sbl_uart_uniflash example and remove the module which are not supported(like OSPI for above case) on custom EVM.

BR, Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

It is my mistake. I just debug LED example, forget to debug Sciclient firstly.

Regards,

Jaxon

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

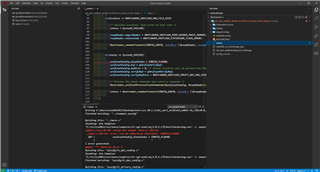

Follow your steps, removing Flash and OPSI modules will cause a build error.

Please provide a valid project.

Regards,

Jaxon

0 Tushar Thakur 4 months ago in reply to Jaxon JIANG

TI__Mastermind 48938 points

Hi Jaxon,

Please replace your main.c and example.syscfg file with the below provided ones and update the results.

Main.c - main.c

Example.syscfg - example.syscfg

Regards,

Tushar

0 Jaxon JIANG 4 months ago in reply to Tushar Thakur

Prodigy 70 points

Hi Tushar,

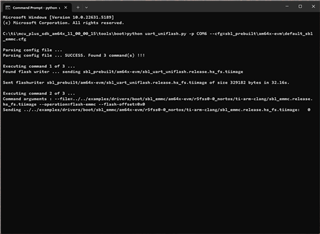

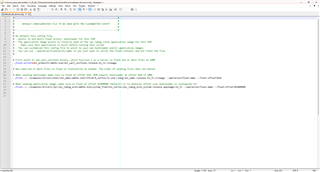

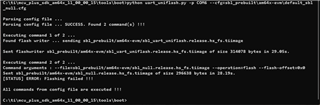

Using existed .cfg(${MCU+SDK}\examples\drivers\boot\sbl_emmc\am64x-evm\r5fss0-0_nortos\default_sbl_emmc.cfg) file to flash device, it also stucks in the same place.

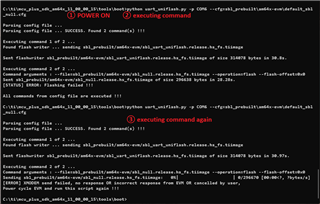

Please confirm the flashing error.

Regards,

Jaxon
