AM6442: Create yocto rootfs

pingan fan

Part Number: AM6442
Other Parts Discussed in Thread: SK-AM64B

Tool/software:

hi sir :

I have installed ti-processor-sdk-linux-am64xx-evm-10_01_10_04-Linux-x86-Install.bin and successfully run make all. I used the script bin/create-sdcard.sh to create an SD card image and wrote it using the SDK's default build files. Now, I want to use custom boot/rootfs tar packages or directories, but the SDK does not seem to include the Yocto-based rootfs source code.

After running make all, I did not find any rootfs build process or generated images. How can I resolve this?

root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04# ls
bin            example-applications  k3r5-devkit  linux-devkit    lmbench.tgz  makerules  rt-tests     Rules.make  stress-ng
board-support  filesystem            licenses     lmbench-3.0-a9  Makefile     manifest   rt-test.tar  setup.sh
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04# cd bin
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04/bin# ls
add-to-group.sh  create-sdcard.sh  setup-host-check.sh  setup-package-install.sh  setup-tftp.sh       sysfw_trace_parser.py
common.sh        Ethernet_flash    setup-minicom.sh     setup-targetfs-nfs.sh     setup-uboot-env.sh  sysfw_trace_rules.json
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04/bin# cd ..
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04# ls
bin            example-applications  k3r5-devkit  linux-devkit    lmbench.tgz  makerules  rt-tests     Rules.make  stress-ng
board-support  filesystem            licenses     lmbench-3.0-a9  Makefile     manifest   rt-test.tar  setup.sh
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04#
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04#
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04#
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04#
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04# cd filesystem/
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04/filesystem# ls
am64xx-evm
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04/filesystem# cd am64xx-evm/
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04/filesystem/am64xx-evm# ls
tisdk-base-image-rt-am64xx-evm.rootfs.tar.xz  tisdk-default-image-rt-am64xx-evm.rootfs.tar.xz  tisdk-thinlinux-image-rt-am64xx-evm.rootfs.tar.xz
root@master:/opt/ti-processor-sdk-linux-rt-am64xx-evm-10.01.10.04/filesystem/am64xx-evm#

5 months ago

0 Andreas Dannenberg 5 months ago

TI__Guru 69707 points

Hi Pingan,

pingan fan said:
I have installed ti-processor-sdk-linux-am64xx-evm-10_01_10_04-Linux-x86-Install.bin and successfully run make al

If you starting a new project, you should use our most current SDK, which right now is v11.0, to benefit from latest Linux Kernel, U-Boot, drivers, firmwares, demos, and so on. See https://www.ti.com/tool/download/PROCESSOR-SDK-LINUX-RT-AM64X

pingan fan said:
Now, I want to use custom boot/rootfs tar packages or directories, but the SDK does not seem to include the Yocto-based rootfs source code

The Yocto environment is not part of the SDK installer, but is getting setup directly from source trees pulled in from the Internet via `git clone`. The documentation has all the details here: https://software-dl.ti.com/processor-sdk-linux-rt/esd/AM64X/11_00_09_04/exports/docs/linux/Overview_Building_the_SDK.html

Regards, Andreas

0 pingan fan 5 months ago in reply to Andreas Dannenberg

Prodigy 125 points

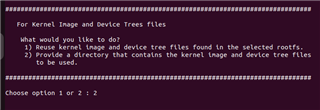

I am using "Create SD Card with custom images" and selected "Enter in custom boot and rootfs file paths". I entered the Boot Partition path, but I don’t know how to choose the ROOT path. I selected the option: "Provide a directory that contains the kernel image and device tree files to be used" because I want to use my own kernel image and device tree files. However, how should this path be configured? Do I need to place all the compiled device tree images and kernel images from the SDK into a single folder? Additionally, after completing this option, it asks me to select the rootfs path again. Can I use the default rootfs file from the system’s built-in filesystem?

+1 Andreas Dannenberg 5 months ago in reply to pingan fan

TI__Guru 69707 points

pingan fan said:
I selected the option: "Provide a directory that contains the kernel image and device tree files to be used" because I want to use my own kernel image and device tree files. However, how should this path be configured? Do I need to place all the compiled device tree images and kernel images from the SDK into a single folder? Additionally, after completing this option, it asks me to select the rootfs path again.

I'm not too familiar with the exact operation of the script when applying such customizations but you can just look at its source code and you'll see exactly where it will be trying to pull files from for Kernel, DTB, and rootfs in accordance with the options that are selected.

Another (more straightforward way I think) would be to just program an initial SD card image with everything the SDK provides; and then mount this image (via SD card reader) and replace the files you want to replace. Note that if you replace the kernel you typically also want to update the kernel modules in sync with it to maintain compatibility (otherwise none of the kernel modules will get loaded).

I still think the best is to use Yocto to just generate a new ready-to-flash WIC image directly. This also has the advantage that all your changes are immediately ready to re-build and re-deploy any time in a repeatable and organized fashion (rather than relying on some scripting and manual command selections etc.)

pingan fan said:
Can I use the default rootfs file from the system’s built-in filesystem?

Yes that shouldn't be an issue.

Regards, Andreas

0 pingan fan 5 months ago in reply to Andreas Dannenberg

Prodigy 125 points

Thank you for your response. The issue with writing to the SD card using the script has been resolved. However, after flashing my self-compiled device tree (DTB) and kernel files, I encountered the following error.

Starting kernel ...

[    0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[    0.000000] Linux version 6.6.58-rt45 (root@master) (aarch64-oe-linux-gcc (GCC) 13.3.0, GNU ld (GNU Binutils) 2.42.0.20240723) #1 SMP PREEMPT_RT Tue Apr 29 11:25:46 CST 2025
[    0.000000] Machine model: Texas Instruments AM642 EVM
[    0.000000] earlycon: ns16550a0 at MMIO32 0x0000000002800000 (options '')
[    0.000000] printk: legacy bootconsole [ns16550a0] enabled
[    0.000000] efi: UEFI not found.
[    0.000000] OF: reserved mem: 0x000000009e800000..0x000000009fffffff (24576 KiB) nomap non-reusable optee@9e800000
[    0.000000] Reserved memory: created DMA memory pool at 0x00000000a0000000, size 1 MiB
[    0.000000] OF: reserved mem: initialized node r5f-dma-memory@a0000000, compatible id shared-dma-pool
[    0.000000] OF: reserved mem: 0x00000000a0000000..0x00000000a00fffff (1024 KiB) nomap non-reusable r5f-dma-memory@a0000000
[    0.000000] Reserved memory: created DMA memory pool at 0x00000000a0100000, size 15 MiB
[    0.000000] OF: reserved mem: initialized node r5f-memory@a0100000, compatible id shared-dma-pool
[    0.000000] OF: reserved mem: 0x00000000a0100000..0x00000000a0ffffff (15360 KiB) nomap non-reusable r5f-memory@a0100000
[    0.000000] Reserved memory: created DMA memory pool at 0x00000000a1000000, size 1 MiB
[    0.000000] OF: reserved mem: initialized node r5f-dma-memory@a1000000, compatible id shared-dma-pool
[    0.000000] OF: reserved mem: 0x00000000a1000000..0x00000000a10fffff (1024 KiB) nomap non-reusable r5f-dma-memory@a1000000
[    0.000000] Reserved memory: created DMA memory pool at 0x00000000a1100000, size 15 MiB
[    0.000000] OF: reserved mem: initialized node r5f-memory@a1100000, compatible id shared-dma-pool
[    0.000000] OF: reserved mem: 0x00000000a1100000..0x00000000a1ffffff (15360 KiB) nomap non-reusable r5f-memory@a1100000
[    0.000000] Reserved memory: created DMA memory pool at 0x00000000a2000000, size 1 MiB
[    0.000000] OF: reserved mem: initialized node r5f-dma-memory@a2000000, compatible id shared-dma-pool
[    0.000000] OF: reserved mem: 0x00000000a2000000..0x00000000a20fffff (1024 KiB) nomap non-reusable r5f-dma-memory@a2000000
[    0.000000] Reserved memory: created DMA memory pool at 0x00000000a2100000, size 15 MiB
[    0.000000] OF: reserved mem: initialized node r5f-memory@a2100000, compatible id shared-dma-pool
[    0.000000] OF: reserved mem: 0x00000000a2100000..0x00000000a2ffffff (15360 KiB) nomap non-reusable r5f-memory@a2100000
[    0.000000] Reserved memory: created DMA memory pool at 0x00000000a3000000, size 1 MiB
[    0.000000] OF: reserved mem: initialized node r5f-dma-memory@a3000000, compatible id shared-dma-pool
