AM69: Setting USB0 into USB2.0 compliance mode

Chris Post

Part Number: AM69
Other Parts Discussed in Thread: TDA4VH

Tool/software:

I am attempting to run USB2.0 compliance testing on the USB0 interface in uboot. I have looked into the registers spreadsheet but have been unsuccessful in determining what registers I have to write to put the AM69 into compliance mode. What exactly are the steps to put the processors USB0 interface into USB2.0 compliance mode?

4 months ago

0 KB 4 months ago

TI__Guru** 120101 points

TI resource assigned to this thread is out of office today. Response will be delayed accordingly.

Regards,

0 Diwakar Dhyani 4 months ago in reply to KB

TI__Guru 55965 points

HI Chris,

After booting the Linux; login as root and then enter the following commands to send out the test packet on the D+/D- pins.

devmem2 0x06010480 w 0x000000A0
devmem2 0x06010080 w 0x00000004
devmem2 0x06010484 w 0x40000000

Measure the signal quality/ rise / fall time eye diagram using the USB2.0 electrical tool from the USB-IF forum.

Regarsd
Diwakar

0 Chris Post 4 months ago in reply to Diwakar Dhyani

Prodigy 90 points

Hi Diwakar,

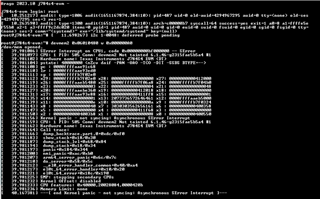

After attempting to send the first command the board linux crashes. I also attempted to write and read these registers in uboot and I see the same errors

0 Diwakar Dhyani 3 months ago in reply to Chris Post

TI__Guru 55965 points

HI Chris,

Which sdk you are using ?

Are you using TDA4VH EVM or am69 ? also make sure dr_mode is set to "host".

Regards
Diwakar

0 Chris Post 3 months ago in reply to Diwakar Dhyani

Prodigy 90 points

Hi Diwakar,

We are using SDK j784s4-evm-09_00_01_03. The board is an AM69. The dr_mode was set to peripheral and I changed it to host but still when sending the commands it would crash

-Chris

0 Gokul Praveen 3 months ago in reply to Chris Post

TI__Genius 10440 points

Hi Chris,

Sorry for the delayed response.

Chris Post said:
We are using SDK j784s4-evm-09_00_01_03. The board is an AM69.

Can you try with the latest SDK version present in the below link as the SDK which you are using is for J784S4 EVM and not AM69.

https://www.ti.com/tool/download/PROCESSOR-SDK-LINUX-AM69

Regards

Gokul

0 Chris Post 3 months ago in reply to Gokul Praveen

Prodigy 90 points

Hi Gokul,

We also have some boards with the TDA4AH processor. I used the commands on that board with the SDK j784s4-evm-09_00_01_03 and still Linux crashes. We also have a J784S4XG01EVM board. Again I attempted to send the commands above and it also caused linux to crash after sending the first command. The SDK version does not appear to be the issue.

Best,

Chris

0 Gokul Praveen 3 months ago in reply to Chris Post

TI__Genius 10440 points

Hi Chris,

Sorry for the late reply.

Can you apply the below patch after switching to the <SDK>/board-support/<Linux directory>

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/791/usb2_5F00_0enable.patch

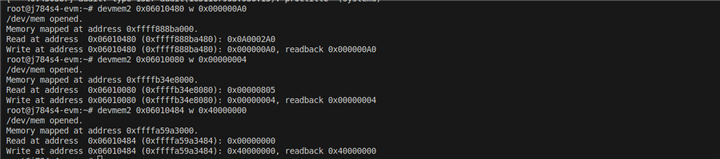

After doing so,you should be able read and write to those registers on J784S4XG01EVM board .

Regards

Gokul
