TDA4VH-Q1: MIPI60 trace interface series resistor placement

SH
Intellectual 390 points
Part Number: TDA4VH-Q1
Other Parts Discussed in Thread: TDA4VH

Tool/software:

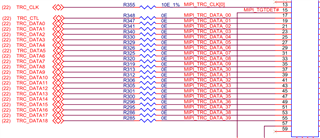

Is there specific reason why on the TDA4VH evaluation module design (SPRR458C, PROC141E5_RP) the series resistors (place reservations) are located next to the trace connector and not closer to the SoC (transmitter of the trace data)?

Is the recommendation to place them closer to connector or closer to SoC?



  • 0
    TI__Guru 52145 points

    The resistors should not be needed as the IO are tuned to 50-ohms output impedance, which should match the PCB.  If using for source termination - yes should be placed near source (Processor).  If using for other visibility/modification/etc - then could be placed at other locations (example near emulator connector).
