AM623: Usage of RMII interface

Kris Feng

Part Number: AM623
Other Parts Discussed in Thread: DP83TC814R-Q1, AM62P

Tool/software:

In our design, there is a network switch IC using RMII without RMII_RX_ER pin connected to AM623, when we trying with ping action, AM6232 keeps reporting iet_rx_smd_err and can not establish communication with switch, does this related to the pin missing ? is there any way to dismiss this error or disable RX_ER pin?

3 months ago

0 Kallikuppa Sreenivasa 2 months ago

TI__Guru**** 190309 points

Hello Kris Feng,

Please check if the below E2Es help.

(+) AM2431: RMII Ethernet connection without RX_ER - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

(+) AM2431: Industrial Communications subsystem support - is the RMII interface supported with this option? - Arm-based microcontrollers forum - Arm-based microcontrollers - TI E2E support forums

(+) DP83825I: DP83825 RX_ER pin / RMII interface - Interface forum - Interface - TI E2E support forums

(+) TDA4VM-Q1: How to deal with RX_ER pin in the case of RMII MAC to MAC? - Processors forum - Processors - TI E2E support forums

Ethernet PHY DP83TC814R-Q1 has the RX_ER pin. Does this have to be connected to AM62P when using RMII?

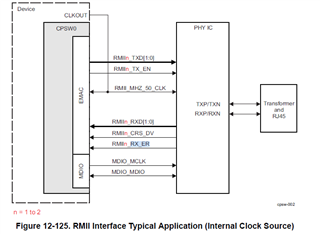

The DP83TC814R-Q1 datasheet says this pin is optional. However, the AM62A TRM p.1631-1632 mentions this pin for typical application. Is this pin required?

RX_ER is optional for RMII implementations. This is a PHY to MAC signal so please refer to the PHY datasheet for implementation instructions when it is not connected to a MAC.

Let me know your thoughts before i can check if any software changes are required to be done.

Regards,

Sreenivasa

0 Kris Feng 2 months ago in reply to Kallikuppa Sreenivasa

Prodigy 70 points

Thank you, so the ER pin is optional.

We disabled this pin in SW configuration and now no more SMD error.
