AM5728: Need help in establishing IPC connection between DSP1->DSP2

Shashank vaidya
Prodigy 15 points
Part Number: AM5728
Other Parts Discussed in Thread: SYSBIOS

Tool/software:

Hey folks,

I'm facing some issues while trying to establish IPC between DSP1 and DSP2 in AM5728 Soc, Currently I'm working with the example code provided with the package ipc_3_50_04_08, In this I'm running ex41_forwardmsg example code. So as far I understand the ARM should initialize the IPC memory region and ARM(HOST) will place a packet in DSP1 queue and DSP1 will be processing it and putting it to the IPU1 queue. I took this example code and compiled it for DSP1 and DSP2 while making slight modifications on DSP1 code to attach to DSP2 rather than IPU1 given in the example. Now I run the host application and loaded the binaries to DSP1 and DSP2 core sequentially after loading program to DSP1 after this I get an error code of (-1) which corresponds to "Ipc_E_FAIL" in Ipc_attach() function. If my understanding is correct, This error will come if the host processor has not initialized the shared memory or not called Ipc_start() at the beginning. But even though I started the host application first and DSP1 next and at last I loaded DSP2 I'm still getting this error message. In order to test if ARM->DSP1 and ARM->DSP2 is working I used the ex02_messageq example provided and it works!!. Please point out if I'm doing something wrong. My final requirement is I should be able to send packet from ARM to DSP1 and DSP1 to DSP2.

Attaching files that may help to root cause the issue....

DSP1.cfg

var Edma = xdc.loadPackage ("ti.sdo.edma3.drv.sample");
var drv = xdc.loadPackage ("ti.sdo.edma3.drv");
var rm = xdc.loadPackage ("ti.sdo.edma3.rm");
var Memory = xdc.useModule('xdc.runtime.Memory');
var BIOS = xdc.useModule('ti.sysbios.BIOS');
var Event = xdc.useModule('ti.sysbios.knl.Event');
var HeapMem = xdc.useModule('ti.sysbios.heaps.HeapMem');
var HeapBuf = xdc.useModule('ti.sysbios.heaps.HeapBuf');
var Task = xdc.useModule('ti.sysbios.knl.Task');
var Idle = xdc.useModule('ti.sysbios.knl.Idle');
var Log = xdc.useModule('xdc.runtime.Log');
var Diags = xdc.useModule('xdc.runtime.Diags');
var C64_Hwi = xdc.useModule ("ti.sysbios.family.c64p.Hwi");
var Semaphore = xdc.useModule('ti.sysbios.knl.Semaphore');
var ECM = xdc.useModule ("ti.sysbios.family.c64p.EventCombiner");
var IntXbar = xdc.useModule('ti.sysbios.family.shared.vayu.IntXbar');
var core = xdc.useModule('ti.sysbios.hal.Core');
var halCache = xdc.useModule('ti.sysbios.hal.Cache');
var Hwi = xdc.useModule('ti.sysbios.hal.Hwi');
var Clock = xdc.useModule('ti.sysbios.knl.Clock');
//var System = xdc.useModule('xdc.runtime.System');
//var SysStd  = xdc.useModule('xdc.runtime.SysStd');
//System.SupportProxy = SysStd;

var BIOS = xdc.useModule('ti.sysbios.BIOS');
var Clock = xdc.useModule('ti.sysbios.knl.Clock');
var Swi = xdc.useModule('ti.sysbios.knl.Swi');
var Task = xdc.useModule('ti.sysbios.knl.Task');
var Semaphore = xdc.useModule('ti.sysbios.knl.Semaphore');
var Hwi = xdc.useModule('ti.sysbios.hal.Hwi');
var Settings = xdc.useModule('ti.sysbios.posix.Settings');
var HeapMultiBuf = xdc.useModule('ti.sysbios.heaps.HeapMultiBuf');

ECM.eventGroupHwiNum[0] = 7;
ECM.eventGroupHwiNum[1] = 8;

Program.sectMap[".tracebuf"] = Program.platform.dataMemory;

/*  Use SysMin because trace buffer address is required for Linux/QNX
 *  trace debug driver, plus provides better performance.
 */
var System = xdc.useModule('xdc.runtime.System');
var SysMin = xdc.useModule('ti.trace.SysMin');
System.SupportProxy = SysMin;
SysMin.bufSize  = 0x8000;

/* Set CPU Frequency */
BIOS.cpuFreq.lo = 750000000;
BIOS.cpuFreq.hi = 0;

/* default memory heap */
var Memory = xdc.useModule('xdc.runtime.Memory');
var HeapMem = xdc.useModule('ti.sysbios.heaps.HeapMem');
var heapMemParams = new HeapMem.Params();
heapMemParams.size = 0x1400000;
Memory.defaultHeapInstance = HeapMem.create(heapMemParams);

var HeapBufMP   = xdc.useModule('ti.sdo.ipc.heaps.HeapBufMP');

/* ================ Driver configuration ================ */

/* Load and use the PCIE packages */
var socType = "am572x";
var Pcie = xdc.loadPackage('ti.drv.pcie');
/* Enable only if soc-specific library should be used */
/* Pcie.Settings.socType = socType; */ /* use soc/am572x/src/pcie_soc.c */

/* Load the I2C package  - required by board */
var I2c = xdc.loadPackage('ti.drv.i2c');
I2c.Settings.socType = socType;

/* Load the uart package -- required by board */
var Uart = xdc.loadPackage('ti.drv.uart');
Uart.Settings.socType = socType;

/* Load the gpio package */
var Gpio = xdc.loadPackage('ti.drv.gpio');
Gpio.Settings.socType = socType;

/* Load the Board package and set the board name */
var Board = xdc.loadPackage('ti.board');
Board.Settings.boardName = "evmAM572x";

/* Load the osal package -- required by board & interrupt example */
var osType = "tirtos";
var Osal = xdc.loadPackage('ti.osal');
Osal.Settings.osType = osType;
Osal.Settings.socType = socType;

/*use CSL package*/
var Csl = xdc.loadPackage('ti.csl');
Csl.Settings.deviceType = socType;

/* Load the MMCSD package */
var Mmcsd = xdc.loadPackage('ti.drv.mmcsd');
Mmcsd.Settings.enableProfiling = false;
Mmcsd.Settings.useDma = "false";
Mmcsd.Settings.socType= socType;

/* ================ Driver configuration ================ */


/*
 *  ======== IPC Configuration ========
 */
xdc.useModule('ti.ipc.ipcmgr.IpcMgr');

Program.argSize = 100;  /* minimum size */
Program.stack = 0x80000;

/* create a heap for MessageQ messages */
var HeapBuf = xdc.useModule('ti.sysbios.heaps.HeapBuf');
var params = new HeapBuf.Params;
params.align = 8;
params.blockSize = 512;
params.numBlocks = 256;
var msgHeap = HeapBuf.create(params);

var MessageQ  = xdc.useModule('ti.sdo.ipc.MessageQ');
MessageQ.registerHeapMeta(msgHeap, 0);

/* Setup MessageQ transport */
var VirtioSetup = xdc.useModule('ti.ipc.transports.TransportRpmsgSetup');
MessageQ.SetupTransportProxy = VirtioSetup;

/* Setup NameServer remote proxy */
var NameServer = xdc.useModule("ti.sdo.utils.NameServer");
var NsRemote = xdc.useModule("ti.ipc.namesrv.NameServerRemoteRpmsg");
NameServer.SetupProxy = NsRemote;

/* Enable Memory Translation module that operates on the BIOS Resource Table */
var Resource = xdc.useModule('ti.ipc.remoteproc.Resource');
Resource.loadSegment = Program.platform.codeMemory;

/* Override default resource table to add CMEM memory section*/
Resource.customTable = true;

/* load the configuration shared across cores  */
Program.global.procName = "DSP1";

/* configure processor names */
var procNameAry =  ["HOST", "IPU2", "IPU1", "DSP2", "DSP1"];

var MultiProc = xdc.useModule('ti.sdo.utils.MultiProc');
MultiProc.setConfig(Program.global.procName, procNameAry);

var BIOS        = xdc.useModule('ti.sysbios.BIOS');
BIOS.addUserStartupFunction('&IpcMgr_ipcStartup');

/* Add Shared Region module */
var SharedRegion = xdc.useModule('ti.sdo.ipc.SharedRegion');

/*
 *  ======== Instrumentation Configuration ========
 */

/* system logger */
var LoggerSys = xdc.useModule('xdc.runtime.LoggerSys');
var LoggerSysParams = new LoggerSys.Params();
var Defaults = xdc.useModule('xdc.runtime.Defaults');
Defaults.common$.logger = LoggerSys.create(LoggerSysParams);

/* enable runtime Diags_setMask() for non-XDC spec'd modules */
var Diags = xdc.useModule('xdc.runtime.Diags');
Diags.setMaskEnabled = true;

/* override diags mask for selected modules */
xdc.useModule('xdc.runtime.Main');
Diags.setMaskMeta("xdc.runtime.Main",
    Diags.ENTRY | Diags.EXIT | Diags.INFO | Diags.USER1, Diags.RUNTIME_ON);

var Registry = xdc.useModule('xdc.runtime.Registry');
Registry.common$.diags_ENTRY = Diags.RUNTIME_OFF;
Registry.common$.diags_EXIT  = Diags.RUNTIME_OFF;
Registry.common$.diags_INFO  = Diags.RUNTIME_OFF;
Registry.common$.diags_USER1 = Diags.RUNTIME_OFF;
Registry.common$.diags_LIFECYCLE = Diags.RUNTIME_OFF;
Registry.common$.diags_STATUS = Diags.RUNTIME_OFF;

var Main = xdc.useModule('xdc.runtime.Main');
Main.common$.diags_ASSERT = Diags.ALWAYS_ON;
Main.common$.diags_INTERNAL = Diags.ALWAYS_ON;

Program.sectMap[".test_data"] = "L2SRAM";
Program.sectMap[".mem_buff"] = "EXT_HEAP";
Program.sectMap[".adc_buff"] = "EXT_HEAP";

DSP1_config.bld

var Build = xdc.useModule('xdc.bld.BuildEnvironment');


var evmDRA7XX_ExtMemMapDsp = {
    EXT_CODE: {
        name: "EXT_CODE",
        base: 0x95000000,
        len:  0x00100000,
        space: "code",
        access: "RWX"
    },
    EXT_DATA: {
        name: "EXT_DATA",
        base: 0x95100000,
        len:  0x02000000,
        space: "data",
        access: "RW"
    },
    EXT_HEAP: {
        name: "EXT_HEAP",
        base: 0x80000000,
        len:  0x09000000,
        space: "data",
        access: "RW"
    },
    EXC_DATA: {
        name: "EXC_DATA",
        base: 0x9F060000,
        len:  0x00010000,
        space: "data",
        access: "RW"
    },
    PM_DATA: {
        name: "PM_DATA",
        base: 0x9F070000,
        len:  0x00020000,
        space: "data",
        access: "RWX"  /* should this have execute perm? */
    },
};

Build.platformTable["ti.platforms.evmDRA7XX:dsp"] = {
    externalMemoryMap: [
        [ "EXT_CODE", evmDRA7XX_ExtMemMapDsp.EXT_CODE ],
        [ "EXT_DATA", evmDRA7XX_ExtMemMapDsp.EXT_DATA ],
        [ "EXT_HEAP", evmDRA7XX_ExtMemMapDsp.EXT_HEAP ],
        [ "EXC_DATA", evmDRA7XX_ExtMemMapDsp.EXC_DATA ],
        [ "PM_DATA", evmDRA7XX_ExtMemMapDsp.PM_DATA ],
    ],
    codeMemory: "EXT_CODE",
    dataMemory: "EXT_DATA",
    stackMemory: "EXT_DATA",
};

rsc_table_dsp1.h

#ifndef _RSC_TABLE_DSP_H_
#define _RSC_TABLE_DSP_H_

#include <ti/ipc/remoteproc/rsc_types.h>

/* DSP Memory Map */
#define L4_DRA7XX_BASE 0x4A000000

#define L4_PERIPHERAL_L4CFG (L4_DRA7XX_BASE)
#define DSP_PERIPHERAL_L4CFG 0x4A000000

#define L4_PERIPHERAL_L4PER1 0x48000000
#define DSP_PERIPHERAL_L4PER1 0x48000000

#define L4_PERIPHERAL_L4PER2 0x48400000
#define DSP_PERIPHERAL_L4PER2 0x48400000

#define L4_PERIPHERAL_L4PER3 0x48800000
#define DSP_PERIPHERAL_L4PER3 0x48800000

#define L4_PERIPHERAL_L4EMU 0x54000000
#define DSP_PERIPHERAL_L4EMU 0x54000000

#define L3_PERIPHERAL_DMM 0x4E000000
#define DSP_PERIPHERAL_DMM 0x4E000000

#define L3_TILER_MODE_0_1 0x60000000
#define DSP_TILER_MODE_0_1 0x60000000

#define L3_TILER_MODE_2 0x70000000
#define DSP_TILER_MODE_2 0x70000000

#define L3_TILER_MODE_3 0x78000000
#define DSP_TILER_MODE_3 0x78000000

//////////
#define L3_PERIPHERAL_EDMA 0x43300000
#define DSP_PERIPHERAL_EDMA 0x43300000

#define L3_PCIE_SS1_CONFIG_REG_BASE 0x51000000
#define DSP_PCIE_SS1_CONFIG_REG_BASE 0x51000000

#define L3_PCIE_SS1_CONFIG_SPACE_BASE 0x20000000
#define DSP_PCIE_SS1_CONFIG_SPACE_BASE 0x20000000
//////////////
#define DSP_MEM_TEXT 0x95000000
/* Co-locate alongside TILER region for easier flushing */
#define DSP_MEM_IOBUFS 0xBA300000
#define DSP_MEM_DATA 0x95100000
#define DSP_MEM_HEAP 0x80000000

#define DSP_MEM_IPC_DATA 0x9F000000
#define DSP_MEM_IPC_VRING 0x99000000
#define DSP_MEM_RPMSG_VRING0 0x99000000
#define DSP_MEM_RPMSG_VRING1 0x99004000
#define DSP_MEM_VRING_BUFS0 0x99040000
#define DSP_MEM_VRING_BUFS1 0x99080000

#define DSP_MEM_IPC_VRING_SIZE SZ_1M
#define DSP_MEM_IPC_DATA_SIZE SZ_1M
#define DSP_MEM_TEXT_SIZE SZ_1M
#define DSP_MEM_DATA_SIZE (SZ_1M * 32)
#define DSP_MEM_HEAP_SIZE (SZ_1M * 144)
#define DSP_MEM_IOBUFS_SIZE (SZ_1M * 90)

/* NOTE: Make sure this matches what is configured in the linux device tree */
#define DSP_CMEM_IOBUFS 0xc0000000
#define PHYS_CMEM_IOBUFS 0xc0000000
#define DSP_CMEM_IOBUFS_SIZE (SZ_1M * 192)

/*
 * Assign fixed RAM addresses to facilitate a fixed MMU table.
 */

#define VAYU_DSP_1

/* See CMA BASE addresses in Linux side: arch/arm/mach-omap2/remoteproc.c */
#if defined(VAYU_DSP_1)
#define PHYS_MEM_IPC_VRING 0x91000000
#elif defined(VAYU_DSP_2)
#define PHYS_MEM_IPC_VRING 0x9F000000
#endif

/* Need to be identical to that of IPU */
#define PHYS_MEM_IOBUFS 0xBA300000

/*
 * Sizes of the virtqueues (expressed in number of buffers supported,
 * and must be power of 2)
 */
#define DSP_RPMSG_VQ0_SIZE 256
#define DSP_RPMSG_VQ1_SIZE 256

/* flip up bits whose indices represent features we support */
#define RPMSG_DSP_C0_FEATURES 1

struct my_resource_table {
  struct resource_table base;

  UInt32 offset[21]; /* Should match 'num' in actual definition */

  /* rpmsg vdev entry */
  struct fw_rsc_vdev rpmsg_vdev;
  struct fw_rsc_vdev_vring rpmsg_vring0;
  struct fw_rsc_vdev_vring rpmsg_vring1;

  /* text carveout entry */
  struct fw_rsc_carveout text_cout;

  /* data carveout entry */
  struct fw_rsc_carveout data_cout;

  /* heap carveout entry */
  struct fw_rsc_carveout heap_cout;

  /* ipcdata carveout entry */
  struct fw_rsc_carveout ipcdata_cout;

  /* trace entry */
  struct fw_rsc_trace trace;

  /* devmem entry */
  struct fw_rsc_devmem devmem0;

  /* devmem entry */
  struct fw_rsc_devmem devmem1;

  /* devmem entry */
  struct fw_rsc_devmem devmem2;

  /* devmem entry */
  struct fw_rsc_devmem devmem3;

  /* devmem entry */
  struct fw_rsc_devmem devmem4;

  /* devmem entry */
  struct fw_rsc_devmem devmem5;

  /* devmem entry */
  struct fw_rsc_devmem devmem6;

  /* devmem entry */
  struct fw_rsc_devmem devmem7;

  /* devmem entry */
  struct fw_rsc_devmem devmem8;

  /* devmem entry */
  struct fw_rsc_devmem devmem9;

  /* devmem entry */
  struct fw_rsc_devmem devmem10;

  /* devmem entry */
  struct fw_rsc_devmem devmem11;

  /* devmem entry */
  struct fw_rsc_devmem devmem12;

  /* devmem entry */
  struct fw_rsc_devmem devmem13;

  /* devmem entry */
  struct fw_rsc_devmem devmem14;
};

extern char ti_trace_SysMin_Module_State_0_outbuf__A;
#define TRACEBUFADDR (UInt32) & ti_trace_SysMin_Module_State_0_outbuf__A

#pragma DATA_SECTION(ti_ipc_remoteproc_ResourceTable, ".resource_table")
#pragma DATA_ALIGN(ti_ipc_remoteproc_ResourceTable, 4096)

struct my_resource_table ti_ipc_remoteproc_ResourceTable = {
    1,  /* we're the first version that implements this */
    21, /* number of entries in the table */
    0,
    0, /* reserved, must be zero */
    /* offsets to entries */
    {
        offsetof(struct my_resource_table, rpmsg_vdev),
        offsetof(struct my_resource_table, text_cout),
        offsetof(struct my_resource_table, data_cout),
        offsetof(struct my_resource_table, heap_cout),
        offsetof(struct my_resource_table, ipcdata_cout),
        offsetof(struct my_resource_table, trace),
        offsetof(struct my_resource_table, devmem0),
        offsetof(struct my_resource_table, devmem1),
        offsetof(struct my_resource_table, devmem2),
        offsetof(struct my_resource_table, devmem3),
        offsetof(struct my_resource_table, devmem4),
        offsetof(struct my_resource_table, devmem5),
        offsetof(struct my_resource_table, devmem6),
        offsetof(struct my_resource_table, devmem7),
        offsetof(struct my_resource_table, devmem8),
        offsetof(struct my_resource_table, devmem9),
        offsetof(struct my_resource_table, devmem10),
        offsetof(struct my_resource_table, devmem11),
        offsetof(struct my_resource_table, devmem12),
        offsetof(struct my_resource_table, devmem13),
        offsetof(struct my_resource_table, devmem14),
    },

    /* rpmsg vdev entry */
    {
        TYPE_VDEV,
        VIRTIO_ID_RPMSG,
        0,
        RPMSG_DSP_C0_FEATURES,
        0,
        0,
        0,
        2,
        {0, 0},
        /* no config data */
    },
    /* the two vrings */
    {DSP_MEM_RPMSG_VRING0, 4096, DSP_RPMSG_VQ0_SIZE, 1, 0},
    {DSP_MEM_RPMSG_VRING1, 4096, DSP_RPMSG_VQ1_SIZE, 2, 0},

    {
        TYPE_CARVEOUT, DSP_MEM_TEXT, 0, DSP_MEM_TEXT_SIZE, 0, 0, "DSP_MEM_TEXT",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_DATA, 0, DSP_MEM_DATA_SIZE, 0, 0, "DSP_MEM_DATA",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_HEAP, 0, DSP_MEM_HEAP_SIZE, 0, 0, "DSP_MEM_HEAP",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_IPC_DATA, 0, DSP_MEM_IPC_DATA_SIZE, 0, 0,
        "DSP_MEM_IPC_DATA",
    },

    {
        TYPE_TRACE, TRACEBUFADDR, 0x8000, 0, "trace:dsp",
    },

    {
        TYPE_DEVMEM, DSP_MEM_IPC_VRING, PHYS_MEM_IPC_VRING,
        DSP_MEM_IPC_VRING_SIZE, 0, 0, "DSP_MEM_IPC_VRING",
    },

    {
        TYPE_DEVMEM, DSP_MEM_IOBUFS, PHYS_MEM_IOBUFS, DSP_MEM_IOBUFS_SIZE, 0, 0,
        "DSP_MEM_IOBUFS",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_0_1, L3_TILER_MODE_0_1, SZ_256M, 0, 0,
        "DSP_TILER_MODE_0_1",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_2, L3_TILER_MODE_2, SZ_128M, 0, 0,
        "DSP_TILER_MODE_2",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_3, L3_TILER_MODE_3, SZ_128M, 0, 0,
        "DSP_TILER_MODE_3",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4CFG, L4_PERIPHERAL_L4CFG, SZ_16M, 0, 0,
        "DSP_PERIPHERAL_L4CFG",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER1, L4_PERIPHERAL_L4PER1, SZ_2M, 0, 0,
        "DSP_PERIPHERAL_L4PER1",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER2, L4_PERIPHERAL_L4PER2, SZ_4M, 0, 0,
        "DSP_PERIPHERAL_L4PER2",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER3, L4_PERIPHERAL_L4PER3, SZ_8M, 0, 0,
        "DSP_PERIPHERAL_L4PER3",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4EMU, L4_PERIPHERAL_L4EMU, SZ_16M, 0, 0,
        "DSP_PERIPHERAL_L4EMU",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_DMM, L3_PERIPHERAL_DMM, SZ_1M, 0, 0,
        "DSP_PERIPHERAL_DMM",
    },

    {
        TYPE_DEVMEM, DSP_CMEM_IOBUFS, PHYS_CMEM_IOBUFS, DSP_CMEM_IOBUFS_SIZE, 0,
        0, "DSP_CMEM_IOBUFS",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_EDMA, L3_PERIPHERAL_EDMA, SZ_1M*3, 0,
        0, "DSP_EDMA",
    },

    {
        TYPE_DEVMEM, DSP_PCIE_SS1_CONFIG_REG_BASE, L3_PCIE_SS1_CONFIG_REG_BASE, SZ_8M, 0,
        0, "DSP_PCIE_REG_BASE",
    },

    {
        TYPE_DEVMEM, DSP_PCIE_SS1_CONFIG_SPACE_BASE, L3_PCIE_SS1_CONFIG_SPACE_BASE, SZ_256M, 0,
        0, "DSP_PCIE_CONFIG_BASE",
    },
};

#endif /* _RSC_TABLE_DSP_H_ */

----------------------------------------------------------------------------------------------------------------------------

DSP2.cfg

var Edma = xdc.loadPackage ("ti.sdo.edma3.drv.sample");
var drv = xdc.loadPackage ("ti.sdo.edma3.drv");
var rm = xdc.loadPackage ("ti.sdo.edma3.rm");
var Memory = xdc.useModule('xdc.runtime.Memory');
var BIOS = xdc.useModule('ti.sysbios.BIOS');
var Event = xdc.useModule('ti.sysbios.knl.Event');
var HeapMem = xdc.useModule('ti.sysbios.heaps.HeapMem');
var HeapBuf = xdc.useModule('ti.sysbios.heaps.HeapBuf');
var Task = xdc.useModule('ti.sysbios.knl.Task');
var Idle = xdc.useModule('ti.sysbios.knl.Idle');
var Log = xdc.useModule('xdc.runtime.Log');
var Diags = xdc.useModule('xdc.runtime.Diags');
var C64_Hwi = xdc.useModule ("ti.sysbios.family.c64p.Hwi");
var Semaphore = xdc.useModule('ti.sysbios.knl.Semaphore');
var ECM = xdc.useModule ("ti.sysbios.family.c64p.EventCombiner");
var IntXbar = xdc.useModule('ti.sysbios.family.shared.vayu.IntXbar');
var core = xdc.useModule('ti.sysbios.hal.Core');
var halCache = xdc.useModule('ti.sysbios.hal.Cache');
var Hwi = xdc.useModule('ti.sysbios.hal.Hwi');
var Clock = xdc.useModule('ti.sysbios.knl.Clock');
//var System = xdc.useModule('xdc.runtime.System');
//var SysStd  = xdc.useModule('xdc.runtime.SysStd');
//System.SupportProxy = SysStd;

var BIOS = xdc.useModule('ti.sysbios.BIOS');
var Clock = xdc.useModule('ti.sysbios.knl.Clock');
var Swi = xdc.useModule('ti.sysbios.knl.Swi');
var Task = xdc.useModule('ti.sysbios.knl.Task');
var Semaphore = xdc.useModule('ti.sysbios.knl.Semaphore');
var Hwi = xdc.useModule('ti.sysbios.hal.Hwi');
var Settings = xdc.useModule('ti.sysbios.posix.Settings');
var HeapMultiBuf = xdc.useModule('ti.sysbios.heaps.HeapMultiBuf');

Program.sectMap[".tracebuf"] = Program.platform.dataMemory;

/*  Use SysMin because trace buffer address is required for Linux/QNX
 *  trace debug driver, plus provides better performance.
 */
var System = xdc.useModule('xdc.runtime.System');
var SysMin = xdc.useModule('ti.trace.SysMin');
System.SupportProxy = SysMin;
SysMin.bufSize  = 0x8000;

/* Set CPU Frequency */
BIOS.cpuFreq.lo = 750000000;
BIOS.cpuFreq.hi = 0;

/* default memory heap */
var Memory = xdc.useModule('xdc.runtime.Memory');
var HeapMem = xdc.useModule('ti.sysbios.heaps.HeapMem');
var heapMemParams = new HeapMem.Params();
heapMemParams.size = 0x1400000;
Memory.defaultHeapInstance = HeapMem.create(heapMemParams);

var HeapBufMP   = xdc.useModule('ti.sdo.ipc.heaps.HeapBufMP');

/* ================ Driver configuration ================ */

/* Load and use the PCIE packages */
var socType = "am572x";
var Pcie = xdc.loadPackage('ti.drv.pcie');
/* Enable only if soc-specific library should be used */
/* Pcie.Settings.socType = socType; */ /* use soc/am572x/src/pcie_soc.c */

/* Load the I2C package  - required by board */
var I2c = xdc.loadPackage('ti.drv.i2c');
I2c.Settings.socType = socType;

/* Load the uart package -- required by board */
var Uart = xdc.loadPackage('ti.drv.uart');
Uart.Settings.socType = socType;

/* Load the gpio package */
var Gpio = xdc.loadPackage('ti.drv.gpio');
Gpio.Settings.socType = socType;

/* Load the Board package and set the board name */
var Board = xdc.loadPackage('ti.board');
Board.Settings.boardName = "evmAM572x";

/* Load the osal package -- required by board & interrupt example */
var osType = "tirtos";
var Osal = xdc.loadPackage('ti.osal');
Osal.Settings.osType = osType;
Osal.Settings.socType = socType;

/*use CSL package*/
var Csl = xdc.loadPackage('ti.csl');
Csl.Settings.deviceType = socType;

/* Load the MMCSD package */
var Mmcsd = xdc.loadPackage('ti.drv.mmcsd');
Mmcsd.Settings.enableProfiling = false;
Mmcsd.Settings.useDma = "false";
Mmcsd.Settings.socType= socType;

/* ================ Driver configuration ================ */


/*
 *  ======== IPC Configuration ========
 */
xdc.useModule('ti.ipc.ipcmgr.IpcMgr');

Program.argSize = 100;  /* minimum size */
Program.stack = 0x80000;

/* create a heap for MessageQ messages */
var HeapBuf = xdc.useModule('ti.sysbios.heaps.HeapBuf');
var params = new HeapBuf.Params;
params.align = 8;
params.blockSize = 512;
params.numBlocks = 256;
var msgHeap = HeapBuf.create(params);

var MessageQ  = xdc.useModule('ti.sdo.ipc.MessageQ');
MessageQ.registerHeapMeta(msgHeap, 0);

/* Setup MessageQ transport */
var VirtioSetup = xdc.useModule('ti.ipc.transports.TransportRpmsgSetup');
MessageQ.SetupTransportProxy = VirtioSetup;

/* Setup NameServer remote proxy */
var NameServer = xdc.useModule("ti.sdo.utils.NameServer");
var NsRemote = xdc.useModule("ti.ipc.namesrv.NameServerRemoteRpmsg");
NameServer.SetupProxy = NsRemote;

/* Enable Memory Translation module that operates on the BIOS Resource Table */
var Resource = xdc.useModule('ti.ipc.remoteproc.Resource');
Resource.loadSegment = Program.platform.codeMemory;

/* Override default resource table to add CMEM memory section*/
Resource.customTable = true;

/* load the configuration shared across cores  */
Program.global.procName = "DSP2";

/* configure processor names */
var procNameAry =  ["HOST", "IPU2", "IPU1", "DSP2", "DSP1"];

var MultiProc = xdc.useModule('ti.sdo.utils.MultiProc');
MultiProc.setConfig(Program.global.procName, procNameAry);

var BIOS        = xdc.useModule('ti.sysbios.BIOS');
BIOS.addUserStartupFunction('&IpcMgr_ipcStartup');

/* Add Shared Region module */
var SharedRegion = xdc.useModule('ti.sdo.ipc.SharedRegion');

/*
 *  ======== Instrumentation Configuration ========
 */

/* system logger */
var LoggerSys = xdc.useModule('xdc.runtime.LoggerSys');
var LoggerSysParams = new LoggerSys.Params();
var Defaults = xdc.useModule('xdc.runtime.Defaults');
Defaults.common$.logger = LoggerSys.create(LoggerSysParams);

/* enable runtime Diags_setMask() for non-XDC spec'd modules */
var Diags = xdc.useModule('xdc.runtime.Diags');
Diags.setMaskEnabled = true;

/* override diags mask for selected modules */
xdc.useModule('xdc.runtime.Main');
Diags.setMaskMeta("xdc.runtime.Main",
    Diags.ENTRY | Diags.EXIT | Diags.INFO | Diags.USER1, Diags.RUNTIME_ON);

var Registry = xdc.useModule('xdc.runtime.Registry');
Registry.common$.diags_ENTRY = Diags.RUNTIME_OFF;
Registry.common$.diags_EXIT  = Diags.RUNTIME_OFF;
Registry.common$.diags_INFO  = Diags.RUNTIME_OFF;
Registry.common$.diags_USER1 = Diags.RUNTIME_OFF;
Registry.common$.diags_LIFECYCLE = Diags.RUNTIME_OFF;
Registry.common$.diags_STATUS = Diags.RUNTIME_OFF;

var Main = xdc.useModule('xdc.runtime.Main');
Main.common$.diags_ASSERT = Diags.ALWAYS_ON;
Main.common$.diags_INTERNAL = Diags.ALWAYS_ON;

Program.sectMap[".test_data"] = "L2SRAM";
Program.sectMap[".mem_buff"] = "EXT_HEAP";
Program.sectMap[".adc_buff"] = "EXT_HEAP";

DSP2_config.bld

var Build = xdc.useModule('xdc.bld.BuildEnvironment');

var evmDRA7XX_ExtMemMapDsp = {
    EXT_CODE: {
        name: "EXT_CODE",
        base: 0x95000000,
        len:  0x00100000,
        space: "code",
        access: "RWX"
    },
    EXT_DATA: {
        name: "EXT_DATA",
        base: 0x95100000,
        len:  0x02000000,
        space: "data",
        access: "RW"
    },
    EXT_HEAP: {
        name: "EXT_HEAP",
        base: 0xAD800000,
        len:  0x09000000,
        space: "data",
        access: "RW"
    },
    EXC_DATA: {
        name: "EXC_DATA",
        base: 0x9F060000,
        len:  0x00010000,
        space: "data",
        access: "RW"
    },
    PM_DATA: {
        name: "PM_DATA",
        base: 0x9F070000,
        len:  0x00020000,
        space: "data",
        access: "RWX"  /* should this have execute perm? */
    },
};

Build.platformTable["ti.platforms.evmDRA7XX:dsp"] = {
    externalMemoryMap: [
        [ "EXT_CODE", evmDRA7XX_ExtMemMapDsp.EXT_CODE ],
        [ "EXT_DATA", evmDRA7XX_ExtMemMapDsp.EXT_DATA ],
        [ "EXT_HEAP", evmDRA7XX_ExtMemMapDsp.EXT_HEAP ],
        [ "EXC_DATA", evmDRA7XX_ExtMemMapDsp.EXC_DATA ],
        [ "PM_DATA", evmDRA7XX_ExtMemMapDsp.PM_DATA ],
    ],
    codeMemory: "EXT_CODE",
    dataMemory: "EXT_DATA",
    stackMemory: "EXT_DATA",
};

rsc_table_DSP2.h

#ifndef _RSC_TABLE_DSP_H_
#define _RSC_TABLE_DSP_H_

#include <ti/ipc/remoteproc/rsc_types.h>

/* DSP Memory Map */
#define L4_DRA7XX_BASE 0x4A000000

#define L4_PERIPHERAL_L4CFG (L4_DRA7XX_BASE)
#define DSP_PERIPHERAL_L4CFG 0x4A000000

#define L4_PERIPHERAL_L4PER1 0x48000000
#define DSP_PERIPHERAL_L4PER1 0x48000000

#define L4_PERIPHERAL_L4PER2 0x48400000
#define DSP_PERIPHERAL_L4PER2 0x48400000

#define L4_PERIPHERAL_L4PER3 0x48800000
#define DSP_PERIPHERAL_L4PER3 0x48800000

#define L4_PERIPHERAL_L4EMU 0x54000000
#define DSP_PERIPHERAL_L4EMU 0x54000000

#define L3_PERIPHERAL_DMM 0x4E000000
#define DSP_PERIPHERAL_DMM 0x4E000000

#define L3_TILER_MODE_0_1 0x60000000
#define DSP_TILER_MODE_0_1 0x60000000

#define L3_TILER_MODE_2 0x70000000
#define DSP_TILER_MODE_2 0x70000000

#define L3_TILER_MODE_3 0x78000000
#define DSP_TILER_MODE_3 0x78000000

//////////
#define L3_PERIPHERAL_EDMA 0x43300000
#define DSP_PERIPHERAL_EDMA 0x43300000

#define L3_PCIE_SS1_CONFIG_REG_BASE 0x51000000
#define DSP_PCIE_SS1_CONFIG_REG_BASE 0x51000000

#define L3_PCIE_SS1_CONFIG_SPACE_BASE 0x20000000
#define DSP_PCIE_SS1_CONFIG_SPACE_BASE 0x20000000
//////////////
#define DSP_MEM_TEXT 0x95000000
/* Co-locate alongside TILER region for easier flushing */
#define DSP_MEM_IOBUFS 0xBA300000
#define DSP_MEM_DATA 0x95100000
#define DSP_MEM_HEAP 0xAD800000

#define DSP_MEM_IPC_DATA 0x9F000000
#define DSP_MEM_IPC_VRING 0x99000000
#define DSP_MEM_RPMSG_VRING0 0x99000000
#define DSP_MEM_RPMSG_VRING1 0x99004000
#define DSP_MEM_VRING_BUFS0 0x99040000
#define DSP_MEM_VRING_BUFS1 0x99080000

#define DSP_MEM_IPC_VRING_SIZE SZ_1M
#define DSP_MEM_IPC_DATA_SIZE SZ_1M
#define DSP_MEM_TEXT_SIZE SZ_1M
#define DSP_MEM_DATA_SIZE (SZ_1M * 32)
#define DSP_MEM_HEAP_SIZE (SZ_1M * 144)
#define DSP_MEM_IOBUFS_SIZE (SZ_1M * 90)

/* NOTE: Make sure this matches what is configured in the linux device tree */
#define DSP_CMEM_IOBUFS 0xcc000000
#define PHYS_CMEM_IOBUFS 0xcc000000
#define DSP_CMEM_IOBUFS_SIZE (SZ_1M * 192)

/*
 * Assign fixed RAM addresses to facilitate a fixed MMU table.
 */

#define VAYU_DSP_2

/* See CMA BASE addresses in Linux side: arch/arm/mach-omap2/remoteproc.c */
#if defined(VAYU_DSP_1)
#define PHYS_MEM_IPC_VRING 0x91000000
#elif defined(VAYU_DSP_2)
#define PHYS_MEM_IPC_VRING 0x9F800000
#endif

/* Need to be identical to that of IPU */
#define PHYS_MEM_IOBUFS 0xBA300000

/*
 * Sizes of the virtqueues (expressed in number of buffers supported,
 * and must be power of 2)
 */
#define DSP_RPMSG_VQ0_SIZE 256
#define DSP_RPMSG_VQ1_SIZE 256

/* flip up bits whose indices represent features we support */
#define RPMSG_DSP_C0_FEATURES 1

struct my_resource_table {
  struct resource_table base;

  UInt32 offset[21]; /* Should match 'num' in actual definition */

  /* rpmsg vdev entry */
  struct fw_rsc_vdev rpmsg_vdev;
  struct fw_rsc_vdev_vring rpmsg_vring0;
  struct fw_rsc_vdev_vring rpmsg_vring1;

  /* text carveout entry */
  struct fw_rsc_carveout text_cout;

  /* data carveout entry */
  struct fw_rsc_carveout data_cout;

  /* heap carveout entry */
  struct fw_rsc_carveout heap_cout;

  /* ipcdata carveout entry */
  struct fw_rsc_carveout ipcdata_cout;

  /* trace entry */
  struct fw_rsc_trace trace;

  /* devmem entry */
  struct fw_rsc_devmem devmem0;

  /* devmem entry */
  struct fw_rsc_devmem devmem1;

  /* devmem entry */
  struct fw_rsc_devmem devmem2;

  /* devmem entry */
  struct fw_rsc_devmem devmem3;

  /* devmem entry */
  struct fw_rsc_devmem devmem4;

  /* devmem entry */
  struct fw_rsc_devmem devmem5;

  /* devmem entry */
  struct fw_rsc_devmem devmem6;

  /* devmem entry */
  struct fw_rsc_devmem devmem7;

  /* devmem entry */
  struct fw_rsc_devmem devmem8;

  /* devmem entry */
  struct fw_rsc_devmem devmem9;

  /* devmem entry */
  struct fw_rsc_devmem devmem10;

  /* devmem entry */
  struct fw_rsc_devmem devmem11;

  /* devmem entry */
  struct fw_rsc_devmem devmem12;

  /* devmem entry */
  struct fw_rsc_devmem devmem13;

  /* devmem entry */
  struct fw_rsc_devmem devmem14;
};

extern char ti_trace_SysMin_Module_State_0_outbuf__A;
#define TRACEBUFADDR (UInt32) & ti_trace_SysMin_Module_State_0_outbuf__A

#pragma DATA_SECTION(ti_ipc_remoteproc_ResourceTable, ".resource_table")
#pragma DATA_ALIGN(ti_ipc_remoteproc_ResourceTable, 4096)

struct my_resource_table ti_ipc_remoteproc_ResourceTable = {
    1,  /* we're the first version that implements this */
    21, /* number of entries in the table */
    0,
    0, /* reserved, must be zero */
    /* offsets to entries */
    {
        offsetof(struct my_resource_table, rpmsg_vdev),
        offsetof(struct my_resource_table, text_cout),
        offsetof(struct my_resource_table, data_cout),
        offsetof(struct my_resource_table, heap_cout),
        offsetof(struct my_resource_table, ipcdata_cout),
        offsetof(struct my_resource_table, trace),
        offsetof(struct my_resource_table, devmem0),
        offsetof(struct my_resource_table, devmem1),
        offsetof(struct my_resource_table, devmem2),
        offsetof(struct my_resource_table, devmem3),
        offsetof(struct my_resource_table, devmem4),
        offsetof(struct my_resource_table, devmem5),
        offsetof(struct my_resource_table, devmem6),
        offsetof(struct my_resource_table, devmem7),
        offsetof(struct my_resource_table, devmem8),
        offsetof(struct my_resource_table, devmem9),
        offsetof(struct my_resource_table, devmem10),
        offsetof(struct my_resource_table, devmem11),
        offsetof(struct my_resource_table, devmem12),
        offsetof(struct my_resource_table, devmem13),
        offsetof(struct my_resource_table, devmem14),
    },

    /* rpmsg vdev entry */
    {
        TYPE_VDEV,
        VIRTIO_ID_RPMSG,
        0,
        RPMSG_DSP_C0_FEATURES,
        0,
        0,
        0,
        2,
        {0, 0},
        /* no config data */
    },
    /* the two vrings */
    {DSP_MEM_RPMSG_VRING0, 4096, DSP_RPMSG_VQ0_SIZE, 1, 0},
    {DSP_MEM_RPMSG_VRING1, 4096, DSP_RPMSG_VQ1_SIZE, 2, 0},

    {
        TYPE_CARVEOUT, DSP_MEM_TEXT, 0, DSP_MEM_TEXT_SIZE, 0, 0, "DSP_MEM_TEXT",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_DATA, 0, DSP_MEM_DATA_SIZE, 0, 0, "DSP_MEM_DATA",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_HEAP, 0, DSP_MEM_HEAP_SIZE, 0, 0, "DSP_MEM_HEAP",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_IPC_DATA, 0, DSP_MEM_IPC_DATA_SIZE, 0, 0,
        "DSP_MEM_IPC_DATA",
    },

    {
        TYPE_TRACE, TRACEBUFADDR, 0x8000, 0, "trace:dsp",
    },

    {
        TYPE_DEVMEM, DSP_MEM_IPC_VRING, PHYS_MEM_IPC_VRING,
        DSP_MEM_IPC_VRING_SIZE, 0, 0, "DSP_MEM_IPC_VRING",
    },

    {
        TYPE_DEVMEM, DSP_MEM_IOBUFS, PHYS_MEM_IOBUFS, DSP_MEM_IOBUFS_SIZE, 0, 0,
        "DSP_MEM_IOBUFS",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_0_1, L3_TILER_MODE_0_1, SZ_256M, 0, 0,
        "DSP_TILER_MODE_0_1",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_2, L3_TILER_MODE_2, SZ_128M, 0, 0,
        "DSP_TILER_MODE_2",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_3, L3_TILER_MODE_3, SZ_128M, 0, 0,
        "DSP_TILER_MODE_3",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4CFG, L4_PERIPHERAL_L4CFG, SZ_16M, 0, 0,
        "DSP_PERIPHERAL_L4CFG",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER1, L4_PERIPHERAL_L4PER1, SZ_2M, 0, 0,
        "DSP_PERIPHERAL_L4PER1",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER2, L4_PERIPHERAL_L4PER2, SZ_4M, 0, 0,
        "DSP_PERIPHERAL_L4PER2",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER3, L4_PERIPHERAL_L4PER3, SZ_8M, 0, 0,
        "DSP_PERIPHERAL_L4PER3",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4EMU, L4_PERIPHERAL_L4EMU, SZ_16M, 0, 0,
        "DSP_PERIPHERAL_L4EMU",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_DMM, L3_PERIPHERAL_DMM, SZ_1M, 0, 0,
        "DSP_PERIPHERAL_DMM",
    },

    {
        TYPE_DEVMEM, DSP_CMEM_IOBUFS, PHYS_CMEM_IOBUFS, DSP_CMEM_IOBUFS_SIZE, 0,
        0, "DSP_CMEM_IOBUFS",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_EDMA, L3_PERIPHERAL_EDMA, SZ_1M*3, 0,
        0, "DSP_EDMA",
    },

    {
        TYPE_DEVMEM, DSP_PCIE_SS1_CONFIG_REG_BASE, L3_PCIE_SS1_CONFIG_REG_BASE, SZ_8M, 0,
        0, "DSP_PCIE_REG_BASE",
    },

    {
        TYPE_DEVMEM, DSP_PCIE_SS1_CONFIG_SPACE_BASE, L3_PCIE_SS1_CONFIG_SPACE_BASE, SZ_256M, 0,
        0, "DSP_PCIE_CONFIG_BASE",
    },
};

#endif /* _RSC_TABLE_DSP_H_ */

device_tree_file

------cut here-----------------
reserved-memory {
                #address-cells = <2>;
                #size-cells = <2>;
                ranges;

                ipu1_memory_region: ipu1-memory@9f000000 {
                        compatible = "shared-dma-pool";
			reg = <0x0 0x9f000000 0x0 0x0080000>;
                        reusable;
                        status = "disabled";
                };

                dsp1_memory_region: dsp1-memory@91000000 {
                        compatible = "shared-dma-pool";
			reg = <0x0 0x91000000 0x0 0xE000000>;
                        reusable;
                        status = "okay";
                };

                ipu2_memory_region: ipu2-memory@90800000 {
                        compatible = "shared-dma-pool";
			reg = <0x0 0x90800000 0x0 0x0080000>;
                        reusable;
                        status = "disabled";
                };

                dsp2_memory_region: dsp2-memory@9f800000 {
                        compatible = "shared-dma-pool";
                        reg = <0x0 0x9f800000 0x0 0xE000000>;
                        reusable;
                        status = "okay";
                       // phandle = <0x121>;
                };

                cmem_block_mem_0: cmem_block_mem@c0000000 {
                        reg = <0x0 0xc0000000 0x0 0x18000000>;
                        no-map;
                        status = "okay";
                };

        };

        cmem {
                compatible = "ti,cmem";
                #address-cells = <1>;
                #size-cells = <0>;

                #pool-size-cells = <2>;

                status = "okay";

                cmem_block_0: cmem_block@0 {
                        reg = <0>;
                        memory-region = <&cmem_block_mem_0>;
                        cmem-buf-pools = <1 0x0 0x18000000>;
                };

        };

------cut here-----------------

Thanks,

Shashank

  • 0
    TI__Mastermind 31645 points

    Hi Shashank,

    I am low in bandwidth at the moment but I will try to look into your issue this  week and get back to you next week.

    -Josue

  • 0 in reply to Josue Zamitiz-Ayala
    Prodigy 15 points

    Hi Josue,

    Have you got time to look into this issue? Any leads?

    Thanks,

    Shashank

  • 0 in reply to Shashank vaidya
    TI__Mastermind 31645 points

    Hello Shashank,

    Unfortunately I have not had time to look into this one yet. Remind me, what SDKs are you using?

    Based on your usage of a resource table I can assume you are also using a Linux SDK.

    -Josue

  • 0 in reply to Josue Zamitiz-Ayala
    Prodigy 15 points

    Hi Josue,

    Yea the ARM core is running on Linux kernel 4.19.79 and the sysbios version running on DSP is 6.52.00.12

    Thanks,

    Shashank

  • 0 in reply to Shashank vaidya
    TI__Mastermind 31645 points

    Shashank,

    So you are using SDK Linux 6.x and an older version of SDK RTOS? can you specify your SDK versions please?

  • 0 in reply to Josue Zamitiz-Ayala
    Prodigy 15 points

    Hi Josue,

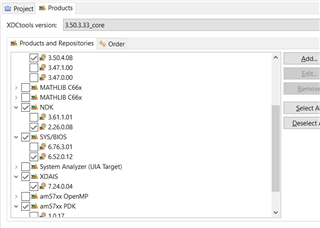

    We are using SDK version 6_03_00_106

    Thanks,

    Shashank

  • 0 in reply to Shashank vaidya
    TI__Mastermind 31645 points

    Shashank,

    Is this for both Linux and RTOS? the reason I am asking is that the BIOS version you mentioned

    Shashank vaidya said:
    sysbios version running on DSP is 6.52.00.12

    does not correspond to the RTOS SDK that is meant to pair with SDK Linux 6_03_00_106. See the release notes of the same: https://software-dl.ti.com/processor-sdk-rtos/esd/docs/06_03_00_106/rtos/index_release_specific.html

    It is not recommended to mix and match releases because functionality is not validated nor tested.

    I'm not saying this is the reason your application is failing, but in general it is not good practice.

    I will try to dive deeper into this next week.

    -Josue

  • 0 in reply to Josue Zamitiz-Ayala
    Prodigy 15 points

    Hi Josue,

    Sorry for the confusion here, I couldn't find the SDK version through CCS studio, so I manually gone through the program directory and found the version.

    I'll share the screenshot of my ccs studio build configuration, If this info is not what you expecting can you point out from where I can find this specific info?

    Installed SDK's in my CCS studio

    On ARM side

    Thanks,

    Shashank

  • 0 in reply to Shashank vaidya
    TI__Mastermind 31645 points

    Shashank,

    Thanks for the confirmation. Looks like you have the correct bios installed but you are using the one from an older SDK and not the one from the corresponding SDK version (6.76.3.01).

    I will hopefully make time to look into your query this week.

    -Josue

  • 0 in reply to Josue Zamitiz-Ayala
    Prodigy 15 points

    Hi Josue,

    An update from my side, I initialized shared memory SR_0 in both the DSP as per the example, Now the DSP1 is loading fine but when I try to load DSP2 I get a memory fault error, I get this error as I'm trying to use already initialized memory but if my understanding is correct this shouldn't happen as in ipc.cfg.xs the owner of the shared memory is DSP1 and the same ipc.cfg.xs is copied to DSP2 path too, Correct me if I'm wrong...

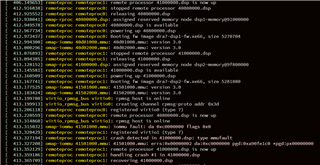

    Kernel logs when I try to load dsp1 and dsp2

    Updated Resource table for DSP1

    /*
 * Copyright (c) 2017, Texas Instruments Incorporated
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 *
 * *  Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 * *  Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in the
 *    documentation and/or other materials provided with the distribution.
 *
 * *  Neither the name of Texas Instruments Incorporated nor the names of
 *    its contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
 * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
 * THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
 * PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
 * CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
 * EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
 * PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
 * OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
 * WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
 * OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
 * EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 */

/*
 *  ======== rsc_table_dsp.h ========
 *
 *  Define the resource table entries for all DSP cores. This will be
 *  incorporated into corresponding base images, and used by the remoteproc
 *  on the host-side to allocated/reserve resources.
 *
 */

#ifndef _RSC_TABLE_DSP_H_
#define _RSC_TABLE_DSP_H_

#include <ti/ipc/remoteproc/rsc_types.h>

/* DSP Memory Map */
#define L4_DRA7XX_BASE 0x4A000000

#define L4_PERIPHERAL_L4CFG (L4_DRA7XX_BASE)
#define DSP_PERIPHERAL_L4CFG 0x4A000000

#define L4_PERIPHERAL_L4PER1 0x48000000
#define DSP_PERIPHERAL_L4PER1 0x48000000

#define L4_PERIPHERAL_L4PER2 0x48400000
#define DSP_PERIPHERAL_L4PER2 0x48400000

#define L4_PERIPHERAL_L4PER3 0x48800000
#define DSP_PERIPHERAL_L4PER3 0x48800000

#define L4_PERIPHERAL_L4EMU 0x54000000
#define DSP_PERIPHERAL_L4EMU 0x54000000

#define L3_PERIPHERAL_DMM 0x4E000000
#define DSP_PERIPHERAL_DMM 0x4E000000

#define L3_TILER_MODE_0_1 0x60000000
#define DSP_TILER_MODE_0_1 0x60000000

#define L3_TILER_MODE_2 0x70000000
#define DSP_TILER_MODE_2 0x70000000

#define L3_TILER_MODE_3 0x78000000
#define DSP_TILER_MODE_3 0x78000000

//////////
#define L3_PERIPHERAL_EDMA 0x43300000
#define DSP_PERIPHERAL_EDMA 0x43300000

#define L3_PCIE_SS1_CONFIG_REG_BASE 0x51000000
#define DSP_PCIE_SS1_CONFIG_REG_BASE 0x51000000

#define L3_PCIE_SS1_CONFIG_SPACE_BASE 0x20000000
#define DSP_PCIE_SS1_CONFIG_SPACE_BASE 0x20000000
//////////////
#define DSP_MEM_TEXT 0x95000000
/* Co-locate alongside TILER region for easier flushing */
#define DSP_MEM_IOBUFS 0xBA300000
#define DSP_MEM_DATA 0x95100000
#define DSP_MEM_HEAP 0x80000000

#define DSP_SR0_VIRT            0xC0000000
#define DSP_SR0                 0xC0000000

#define DSP_MEM_IPC_DATA 0x9F000000
#define DSP_MEM_IPC_VRING 0x99000000
#define DSP_MEM_RPMSG_VRING0 0x99000000
#define DSP_MEM_RPMSG_VRING1 0x99004000
#define DSP_MEM_VRING_BUFS0 0x99040000
#define DSP_MEM_VRING_BUFS1 0x99080000

#define DSP_MEM_IPC_VRING_SIZE SZ_1M
#define DSP_MEM_IPC_DATA_SIZE SZ_1M
#define DSP_MEM_TEXT_SIZE SZ_1M
#define DSP_MEM_DATA_SIZE (SZ_1M * 32)
#define DSP_MEM_HEAP_SIZE (SZ_1M * 144)
#define DSP_MEM_IOBUFS_SIZE (SZ_1M * 90)
#define DSP_SR0_SIZE            (SZ_1M * 1)

/* NOTE: Make sure this matches what is configured in the linux device tree */
#define DSP_CMEM_IOBUFS 0xc0000000
#define PHYS_CMEM_IOBUFS 0xc0000000
#define DSP_CMEM_IOBUFS_SIZE (SZ_1M * 192)

/*
 * Assign fixed RAM addresses to facilitate a fixed MMU table.
 */

#define VAYU_DSP_1

/* See CMA BASE addresses in Linux side: arch/arm/mach-omap2/remoteproc.c */
#if defined(VAYU_DSP_1)
#define PHYS_MEM_IPC_VRING 0x91000000
#elif defined(VAYU_DSP_2)
#define PHYS_MEM_IPC_VRING 0x9F000000
#endif

/* Need to be identical to that of IPU */
#define PHYS_MEM_IOBUFS 0xBA300000

/*
 * Sizes of the virtqueues (expressed in number of buffers supported,
 * and must be power of 2)
 */
#define DSP_RPMSG_VQ0_SIZE 256
#define DSP_RPMSG_VQ1_SIZE 256

/* flip up bits whose indices represent features we support */
#define RPMSG_DSP_C0_FEATURES 1

struct my_resource_table {
  struct resource_table base;

  UInt32 offset[21]; /* Should match 'num' in actual definition */

  /* rpmsg vdev entry */
  struct fw_rsc_vdev rpmsg_vdev;
  struct fw_rsc_vdev_vring rpmsg_vring0;
  struct fw_rsc_vdev_vring rpmsg_vring1;

  /* text carveout entry */
  struct fw_rsc_carveout text_cout;

  /* data carveout entry */
  struct fw_rsc_carveout data_cout;

  /* heap carveout entry */
  struct fw_rsc_carveout heap_cout;

  /* ipcdata carveout entry */
  struct fw_rsc_carveout ipcdata_cout;

  /* trace entry */
  struct fw_rsc_trace trace;

  /* devmem entry */
  struct fw_rsc_devmem devmem0;

  /* devmem entry */
  struct fw_rsc_devmem devmem1;

  /* devmem entry */
  struct fw_rsc_devmem devmem2;

  /* devmem entry */
  struct fw_rsc_devmem devmem3;

  /* devmem entry */
  struct fw_rsc_devmem devmem4;

  /* devmem entry */
  struct fw_rsc_devmem devmem5;

  /* devmem entry */
  struct fw_rsc_devmem devmem6;

  /* devmem entry */
  struct fw_rsc_devmem devmem7;

  /* devmem entry */
  struct fw_rsc_devmem devmem8;

  /* devmem entry */
  struct fw_rsc_devmem devmem9;

  /* devmem entry */
  struct fw_rsc_devmem devmem10;

  /* devmem entry */
  struct fw_rsc_devmem devmem11;

  /* devmem entry */
  struct fw_rsc_devmem devmem12;

  /* devmem entry */
  struct fw_rsc_devmem devmem13;

  /* devmem entry */
  struct fw_rsc_devmem devmem14;
};

extern char ti_trace_SysMin_Module_State_0_outbuf__A;
#define TRACEBUFADDR (UInt32) & ti_trace_SysMin_Module_State_0_outbuf__A

#pragma DATA_SECTION(ti_ipc_remoteproc_ResourceTable, ".resource_table")
#pragma DATA_ALIGN(ti_ipc_remoteproc_ResourceTable, 4096)

struct my_resource_table ti_ipc_remoteproc_ResourceTable = {
    1,  /* we're the first version that implements this */
    21, /* number of entries in the table */
    0,
    0, /* reserved, must be zero */
    /* offsets to entries */
    {
        offsetof(struct my_resource_table, rpmsg_vdev),
        offsetof(struct my_resource_table, text_cout),
        offsetof(struct my_resource_table, data_cout),
        offsetof(struct my_resource_table, heap_cout),
        offsetof(struct my_resource_table, ipcdata_cout),
        offsetof(struct my_resource_table, trace),
        offsetof(struct my_resource_table, devmem0),
        offsetof(struct my_resource_table, devmem1),
        offsetof(struct my_resource_table, devmem2),
        offsetof(struct my_resource_table, devmem3),
        offsetof(struct my_resource_table, devmem4),
        offsetof(struct my_resource_table, devmem5),
        offsetof(struct my_resource_table, devmem6),
        offsetof(struct my_resource_table, devmem7),
        offsetof(struct my_resource_table, devmem8),
        offsetof(struct my_resource_table, devmem9),
        offsetof(struct my_resource_table, devmem10),
        offsetof(struct my_resource_table, devmem11),
        offsetof(struct my_resource_table, devmem12),
        offsetof(struct my_resource_table, devmem13),
        offsetof(struct my_resource_table, devmem14),
    },

    /* rpmsg vdev entry */
    {
        TYPE_VDEV,
        VIRTIO_ID_RPMSG,
        0,
        RPMSG_DSP_C0_FEATURES,
        0,
        0,
        0,
        2,
        {0, 0},
        /* no config data */
    },
    /* the two vrings */
    {DSP_MEM_RPMSG_VRING0, 4096, DSP_RPMSG_VQ0_SIZE, 1, 0},
    {DSP_MEM_RPMSG_VRING1, 4096, DSP_RPMSG_VQ1_SIZE, 2, 0},

    {
        TYPE_CARVEOUT, DSP_MEM_TEXT, 0, DSP_MEM_TEXT_SIZE, 0, 0, "DSP_MEM_TEXT",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_DATA, 0, DSP_MEM_DATA_SIZE, 0, 0, "DSP_MEM_DATA",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_HEAP, 0, DSP_MEM_HEAP_SIZE, 0, 0, "DSP_MEM_HEAP",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_IPC_DATA, 0, DSP_MEM_IPC_DATA_SIZE, 0, 0,
        "DSP_MEM_IPC_DATA",
    },

    {
        TYPE_TRACE, TRACEBUFADDR, 0x8000, 0, "trace:dsp",
    },

    {
        TYPE_DEVMEM, DSP_MEM_IPC_VRING, PHYS_MEM_IPC_VRING,
        DSP_MEM_IPC_VRING_SIZE, 0, 0, "DSP_MEM_IPC_VRING",
    },

    {
        TYPE_DEVMEM, DSP_MEM_IOBUFS, PHYS_MEM_IOBUFS, DSP_MEM_IOBUFS_SIZE, 0, 0,
        "DSP_MEM_IOBUFS",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_0_1, L3_TILER_MODE_0_1, SZ_256M, 0, 0,
        "DSP_TILER_MODE_0_1",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_2, L3_TILER_MODE_2, SZ_128M, 0, 0,
        "DSP_TILER_MODE_2",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_3, L3_TILER_MODE_3, SZ_128M, 0, 0,
        "DSP_TILER_MODE_3",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4CFG, L4_PERIPHERAL_L4CFG, SZ_16M, 0, 0,
        "DSP_PERIPHERAL_L4CFG",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER1, L4_PERIPHERAL_L4PER1, SZ_2M, 0, 0,
        "DSP_PERIPHERAL_L4PER1",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER2, L4_PERIPHERAL_L4PER2, SZ_4M, 0, 0,
        "DSP_PERIPHERAL_L4PER2",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER3, L4_PERIPHERAL_L4PER3, SZ_8M, 0, 0,
        "DSP_PERIPHERAL_L4PER3",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4EMU, L4_PERIPHERAL_L4EMU, SZ_16M, 0, 0,
        "DSP_PERIPHERAL_L4EMU",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_DMM, L3_PERIPHERAL_DMM, SZ_1M, 0, 0,
        "DSP_PERIPHERAL_DMM",
    },

    {
        TYPE_DEVMEM, DSP_CMEM_IOBUFS, PHYS_CMEM_IOBUFS, DSP_CMEM_IOBUFS_SIZE, 0,
        0, "DSP_CMEM_IOBUFS",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_EDMA, L3_PERIPHERAL_EDMA, SZ_1M*3, 0,
        0, "DSP_EDMA",
    },

    {
        TYPE_DEVMEM, DSP_PCIE_SS1_CONFIG_REG_BASE, L3_PCIE_SS1_CONFIG_REG_BASE, SZ_8M, 0,
        0, "DSP_PCIE_REG_BASE",
    },

    {
        TYPE_DEVMEM, DSP_PCIE_SS1_CONFIG_SPACE_BASE, L3_PCIE_SS1_CONFIG_SPACE_BASE, SZ_256M, 0,
        0, "DSP_PCIE_CONFIG_BASE",
    },
    {
           TYPE_DEVMEM,
           DSP_SR0_VIRT, DSP_SR0,
           DSP_SR0_SIZE, 0, 0, "DSP_SR0",
       },
};

#endif /* _RSC_TABLE_DSP_H_ */

    updated config.bld file for DSP1

    /*
 *  ======== config.bld ========
 *
 */
var Build = xdc.useModule('xdc.bld.BuildEnvironment');

/*  Memory Map for ti.platforms.evmDRA7XX:dsp
 *
 *  --- External Memory ---
 *  Virtual     Physical        Size            Comment
 *  ------------------------------------------------------------------------
 *  9500_0000   ????_????    10_0000  (  ~1 MB) EXT_CODE
 *  9510_0000   ????_????   200_0000  (  32 MB) EXT_DATA
 *  8000_0000   ????_????   900_0000  ( 144 MB) EXT_HEAP
 *  9F00_0000   9F00_0000     6_0000  ( 384 kB) TRACE_BUF
 *  9F06_0000   9F06_0000     1_0000  (  64 kB) EXC_DATA
 *  9F07_0000   9F07_0000     2_0000  ( 128 kB) PM_DATA (Power mgmt)
 */
 var evmDRA7XX_SR_0 = {
        name: "SR_0", space: "data", access: "RWX",
        base: 0xC0000000, len: 0x100000,
        comment: "SR#0 Memory (1 MB)"
};
var evmDRA7XX_ExtMemMapDsp = {
    EXT_CODE: {
        name: "EXT_CODE",
        base: 0x95000000,
        len:  0x00100000,
        space: "code",
        access: "RWX"
    },
    EXT_DATA: {
        name: "EXT_DATA",
        base: 0x95100000,
        len:  0x02000000,
        space: "data",
        access: "RW"
    },
    EXT_HEAP: {
        name: "EXT_HEAP",
        base: 0x80000000,
        len:  0x09000000,
        space: "data",
        access: "RW"
    },
    EXC_DATA: {
        name: "EXC_DATA",
        base: 0x9F060000,
        len:  0x00010000,
        space: "data",
        access: "RW"
    },
    PM_DATA: {
        name: "PM_DATA",
        base: 0x9F070000,
        len:  0x00020000,
        space: "data",
        access: "RWX"  /* should this have execute perm? */
    },
    SR_0: {
        name: evmDRA7XX_SR_0.name,
        base: evmDRA7XX_SR_0.base,
        len:  evmDRA7XX_SR_0.len,
        space: "data",
        access: "RW"
    }
};

Build.platformTable["ti.platforms.evmDRA7XX:dsp"] = {
    externalMemoryMap: [
        [ "EXT_CODE", evmDRA7XX_ExtMemMapDsp.EXT_CODE ],
        [ "EXT_DATA", evmDRA7XX_ExtMemMapDsp.EXT_DATA ],
        [ "EXT_HEAP", evmDRA7XX_ExtMemMapDsp.EXT_HEAP ],
        [ "EXC_DATA", evmDRA7XX_ExtMemMapDsp.EXC_DATA ],
        [ "PM_DATA", evmDRA7XX_ExtMemMapDsp.PM_DATA ],
        [ evmDRA7XX_SR_0.name, evmDRA7XX_ExtMemMapDsp.SR_0 ],
    ],
    codeMemory: "EXT_CODE",
    dataMemory: "EXT_DATA",
    stackMemory: "EXT_DATA",
};

    Updated Resource table for DSP2

    /*
 * Copyright (c) 2017, Texas Instruments Incorporated
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 *
 * *  Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 * *  Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in the
 *    documentation and/or other materials provided with the distribution.
 *
 * *  Neither the name of Texas Instruments Incorporated nor the names of
 *    its contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
 * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
 * THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
 * PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
 * CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
 * EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
 * PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
 * OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
 * WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
 * OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
 * EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 */

/*
 *  ======== rsc_table_dsp.h ========
 *
 *  Define the resource table entries for all DSP cores. This will be
 *  incorporated into corresponding base images, and used by the remoteproc
 *  on the host-side to allocated/reserve resources.
 *
 */

#ifndef _RSC_TABLE_DSP_H_
#define _RSC_TABLE_DSP_H_

#include <ti/ipc/remoteproc/rsc_types.h>

/* DSP Memory Map */
#define L4_DRA7XX_BASE 0x4A000000

#define L4_PERIPHERAL_L4CFG (L4_DRA7XX_BASE)
#define DSP_PERIPHERAL_L4CFG 0x4A000000

#define L4_PERIPHERAL_L4PER1 0x48000000
#define DSP_PERIPHERAL_L4PER1 0x48000000

#define L4_PERIPHERAL_L4PER2 0x48400000
#define DSP_PERIPHERAL_L4PER2 0x48400000

#define L4_PERIPHERAL_L4PER3 0x48800000
#define DSP_PERIPHERAL_L4PER3 0x48800000

#define L4_PERIPHERAL_L4EMU 0x54000000
#define DSP_PERIPHERAL_L4EMU 0x54000000

#define L3_PERIPHERAL_DMM 0x4E000000
#define DSP_PERIPHERAL_DMM 0x4E000000

#define L3_TILER_MODE_0_1 0x60000000
#define DSP_TILER_MODE_0_1 0x60000000

#define L3_TILER_MODE_2 0x70000000
#define DSP_TILER_MODE_2 0x70000000

#define L3_TILER_MODE_3 0x78000000
#define DSP_TILER_MODE_3 0x78000000

//////////
#define L3_PERIPHERAL_EDMA 0x43300000
#define DSP_PERIPHERAL_EDMA 0x43300000

#define L3_PCIE_SS1_CONFIG_REG_BASE 0x51000000
#define DSP_PCIE_SS1_CONFIG_REG_BASE 0x51000000

#define L3_PCIE_SS1_CONFIG_SPACE_BASE 0x20000000
#define DSP_PCIE_SS1_CONFIG_SPACE_BASE 0x20000000
//////////////
#define DSP_MEM_TEXT 0x95000000
/* Co-locate alongside TILER region for easier flushing */
#define DSP_MEM_IOBUFS 0xBA300000
#define DSP_MEM_DATA 0x95100000
#define DSP_MEM_HEAP 0xAD800000

#define DSP_SR0_VIRT            0xC0000000
#define DSP_SR0                 0xC0000000

#define DSP_MEM_IPC_DATA 0x9F000000
#define DSP_MEM_IPC_VRING 0x99000000
#define DSP_MEM_RPMSG_VRING0 0x99000000
#define DSP_MEM_RPMSG_VRING1 0x99004000
#define DSP_MEM_VRING_BUFS0 0x99040000
#define DSP_MEM_VRING_BUFS1 0x99080000

#define DSP_MEM_IPC_VRING_SIZE SZ_1M
#define DSP_MEM_IPC_DATA_SIZE SZ_1M
#define DSP_MEM_TEXT_SIZE SZ_1M
#define DSP_MEM_DATA_SIZE (SZ_1M * 32)
#define DSP_MEM_HEAP_SIZE (SZ_1M * 144)
#define DSP_MEM_IOBUFS_SIZE (SZ_1M * 90)
#define DSP_SR0_SIZE            (SZ_1M * 1)

/* NOTE: Make sure this matches what is configured in the linux device tree */
#define DSP_CMEM_IOBUFS 0xcc000000
#define PHYS_CMEM_IOBUFS 0xcc000000
#define DSP_CMEM_IOBUFS_SIZE (SZ_1M * 192)

/*
 * Assign fixed RAM addresses to facilitate a fixed MMU table.
 */

#define VAYU_DSP_2

/* See CMA BASE addresses in Linux side: arch/arm/mach-omap2/remoteproc.c */
#if defined(VAYU_DSP_1)
#define PHYS_MEM_IPC_VRING 0x91000000
#elif defined(VAYU_DSP_2)
#define PHYS_MEM_IPC_VRING 0x9F800000
#endif

/* Need to be identical to that of IPU */
#define PHYS_MEM_IOBUFS 0xBA300000

/*
 * Sizes of the virtqueues (expressed in number of buffers supported,
 * and must be power of 2)
 */
#define DSP_RPMSG_VQ0_SIZE 256
#define DSP_RPMSG_VQ1_SIZE 256

/* flip up bits whose indices represent features we support */
#define RPMSG_DSP_C0_FEATURES 1

struct my_resource_table {
  struct resource_table base;

  UInt32 offset[21]; /* Should match 'num' in actual definition */

  /* rpmsg vdev entry */
  struct fw_rsc_vdev rpmsg_vdev;
  struct fw_rsc_vdev_vring rpmsg_vring0;
  struct fw_rsc_vdev_vring rpmsg_vring1;

  /* text carveout entry */
  struct fw_rsc_carveout text_cout;

  /* data carveout entry */
  struct fw_rsc_carveout data_cout;

  /* heap carveout entry */
  struct fw_rsc_carveout heap_cout;

  /* ipcdata carveout entry */
  struct fw_rsc_carveout ipcdata_cout;

  /* trace entry */
  struct fw_rsc_trace trace;

  /* devmem entry */
  struct fw_rsc_devmem devmem0;

  /* devmem entry */
  struct fw_rsc_devmem devmem1;

  /* devmem entry */
  struct fw_rsc_devmem devmem2;

  /* devmem entry */
  struct fw_rsc_devmem devmem3;

  /* devmem entry */
  struct fw_rsc_devmem devmem4;

  /* devmem entry */
  struct fw_rsc_devmem devmem5;

  /* devmem entry */
  struct fw_rsc_devmem devmem6;

  /* devmem entry */
  struct fw_rsc_devmem devmem7;

  /* devmem entry */
  struct fw_rsc_devmem devmem8;

  /* devmem entry */
  struct fw_rsc_devmem devmem9;

  /* devmem entry */
  struct fw_rsc_devmem devmem10;

  /* devmem entry */
  struct fw_rsc_devmem devmem11;

  /* devmem entry */
  struct fw_rsc_devmem devmem12;

  /* devmem entry */
  struct fw_rsc_devmem devmem13;

  /* devmem entry */
  struct fw_rsc_devmem devmem14;
};

extern char ti_trace_SysMin_Module_State_0_outbuf__A;
#define TRACEBUFADDR (UInt32) & ti_trace_SysMin_Module_State_0_outbuf__A

#pragma DATA_SECTION(ti_ipc_remoteproc_ResourceTable, ".resource_table")
#pragma DATA_ALIGN(ti_ipc_remoteproc_ResourceTable, 4096)

struct my_resource_table ti_ipc_remoteproc_ResourceTable = {
    1,  /* we're the first version that implements this */
    21, /* number of entries in the table */
    0,
    0, /* reserved, must be zero */
    /* offsets to entries */
    {
        offsetof(struct my_resource_table, rpmsg_vdev),
        offsetof(struct my_resource_table, text_cout),
        offsetof(struct my_resource_table, data_cout),
        offsetof(struct my_resource_table, heap_cout),
        offsetof(struct my_resource_table, ipcdata_cout),
        offsetof(struct my_resource_table, trace),
        offsetof(struct my_resource_table, devmem0),
        offsetof(struct my_resource_table, devmem1),
        offsetof(struct my_resource_table, devmem2),
        offsetof(struct my_resource_table, devmem3),
        offsetof(struct my_resource_table, devmem4),
        offsetof(struct my_resource_table, devmem5),
        offsetof(struct my_resource_table, devmem6),
        offsetof(struct my_resource_table, devmem7),
        offsetof(struct my_resource_table, devmem8),
        offsetof(struct my_resource_table, devmem9),
        offsetof(struct my_resource_table, devmem10),
        offsetof(struct my_resource_table, devmem11),
        offsetof(struct my_resource_table, devmem12),
        offsetof(struct my_resource_table, devmem13),
        offsetof(struct my_resource_table, devmem14),
    },

    /* rpmsg vdev entry */
    {
        TYPE_VDEV,
        VIRTIO_ID_RPMSG,
        0,
        RPMSG_DSP_C0_FEATURES,
        0,
        0,
        0,
        2,
        {0, 0},
        /* no config data */
    },
    /* the two vrings */
    {DSP_MEM_RPMSG_VRING0, 4096, DSP_RPMSG_VQ0_SIZE, 1, 0},
    {DSP_MEM_RPMSG_VRING1, 4096, DSP_RPMSG_VQ1_SIZE, 2, 0},

    {
        TYPE_CARVEOUT, DSP_MEM_TEXT, 0, DSP_MEM_TEXT_SIZE, 0, 0, "DSP_MEM_TEXT",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_DATA, 0, DSP_MEM_DATA_SIZE, 0, 0, "DSP_MEM_DATA",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_HEAP, 0, DSP_MEM_HEAP_SIZE, 0, 0, "DSP_MEM_HEAP",
    },

    {
        TYPE_CARVEOUT, DSP_MEM_IPC_DATA, 0, DSP_MEM_IPC_DATA_SIZE, 0, 0,
        "DSP_MEM_IPC_DATA",
    },

    {
        TYPE_TRACE, TRACEBUFADDR, 0x8000, 0, "trace:dsp",
    },

    {
        TYPE_DEVMEM, DSP_MEM_IPC_VRING, PHYS_MEM_IPC_VRING,
        DSP_MEM_IPC_VRING_SIZE, 0, 0, "DSP_MEM_IPC_VRING",
    },

    {
        TYPE_DEVMEM, DSP_MEM_IOBUFS, PHYS_MEM_IOBUFS, DSP_MEM_IOBUFS_SIZE, 0, 0,
        "DSP_MEM_IOBUFS",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_0_1, L3_TILER_MODE_0_1, SZ_256M, 0, 0,
        "DSP_TILER_MODE_0_1",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_2, L3_TILER_MODE_2, SZ_128M, 0, 0,
        "DSP_TILER_MODE_2",
    },

    {
        TYPE_DEVMEM, DSP_TILER_MODE_3, L3_TILER_MODE_3, SZ_128M, 0, 0,
        "DSP_TILER_MODE_3",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4CFG, L4_PERIPHERAL_L4CFG, SZ_16M, 0, 0,
        "DSP_PERIPHERAL_L4CFG",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER1, L4_PERIPHERAL_L4PER1, SZ_2M, 0, 0,
        "DSP_PERIPHERAL_L4PER1",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER2, L4_PERIPHERAL_L4PER2, SZ_4M, 0, 0,
        "DSP_PERIPHERAL_L4PER2",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4PER3, L4_PERIPHERAL_L4PER3, SZ_8M, 0, 0,
        "DSP_PERIPHERAL_L4PER3",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_L4EMU, L4_PERIPHERAL_L4EMU, SZ_16M, 0, 0,
        "DSP_PERIPHERAL_L4EMU",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_DMM, L3_PERIPHERAL_DMM, SZ_1M, 0, 0,
        "DSP_PERIPHERAL_DMM",
    },

    {
        TYPE_DEVMEM, DSP_CMEM_IOBUFS, PHYS_CMEM_IOBUFS, DSP_CMEM_IOBUFS_SIZE, 0,
        0, "DSP_CMEM_IOBUFS",
    },

    {
        TYPE_DEVMEM, DSP_PERIPHERAL_EDMA, L3_PERIPHERAL_EDMA, SZ_1M*3, 0,
        0, "DSP_EDMA",
    },

    {
        TYPE_DEVMEM, DSP_PCIE_SS1_CONFIG_REG_BASE, L3_PCIE_SS1_CONFIG_REG_BASE, SZ_8M, 0,
        0, "DSP_PCIE_REG_BASE",
    },

    {
        TYPE_DEVMEM, DSP_PCIE_SS1_CONFIG_SPACE_BASE, L3_PCIE_SS1_CONFIG_SPACE_BASE, SZ_256M, 0,
        0, "DSP_PCIE_CONFIG_BASE",
    },
    {
           TYPE_DEVMEM,
           DSP_SR0_VIRT, DSP_SR0,
           DSP_SR0_SIZE, 0, 0, "DSP_SR0",
       },
};

#endif /* _RSC_TABLE_DSP_H_ */

    Updated config.bld file for DSP2

    /*
 *  ======== config.bld ========
 *
 */
var Build = xdc.useModule('xdc.bld.BuildEnvironment');

/*  Memory Map for ti.platforms.evmDRA7XX:dsp
 *
 *  --- External Memory ---
 *  Virtual     Physical        Size            Comment
 *  ------------------------------------------------------------------------
 *  9500_0000   ????_????    10_0000  (  ~1 MB) EXT_CODE
 *  9510_0000   ????_????   200_0000  (  32 MB) EXT_DATA
 *  8000_0000   ????_????   900_0000  ( 144 MB) EXT_HEAP
 *  9F00_0000   9F00_0000     6_0000  ( 384 kB) TRACE_BUF
 *  9F06_0000   9F06_0000     1_0000  (  64 kB) EXC_DATA
 *  9F07_0000   9F07_0000     2_0000  ( 128 kB) PM_DATA (Power mgmt)
 */
  var evmDRA7XX_SR_0 = {
        name: "SR_0", space: "data", access: "RWX",
        base: 0xC0000000, len: 0x100000,
        comment: "SR#0 Memory (1 MB)"
};
var evmDRA7XX_ExtMemMapDsp = {
    EXT_CODE: {
        name: "EXT_CODE",
        base: 0x95000000,
        len:  0x00100000,
        space: "code",
        access: "RWX"
    },
    EXT_DATA: {
        name: "EXT_DATA",
        base: 0x95100000,
        len:  0x02000000,
        space: "data",
        access: "RW"
    },
    EXT_HEAP: {
        name: "EXT_HEAP",
        base: 0xAD800000,
        len:  0x09000000,
        space: "data",
        access: "RW"
    },
    EXC_DATA: {
        name: "EXC_DATA",
        base: 0x9F060000,
        len:  0x00010000,
        space: "data",
        access: "RW"
    },
    PM_DATA: {
        name: "PM_DATA",
        base: 0x9F070000,
        len:  0x00020000,
        space: "data",
        access: "RWX"  /* should this have execute perm? */
    },
     SR_0: {
        name: evmDRA7XX_SR_0.name,
        base: evmDRA7XX_SR_0.base,
        len:  evmDRA7XX_SR_0.len,
        space: "data",
        access: "RW"
    }
};

Build.platformTable["ti.platforms.evmDRA7XX:dsp"] = {
    externalMemoryMap: [
        [ "EXT_CODE", evmDRA7XX_ExtMemMapDsp.EXT_CODE ],
        [ "EXT_DATA", evmDRA7XX_ExtMemMapDsp.EXT_DATA ],
        [ "EXT_HEAP", evmDRA7XX_ExtMemMapDsp.EXT_HEAP ],
        [ "EXC_DATA", evmDRA7XX_ExtMemMapDsp.EXC_DATA ],
        [ "PM_DATA", evmDRA7XX_ExtMemMapDsp.PM_DATA ],
        [ evmDRA7XX_SR_0.name, evmDRA7XX_ExtMemMapDsp.SR_0 ],
    ],
    codeMemory: "EXT_CODE",
    dataMemory: "EXT_DATA",
    stackMemory: "EXT_DATA",
};

    Note: The shared memory is initialized in the CMEM section as you can see from the resource table file, there is no modification in device tree file.

    Thanks,

    Shashank

  • 0 in reply to Shashank vaidya
    TI__Mastermind 31645 points

    Hello Shashank,

    Thank you for the update. I have not had time to look into your thread and I probably will not get to it until next week.

    I appreciate your patience.

    -Josue

  • 0 in reply to Josue Zamitiz-Ayala
    TI__Mastermind 31645 points

    Hello Shashank,

    Is your query still open? Have you seen the README on this site? https://git.ti.com/cgit/ipc/ipc-examples/tree/src/examples/templates/ex13_notifypeer/readme.txt

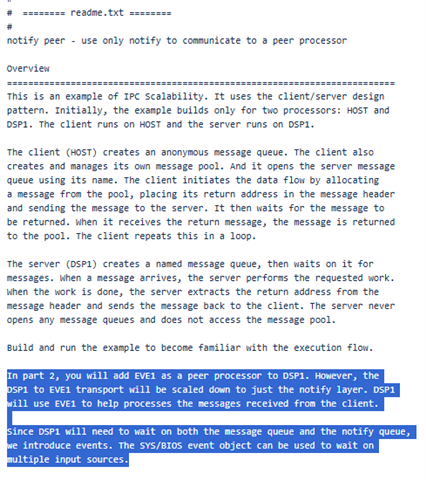

    From this I gather that the second processor would be set as a peer processor, the host would remain the same (A15) and communication from DSP to DSP would be scaled down to notify layer.

    There is also some instruction on how to do this. This  Is no longer validated in the newer SDKs so support for these examples in older SDKs is very limited. I apologize for the delay.

    -Josue

  • 0 in reply to Josue Zamitiz-Ayala
    TI__Mastermind 31645 points

    Hello Shashank,

    I just realized you are using a different example. Need to look back at that one too.

    -Josue

  • 0 in reply to Josue Zamitiz-Ayala
    Prodigy 15 points

    Hi Josue,

    Yea the query is still open, Apologies for the delayed reply.

    Thanks,

    Shashank

  • 0 in reply to Shashank vaidya
    TI__Mastermind 31645 points

    Shashank,

    I apologize for the bad news, but this configuration is not supported and I am not sure that migrating it is as trivial as the changes above. This has not been tested at our end so for now this has to go back into the requirement bucket for now. If I have extra time I could attempt it but for now you will have to keep trying on your own.

    Best,

    Josue

  • 0 in reply to Josue Zamitiz-Ayala
    Prodigy 15 points

    Hi Josue,

    Sure, will keep on trying from our end, I'll update you if we find some workaround on this, if you find something please let us know at the earliest.

    Thanks,

    Shashank

  • 0 in reply to Shashank vaidya
    TI__Mastermind 31645 points

    Thank you for understanding Shashank.

    -Josue
