PROCESSOR-SDK-AM65X: LED of MCU ETHERNET doesn't work when connect with PC.

cong chen

Tool/software:

My device : Sitara AM65x Processors ; Jacinto DRA80xM Processors. AM654x EVM PROCESSOR BOARD PROC062B

1. Problems with the device.
The device is powered on, and after the network port is connected to the computer in red circled in the figure below, the LED of the network port is always off.

2 months ago

0 Pekka Varis 2 months ago

TI__Mastermind 27050 points

What SW are you running? Can you attach the serial logs of the device boot.

Pekka

0 cong chen 2 months ago in reply to Pekka Varis

Prodigy 10 points

Thank you for your feedback.
How can I get the device boot log ? Could you send the link for user manual?

Here is additional information.

I have 2 board. The normal board is called A . The abnormal board is called B .

Device A and Device B both don't install SD card.

Why the LED status between device A and device B is different ? Could it be a hardware issue that is causing these discrepancies to occur?

Deivice A - normal

Device B - abnormal

0 Pekka Varis 2 months ago in reply to cong chen

TI__Mastermind 27050 points

cong chen said:
Could you send the link for user manual?

https://www.ti.com/tool/TMDX654IDKEVM has all the documentation, https://www.ti.com/lit/pdf/spruim6 is the user guide.

Basic SD card creation steps are at https://software-dl.ti.com/processor-sdk-linux/esd/AM65X/09_03_05_02/exports/docs/linux/Overview/Processor_SDK_Linux_create_SD_card.html .

cong chen said:
How can I get the device boot log ?

The black micro USB you have connected next to the single RJ-45 on both pictures. What is it printing out?

cong chen said:
Device A and Device B both don't install SD card.

I'm not sure I understand. Please use a prebuilt SD card image from https://dr-download.ti.com/software-development/software-development-kit-sdk/MD-diW9VClvQJ/09.03.05.02/tisdk-default-image-am65xx-evm-09.03.05.02.wic.xz and set up the boot mode as SD card as decribed in the user guide.

Pekka

0 cong chen 2 months ago in reply to Pekka Varis

Prodigy 10 points

I download the file through https://dr-download.ti.com/software-development/software-development-kit-sdk/MD-diW9VClvQJ/09.03.05.02/tisdk-default-image-am65xx-evm-09.03.05.02.wic.xz .
Then I try to create SD card through balenaEtcher.

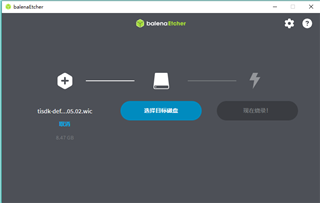

However , the tool prompts the WIC file size is larger than the SD card size.
WIC file is 8.47GB, my SD card size is 7.95GB.

Is there any other way to debug?
