DRA821U: Issues with the QuadPhy on the J7200-EVM

Fabian

Part Number: DRA821U

Tool/software:

Hello,

this is a follow-up to the following thread:
DRA821U: How to map multiple MAC-only ports to A72 in ethfw with current SDK - Processors forum - Processors - TI E2E support forums

I still have issues getting the QuadPhy on the J7200-EVM to work properly. After receiving the patches, I did a fresh build with the newest Linux SDK and the ethfw. I also deactivated gPTP and changed the MAC address as suggested in the mentioned thread. The port configuration is unaltered, so no additional MAC-only port(s).

I can ping all the static IPs (assigned to eth0, eth1 and eth2) through the CPSW2G port, but there's no response when connecting to any of the MAC ports on the CPSW5G.

root@j7200-evm:~# dmesg | grep eth
[    0.000000] psci: probing for conduit method from DT.
[    0.814966] optee: probing for conduit method.
[    1.270545] am65-cpsw-nuss 46000000.ethernet: initializing am65 cpsw nuss version 0x6BA02102, cpsw version 0x6BA82102 Ports: 2 quirks:00000000
[    1.283402] am65-cpsw-nuss 46000000.ethernet: initialized cpsw ale version 1.4
[    1.290612] am65-cpsw-nuss 46000000.ethernet: ALE Table size 64
[    1.300962] am65-cpsw-nuss 46000000.ethernet: CPTS ver 0x4e8a010b, freq:500000000, add_val:1 pps:1
[    3.062533] am65-cpsw-nuss 46000000.ethernet: initializing am65 cpsw nuss version 0x6BA02102, cpsw version 0x6BA82102 Ports: 2 quirks:00000000
[    3.075399] am65-cpsw-nuss 46000000.ethernet: initialized cpsw ale version 1.4
[    3.082609] am65-cpsw-nuss 46000000.ethernet: ALE Table size 64
[    3.092924] am65-cpsw-nuss 46000000.ethernet: CPTS ver 0x4e8a010b, freq:500000000, add_val:1 pps:1
[    3.109044] am65-cpsw-nuss 46000000.ethernet: set new flow-id-base 48
[    3.862713] systemd[1]: /usr/lib/systemd/system/bt-enable.service:9: Standard output type syslog is obsolete, automatically updating to journal. Please update your unit file, and consider removing the setting altogether.
[    3.941210] systemd[1]: /etc/systemd/system/sync-clocks.service:11: Standard output type syslog is obsolete, automatically updating to journal. Please update your unit file, and consider removing the setting altogether.
[    7.929338] virtio_rpmsg_bus virtio1: creating channel ti.ethfw.ethdevice addr 0x22
[    8.234417] am65-cpsw-nuss 46000000.ethernet eth0: PHY [46000f00.mdio:00] driver [TI DP83867] (irq=POLL)
[    8.289677] am65-cpsw-nuss 46000000.ethernet eth0: configuring for phy/rgmii-rxid link mode
[    8.708399] ti_cpsw_proxy_client virtio1.ti.ethfw.ethdevice.-1.34: 1 Virtual Switch Port(s), 1 Virtual MAC Only Port(s)
[    8.720610] ti_cpsw_proxy_client virtio1.ti.ethfw.ethdevice.-1.34: Virt Port: 0, Type: Switch Port, Iface: eth1, Num TX: 2, Num RX: 1, Token: 0
[    8.735769] ti_cpsw_proxy_client virtio1.ti.ethfw.ethdevice.-1.34: Virt Port: 4, Type: MAC Port, Iface: eth2, Num TX: 1, Num RX: 1, Token: 400
[    9.060691] ti_cpsw_proxy_client virtio1.ti.ethfw.ethdevice.-1.34: started port 4 on interface eth2
[    9.190333] ti_cpsw_proxy_client virtio1.ti.ethfw.ethdevice.-1.34: started port 0 on interface eth1
[   85.189291] am65-cpsw-nuss 46000000.ethernet eth0: Link is Up - 10Mbps/Full - flow control off

root@j7200-evm:~# cat /sys/kernel/debug/remoteproc/remoteproc1/trace0
ETHFW: Detected boards: QSGMII
=======================================================
            CPSW Ethernet Firmware
=======================================================
ETHFW: Warning: Using 6 random MAC address(es)
EnetMcm: CPSW_5G on MAIN NAVSS
Mdio_open: MDIO manual mode enabled
PHY 16 is alive
PHY 17 is alive
PHY 18 is alive
PHY 19 is alive
EnetPhy_bindDriver: PHY 16: OUI:0001c1 Model:27 Ver:00 <-> 'vsc8514' : OK
EnetPhy_bindDriver: PHY 17: OUI:0001c1 Model:27 Ver:00 <-> 'vsc8514' : OK
EnetPhy_bindDriver: PHY 18: OUI:0001c1 Model:27 Ver:00 <-> 'vsc8514' : OK
EnetPhy_bindDriver: PHY 19: OUI:0001c1 Model:27 Ver:00 <-> 'vsc8514' : OK
ETHFW: Shared multicasts:
ETHFW:   01:00:5e:00:00:01
ETHFW:   01:00:5e:00:00:fb
ETHFW:   01:00:5e:00:00:fc
ETHFW:   33:33:00:00:00:01
ETHFW:   33:33:ff:1d:92:c2
ETHFW:   01:80:c2:00:00:00
ETHFW:   01:80:c2:00:00:03
ETHFW: Reserved multicasts:
ETHFW:   01:80:c1:00:00:0e
ETHFW:   01:1b:19:00:00:00
ETHFW: CPSW recovery is not enabled
ETHFW: VLAN 1024 member=0xd virtMember=0x7 regMcastFlood=0xd unregMcastFlood=0xd untag=0x0
ETHFW: 1 VLAN entries added in ALE table

ETHFW Version   : 0.05.00
ETHFW Build Date: Jul  1, 2025
ETHFW Build Time: 15:50:55
ETHFW Commit SHA:

Starting lwIP, local interface IP is dhcp-enabled
ETHFW: Host MAC address: 70:1e:76:40:0e:bc
[LWIPIF_LWIP] Enet LLD netif initialized successfully
[LWIPIF_LWIP_IC] Interface started successfully
[LWIPIF_LWIP_IC] NETIF INIT SUCCESS
[LWIPIF_LWIP_IC] Interface started successfully
[LWIPIF_LWIP_IC] NETIF INIT SUCCESS
Added interface 'br3', IP is 0.0.0.0
ETHFW: Virtual port configuration:
ETHFW: CpswProxyServer: initialization completed (core: mcu2_0)
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
EnetPhy_findCommonNwayCaps: PHY 19: no common caps found
CpswMacPort_checkSgmiiStatus: MAC 4: SGMII link parter config port: link up: 1-Gbps Full-Duplex
Cpsw_handleLinkUp: Port 4: Link up: 1-Gbps Full-Duplex
ETHFW: Announce Endpoint Service to HLOS
REMOTE_SERVICE: Init ... !!!
REMOTE_SERVICE: Init ... Done !!!
ETHFW: VIRT_PORT_INFO | C2S | core=0 endpt=1025
ETHFW: VIRT_PORT_INFO | S2C | switchPortMask=1 macPortMask=10
ETHFW: ATTACH | C2S | core=0 endpt=1025 virtPort=0
ETHFW: ATTACH | S2C | token=0 rxMtu=1522 features=3
ETHFW: ATTACH | C2S | core=0 endpt=1025 virtPort=4
ETHFW: ATTACH | S2C | token=400 rxMtu=1522 features=1
ETHFW: ALLOC_RX | C2S | core=0 endpt=1025 token=0
ETHFW: ALLOC_RX | S2C | flow=84,0 rxPsil=0x4a00 status=0
ETHFW: ALLOC_TX | C2S | core=0 endpt=1025 token=0
ETHFW: ALLOC_TX | S2C | txPsil=0xca04 status=0
ETHFW: ALLOC_TX | C2S | core=0 endpt=1025 token=0
ETHFW: ALLOC_TX | S2C | txPsil=0xca07 status=0
ETHFW: ALLOC_MAC | C2S | core=0 endpt=1025 token=0
ETHFW: ALLOC_MAC | S2C | macAddr=70:c8:e3:0a:f5:43 status=0
ETHFW: ALLOC_RX | C2S | core=0 endpt=1025 token=400
ETHFW: ALLOC_RX | S2C | flow=84,1 rxPsil=0x4a00 status=0
ETHFW: ALLOC_TX | C2S | core=0 endpt=1025 token=400
ETHFW: ALLOC_TX | S2C | txPsil=0xca03 status=0
ETHFW: ALLOC_MAC | C2S | core=0 endpt=1025 token=400
ETHFW: ALLOC_MAC | S2C | macAddr=70:f9:17:0c:b6:e0 status=0
ETHFW: REGISTER_MAC | C2S | core=0 endpt=1025 token=400 macAdd=70:f9:17:0c:b6:e0 flowIdx=84,1
ETHFW: REGISTER_MAC | S2C | status=0
ETHFW: REGISTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=70:c8:e3:0a:f5:43 flowIdx=84,0
Cpsw_ioctlInternal: Registered MAC address (ALE entry=8, policer entry=1)
ETHFW: REGISTER_MAC | S2C | status=0
ETHFW: ADD_FILTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=33:33:00:00:00:01 vlanId=65535 flowIdx=84,0
ETHFW: ADD_FILTER_MAC | S2C | status=0
ETHFW: ADD_FILTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=01:00:5e:00:00:01 vlanId=65535 flowIdx=84,0
ETHFW: ADD_FILTER_MAC | S2C | status=0
ETHFW: ADD_FILTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=33:33:ff:0a:f5:43 vlanId=65535 flowIdx=84,0
ETHFW: ADD_FILTER_MAC | S2C | status=0
ETHFW: ADD_FILTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=01:80:c2:00:00:00 vlanId=65535 flowIdx=84,0
ETHFW: ADD_FILTER_MAC | S2C | status=0
ETHFW: ADD_FILTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=01:80:c2:00:00:03 vlanId=65535 flowIdx=84,0
ETHFW: ADD_FILTER_MAC | S2C | status=0
ETHFW: ADD_FILTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=01:80:c2:00:00:0e vlanId=65535 flowIdx=84,0
ETHFW: ADD_FILTER_MAC | S2C | status=0
ETHFW: ADD_FILTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=33:33:00:00:00:fb vlanId=65535 flowIdx=84,0
ETHFW: ADD_FILTER_MAC | S2C | status=0
ETHFW: REGISTER_IPv4 | C2S | core=0 endpt=1025 token=0 ipAddr=192.168.100.171 macAdd=70:c8:e3:0a:f5:43
ETHFW:
 SNo.      MAC Address        VLAN     IP Address
ETHFW: ------  -------------------  ------  -----------------
ETHFW:     1    70:c8:e3:0a:f5:43       0    192.168.100.171
ETHFW: REGISTER_IPv4 | S2C | status=0
ETHFW: ADD_FILTER_MAC | C2S | core=0 endpt=1025 token=0 macAdd=01:00:5e:00:00:fb vlanId=65535 flowIdx=84,0
ETHFW: ADD_FILTER_MAC | S2C | status=0
Cpsw_handleLinkDown: Port 4: Link down
EnetPhy_findCommonNwayCaps: PHY 17: no common caps found
EnetPhy_findCommonNwayCaps: PHY 17: no common caps found
EnetPhy_findCommonNwayCaps: PHY 17: no common caps found
EnetPhy_findCommonNwayCaps: PHY 17: no common caps found

There seems to be an error message "EnetPhy_findCommonNwayCaps: PHY 1x: no common caps found". What could be the cause of this?

What else could I do to get it to work?

Thanks in advance!

2 months ago

0 Doredla Sudheer Kumar 2 months ago

TI__Guru 64680 points

Hi,

Fabian said:
There seems to be an error message "EnetPhy_findCommonNwayCaps: PHY 1x: no common caps found". What could be the cause of this?

It will be during the PHY reset and negotiation process, the PHY state machine prints no common Nway Caps.

I could see MAC Port-4 is linked up with 1Gbps.
CpswMacPort_checkSgmiiStatus: MAC 4: SGMII link parter config port: link up: 1-Gbps Full-Duplex
Cpsw_handleLinkUp: Port 4: Link up: 1-Gbps Full-Duplex

By default, MAC Port-4 is mapped to the RTOS client as a MAC-only Port. Only the MCU2_1 client can communicate over MAC Port-4.

To communicate with eth1, ensure Link up from MAC Port-2/3; similarly, to communicate with eth2, ensure Link up from MAC Port-1.

Best Regards,
Sudheer

0 Fabian 2 months ago in reply to Doredla Sudheer Kumar

Prodigy 40 points

Hi,

thanks for the info!

As for the log, I tried all kind of different permutations (pinging all the different eth interfaces from various MAC Ports), but it worked with none. On the other hand, I tried the Native Linux driver and all the MAC Ports worked out-of-the-box.

0 Doredla Sudheer Kumar 2 months ago in reply to Fabian

TI__Guru 64680 points

Hi,

Fabian said:
As for the log, I tried all kind of different permutations (pinging all the different eth interfaces from various MAC Ports), but it worked with none. On the other hand, I tried the Native Linux driver and all the MAC Ports worked out-of-the-box.

The ETHFW application out-of-box TI SDK should work with the default port mapping.

I could see the above IP registration with 192.168.100.171, from the Linux virtual switch port interface.

Can you please confirm, you have made any changes to the ETHFW application?

Please check once with the default TI configuration.

Also, ensure the native Linux driver enables overlay is not applied when ETHFW is mapped to the MCU2_0 core.

Best Regards,
Sudheer

0 Fabian 2 months ago in reply to Doredla Sudheer Kumar

Prodigy 40 points

Hi,

Doredla Sudheer Kumar said:
The ETHFW application out-of-box TI SDK should work with the default port mapping.

I installed PROCESSOR-SDK-LINUX-RT-J7200 with the most recent version 10.01.08.01 and loaded the pre-built binaries on an SD card. No changes were made. I assigned static IPs to the interfaces via Linux command line (e.g. 192.168.100.171), but could not get any ping.

As a next step. I sourced the Yocto environment and built an image from the SDK with the patches applied (see other thread; also for the ethfw, of course). I also deactivated gPTP and changed the MAC address, as suggested in the other thread. WIth that image, I also could not get any ping.

Doredla Sudheer Kumar said:
Also, ensure the native Linux driver enables overlay is not applied when ETHFW is mapped to the MCU2_0 core.

The overlay is not applied.

I'm pretty sure that I can rule out my hardware setup as a problem, because I can ping all ethernet interfaces through the MAC port on the CPSW2G.

0 Doredla Sudheer Kumar 2 months ago in reply to Fabian

TI__Guru 64680 points

Hi,

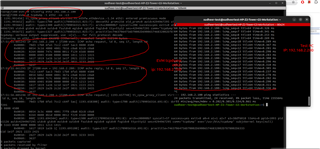

I have tested on my side using TI SDK as is with the default configuration.
The SDK used to test the ETHFW client networking is as captured below.

Connected the Test PC network cable to EVM via CPSW Port-2 (Switch port interface). Please find the ping log from the virtual switch port interface (eth1) to the test PC below.

The default port mapping of QSGMII is as follows.
https://software-dl.ti.com/jacinto7/esd/processor-sdk-rtos-j784s4/latest/exports/docs/ethfw/docs/user_guide/ethfw_c_ug_top.html#ethfw_depend_evm_quadport_j7200

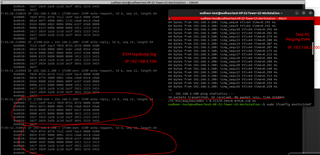

Tested MAC Port-1, via virtual MAC only port interface on Linux to test PC. Please refer to the ping log below.

Best Regards,
Sudheer
