AM62A3-Q1: Design Recommendations / Custom board hardware design - Queries related to AM62A3 EVK power current management

Anil Pujari

Prodigy 50 points

Part Number: AM62A3-Q1
Other Parts Discussed in Thread: LM5141-Q1

Tool/software:

Hi TI Team,

We are currently custom designing a Automotive DMS using AM62A34 processor.

We have the following queries regarding the power supply configuration for the AM62A34:

AM62A34 EVK power current management:

The EVK reference schematic shows the PD controller output current as 2483.17 mA, which is insufficient to directly power the AM62A34 processor, since the processor requires up to 6.7A (6.5A for VCC_CORE and 0.2A for VDDR_CORE) according to the AM62A34 datasheet, how did increase that current using BUCK REG (3.3V) LM5141-Q1.In the reference schematic, the BUCK REG (3.3V) LM5141-Q1 shows an input current is 2133.913 mA and an output current is 8729.64 mA.
Could you please provide the design guidelines?

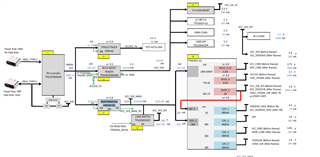

Please find bellows images of Power current diagram. We would appreciate your feedback on these queries,

2 months ago

0 Kallikuppa Sreenivasa 2 months ago

TI__Guru**** 191199 points

Hello Anil Pojari,

Thank you for the query.

I am assigning the query to the power expert to support.

Regards,

Sreenivasa

0 Brenda Diaz 2 months ago in reply to Kallikuppa Sreenivasa

TI__Mastermind 22336 points

Hi,

Thanks for reaching out. The power block diagram in the EVM design files just show estimated current consumption. We do not typically compare input to output current on specific ICs but instead compare input to output power. The output current of the DCDC regulator is higher but the voltage is lower.

Thanks,

Brenda

0 Anil Pujari 2 months ago in reply to Brenda Diaz

Prodigy 50 points

Thanks for your response

Yes, I Know input & output power DC-DC converter is different we couldn't compare it but in TI SoC AM62A34 having Quad core which is taking large current 6.5 A as per datasheet. Please let me clear, is the SoC continuous current is 6.5A or it is just bootup current?

How to manage losses of LM5141-Q1 ?

0 Brenda Diaz 2 months ago in reply to Anil Pujari

TI__Mastermind 22336 points

Hi,

Where does the "6.5A" come from? Are you measuring this current on a prototype board?

Thanks,

Brenda

0 Anil Pujari 2 months ago in reply to Brenda Diaz

Prodigy 50 points

Hi,

6.5A mention in AM62A64 SoC datasheet

Just for reference, here is the link to the AM62Ax max current : ./cfs-file/__key/communityserver-discussions-components-files/791/Maximum-current-rating.pdf

0 Brenda Diaz 2 months ago in reply to Anil Pujari

TI__Mastermind 22336 points

Hi,

Thanks for clarifying! Yes, 6.5A is the max VDD_CORE current for AM62A under a specific configuration (i.e VDD_CORE=0.75, quad core, 1250MHz, etc). These max current ratings are specified under worst case conditions like max temperature and process corner. If you design for worst case conditions, then it would result in 4.875W (0.75V*6.5A) power required for the CORE. Here is the link to the AM62A power estimation tool which can also help to estimate the active power for your specific use case: https://www.ti.com/tool/download/AM62A-PET-CALC.

If you have any design questions for the pre-regulator, we recommend submitting a separate E2E under LM5141-Q1. This device is a Buck controller and the max current ratings could vary based on the selected external MOSFET.

Thanks,

Brenda
