TMDXEVM6670LE Configuring Debugger Issue

KTM

Other Parts Discussed in Thread: TMS320C6670

Greetings! I have a TMDXEVM6670LE board with the XDS560v2 emulator. I'm running on a PC with CCS 5.1.0. I created my target configuration file (see below) per the MCDSK Getting Started Guide. When I load my target configuration in CCS, the "Configuring Debugger" window pops up and spins on "Initializing: IcePick_D" for about 7 minutes. Eventually the window goes away but then I can't connect to Core 0. Any ideas what I did wrong?

Thanks.

Kevin

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<configurations XML_version="1.2" id="configurations_0">
<configuration XML_version="1.2" id="Blackhawk XDS560v2-USB Mezzanine Emulator_0">
        <instance XML_version="1.2" desc="Blackhawk XDS560v2-USB Mezzanine Emulator_0" href="connections/BH-XDS560v2-USB_Mezzanine.xml" id="Blackhawk XDS560v2-USB Mezzanine Emulator_0" xml="BH-XDS560v2-USB_Mezzanine.xml" xmlpath="connections"/>
        <connection XML_version="1.2" id="Blackhawk XDS560v2-USB Mezzanine Emulator_0">
            <instance XML_version="1.2" href="drivers/tixds560icepick_d.xml" id="drivers" xml="tixds560icepick_d.xml" xmlpath="drivers"/>
            <instance XML_version="1.2" href="drivers/tixds560c66xx.xml" id="drivers" xml="tixds560c66xx.xml" xmlpath="drivers"/>
            <instance XML_version="1.2" href="drivers/tixds560cs_dap.xml" id="drivers" xml="tixds560cs_dap.xml" xmlpath="drivers"/>
            <instance XML_version="1.2" href="drivers/tixds560csstm.xml" id="drivers" xml="tixds560csstm.xml" xmlpath="drivers"/>
            <instance XML_version="1.2" href="drivers/tixds560etbcs.xml" id="drivers" xml="tixds560etbcs.xml" xmlpath="drivers"/>
            <platform XML_version="1.2" id="platform_0">
                <instance XML_version="1.2" desc="TMS320C6670_0" href="devices/C6670.xml" id="TMS320C6670_0" xml="C6670.xml" xmlpath="devices"/>
            </platform>
        </connection>
    </configuration>
</configurations>

over 13 years ago

0 RandyP over 13 years ago

TI__Guru* 84110 points

Is that CCSv5.1.0.09000 or one of the earlier ones? Make sure you are on the latest.

Which PC O/S are you using?

Check all of your jumper and DIP switch settings to make sure you are set for the recommended mode for emulation. I do not have this board, so I do not know the exact settings for you, but the Getting Started Guide is usually pretty clear about all of these.

Regards,
RandyP

0 KTM over 13 years ago in reply to RandyP

Intellectual 850 points

Randy,

I'm using CCS 5.1.0.09000 and Windows XP. I checked my switches. The EVM6700L Hardware Setup says to set all pins on SW3-SW6 to ON except for SW3-1. This should be "No Boot" mode. I'll look for a newer CCS.

Anyone successful in using the TMDXEVM6670LE (with XDS560v2 Mezzanine emulator)?

Thanks.

Kevin

0 Varada Bellary over 13 years ago in reply to KTM

TI__Expert 5750 points

Kevin,

Can you please try with the latest emulation drivers from the following website.

http://software-dl.ti.com/sdoemb/sdoemb_public_sw/bios_mcsdk/latest/index_FDS.html

I have C6678 EVM with XDS560v2 Mezz card and I do not have any issues. Also can you verify that the USB cable is now connected to this Mezz emulator and not the base EVM.

Hope this helps.

0 KTM over 13 years ago in reply to Varada Bellary

Intellectual 850 points

Varada,

Very nice! Thanks for the pointer to the latest emulation drivers. I ran ti_emupack_keystone1_setup_1.0.1.0.exe and "Launch Configuration" now does not hang in Debugger Initialization. I can also now connect to the cores.

Thanks for the help!

Kevin

0 Muhammad Reda over 12 years ago in reply to KTM

Intellectual 505 points

Hi Varada and Kevin ,
i have a connection problem ,

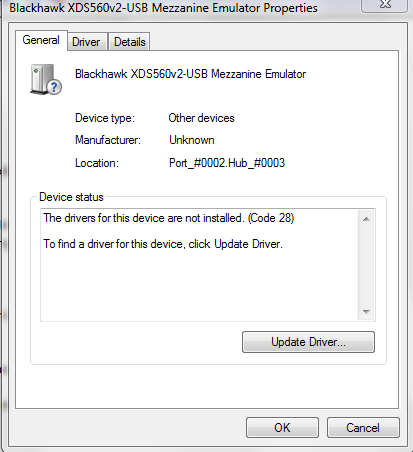

when i connect TMS320C6670 board with PC using Blackhawk XDS560v2-USB Mezzanine Emulator then i check the device manger i found that it asks for a driver ,
What can i do ?
Thanks in advanced ,

Muhammad .

0 KTM over 12 years ago in reply to Muhammad Reda

Intellectual 850 points

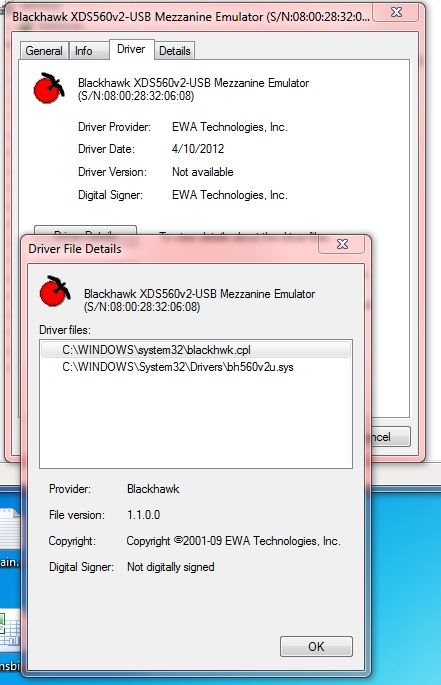

Here's what I have for a driver on a Windows 7 PC. However, I don't recall where I got the driver.

Kevin

0 Muhammad Reda over 12 years ago in reply to KTM

Intellectual 505 points

Hi Kevin ,
i have this two files in another directory
C:\Program Files (x86)\Blackhawk\Emulation\Drivers\Bh560v2\v1.0.0.5\amd64
this files downloaded during CCS installation ,
and i have the same problem ,
Can you tell me a solution ,
Thanks in advanced
Muhammad .

0 Muhammad Reda over 12 years ago in reply to KTM

Intellectual 505 points

Hi kevin ,
i removed old CCS and installed CC v5.3 then i go to to the device manger it found that Blackhawk XDS560v2 it is installed correctly like your image , but when i make target configuration file and configure it then launched it

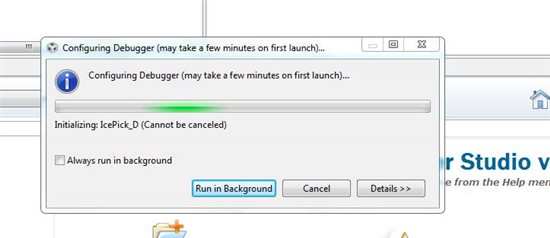

it take a lot of time during Initializing Like below image
so what is the problem
Thanks in advanced
Muhammed
