PROCESSOR-SDK-AM62P: Build TI boot3 start up error

Hi Pu Jia,

Can you use the top level makefile to build the u-boot following the instructions and see if that help you create a bootimage tiboot3.bin image.

https://software-dl.ti.com/processor-sdk-linux/esd/AM62PX/latest/exports/docs/linux/Overview/Top_Level_Makefile.html

Upon downloading the processor sdk installer binary, issuing make u-boot should be able to create the tiboot3.bin in output directory/r5 folder.

Let me know how it goes.

Best Regards,

Suren

Yes I use this guide to build the R5 boot loader. make all && make u-boot-r5. now I tried to change the defconfig back to default, the img is working, and I tried to build the uboot with early splash, can you please provide the guide?

Hello,

Got it, so the early splash is in A53 spl,  if it possible to do it in R5 SPL?

Hi Pu Jia,

Any reason you are using the SPL boot flow and wanting to do splash in R5 SPL? We already have support for DSS on R5 SPL in our SBL boot flow, which will allow to do early splash.

Please check the below link:

https://www.ti.com/lit/an/spradk8/spradk8.pdf

SBL boot flow:

https://software-dl.ti.com/mcu-plus-sdk/esd/AM62PX/11_01_00_16/exports/docs/api_guide_am62px/index.html

https://www.ti.com/tool/download/MCU-PLUS-SDK-AM62P/11.01.00.16

Best Regards,

Suren

Hello , Suren Porwar,

Now we plan to start EVM using Falcon mode followed by MCU SDK,

and I want to add the bmp splash in MCU_R5_NORTOS can you guide me to do this?

Hi Pu Jia,

Please follow the instructions provided in the MCU+SDK documentation.

https://software-dl.ti.com/mcu-plus-sdk/esd/AM62PX/11_01_00_16/exports/docs/api_guide_am62px/EXAMPLES_DRIVERS_DSS_DISPLAY_SHARE.html

Let me know if you have any issues.

Best Regards,

Suren

Hello, Suren Porwar

The demo is running fine, but I have some questions:

1. The demo application is to build a stage2  SBL loader ?

2. There still have SPLASH logo before the icon flashing, when and how this splash load?

3. when I flash it to emmc, it cannot load the OS core. there some strange is load from emmc in stage 1 but load stage 2 in OSPI, and then I don't know how it's going....

### ERROR ### Please RESET the board ###
[BOOTLOADER_PROFILE] Boot Media       : eMMC
[BOOTLOADER_PROFILE] Boot Media Clock : 200.000 MHz
[BOOTLOADER_PROFILE] Boot Image Size  : 1310 KB
[BOOTLOADER_PROFILE] Cores present    :
wkup-r5f0-0
[BOOTLOADER PROFILE] System_init                      :      38786us
[BOOTLOADER PROFILE] Board_init                       :          0us
[BOOTLOADER PROFILE] Drivers_open                     :          0us
[BOOTLOADER PROFILE] SBL Drivers_open                 :      20410us
[BOOTLOADER PROFILE] Board_driversOpen                :          0us
[BOOTLOADER PROFILE] App_loadSelfcoreImage            :      22789us
[BOOTLOADER_PROFILE] SBL Total Time Taken             :      81987us

Image loading done, switching to application ...
Starting 2nd stage bootloader
erver..... PASSED
Configure DSS region firewall... DONE !!!
Configure DSS framebuffer region firewall... DONE !!!
[BOOTLOADER_PROFILE] Boot Media       : FLASH
[BOOTLOADER_PROFILE] Boot Media Clock : 166.667 MHz
[BOOTLOADER_PROFILE] Boot Image Size  : 903 KB
[BOOTLOADER_PROFILE] Cores present    :
hsm-m4f0-0
mcu-r5f0-0
a530-0
[BOOTLOADER PROFILE] System_init                      :       7101us
[BOOTLOADER PROFILE] Board_init                       :          6us
[BOOTLOADER PROFILE] FreeRtosTask Create              :        269us
[BOOTLOADER PROFILE] SBL Drivers_open                 :       1369us
[BOOTLOADER PROFILE] SBL Board_driversOpen            :       7853us
[BOOTLOADER PROFILE] HSM Image Load                   :       3849us
[BOOTLOADER PROFILE] MCU R5 Image Load                :       4251us
[BOOTLOADER PROFILE] A53 Image Load                   :      12148us
[BOOTLOADER_PROFILE] SBL Total Time Taken             :      36849us

Image loading done, switching to application ...
Starting linux and RTOS/Baremetal applications
NOTICE:  BL31: v2.12.0(release):11.00.08-1-gb11beb2b6-dirty
NOTICE:  BL31: Built : 12:35:58, Mar 24 2025

and this's the flash config here:

#-----------------------------------------------------------------------------#
#                                                                             #
#      DEFAULT CONFIGURATION FILE TO BE USED WITH THE FLASHWRITER SCRIPT      #
#                                                                             #
#-----------------------------------------------------------------------------#
#
# By default this config file,
# - points to pre-built flash writer, bootloader for this EVM
# - The application image points to relative path of the ipc rpmsg linux application image for this EVM
#   - Make sure this application is built before running this script
# - You can customized this config file to point to your own bootloader and/or application images
# - You can use --operation=flashverify if you just want to verify the flash contents and not flash the file.
#

# First point to sbl_uart_uniflash_stage1 binary, which initialises DDR and receives sbl_uart_uniflash_stage2 binary

--flash-writer=sbl_prebuilt/am62px-sk/sbl_uart_uniflash_stage1.release.hs_fs.tiimage

# Points to sbl_uart_uniflash_stage2 binary, which function's as a server to flash one or more files to eMMC
# Please note this binary is copied to DDR by sbl_uart_uniflash_stage1 and not written to any boot media like flash or eMMC
--file=../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62px-sk/wkup-r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage.hs_fs --operation=flash --flash-offset=0x0

#--operation=flash-phy-tuning-data
# Now send one or more files to flash or flashverify as needed. The order of sending files does not matter



# When sending bootloader make sure to flash at offset 0x0. ROM expects bootloader at offset 0x0 of eMMC
#--file=../../examples/drivers/boot/sbl_emmc_linux_multistage/sbl_emmc_linux_stage1/am62px-sk/wkup-r5fss0-0_nortos/ti-arm-clang/sbl_emmc_linux_stage1.release.hs_fs.tiimage --operation=flash-emmc --flash-offset=0x0


# 2nd stage bootloader with DM is flashed at 0x80000 or to whatever offset your bootloader is configured for
--file="C:/Users/uidk9830/workspace_ccstheia/dss_display_share_am62px-sk_wkup-r5fss0-0_freertos_ti-arm-clang/Debug/dss_display_share_am62px-sk_wkup-r5fss0-0_freertos_ti-arm-clang.appimage.hs_fs" --operation=flash-emmc --flash-offset=0x80000

# HSM image is flashed at 0x240000 or to whatever offset your bootloader is configured for
--file=HSMAppimageGen/board/am62px-sk/hsm.appimage.hs_fs --operation=flash-emmc --flash-offset=0x240000

# When sending application image, make sure to flash at offset 0x800000 (default) or to whatever offset your bootloader is configured for
--file=../../examples/drivers/ipc/ipc_rpmsg_echo_qnx/am62px-sk/mcu-r5fss0-0_freertos/ti-arm-clang/ipc_rpmsg_echo_qnx.release.appimage.hs_fs --operation=flash-emmc --flash-offset=0x800000

# QNX image is flashed at 0x1200000 or to whatever offset your bootloader is configured for
--file=../../tools/boot/qnxAppimageGen/board/am62px-sk/qnx.appimage.hs_fs --operation=flash-emmc --flash-offset=0x280000

Hi,

Are you trying to run using dual boot media (OSPI and eMMC)? Or just eMMC.

Best Regards,

Suren

Hello Team

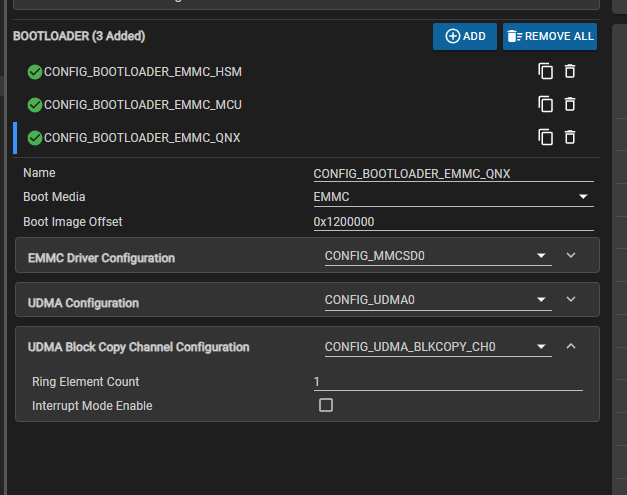

No, now I tried to changed the demo dss_display_share  setting in SYSconfig, to set all startup to emmc:

and flash config file:

#-----------------------------------------------------------------------------#
#                                                                             #
#      DEFAULT CONFIGURATION FILE TO BE USED WITH THE FLASHWRITER SCRIPT      #
#                                                                             #
#-----------------------------------------------------------------------------#
#
# By default this config file,
# - points to pre-built flash writer, bootloader for this EVM
# - The application image points to relative path of the ipc rpmsg linux application image for this EVM
#   - Make sure this application is built before running this script
# - You can customized this config file to point to your own bootloader and/or application images
# - You can use --operation=flashverify if you just want to verify the flash contents and not flash the file.
#

# First point to sbl_uart_uniflash_stage1 binary, which initialises DDR and receives sbl_uart_uniflash_stage2 binary

--flash-writer=sbl_prebuilt/am62px-sk/sbl_uart_uniflash_stage1.release.hs_fs.tiimage

# Points to sbl_uart_uniflash_stage2 binary, which function's as a server to flash one or more files to eMMC
# Please note this binary is copied to DDR by sbl_uart_uniflash_stage1 and not written to any boot media like flash or eMMC
--file=../../examples/drivers/boot/sbl_uart_uniflash_multistage/sbl_uart_uniflash_stage2/am62px-sk/wkup-r5fss0-0_nortos/ti-arm-clang/sbl_uart_uniflash_stage2.release.appimage.hs_fs --operation=flash --flash-offset=0x0

#--operation=flash-phy-tuning-data
# Now send one or more files to flash or flashverify as needed. The order of sending files does not matter



# When sending bootloader make sure to flash at offset 0x0. ROM expects bootloader at offset 0x0 of eMMC
--file=../../examples/drivers/boot/sbl_emmc_linux_multistage/sbl_emmc_linux_stage1/am62px-sk/wkup-r5fss0-0_nortos/ti-arm-clang/sbl_emmc_linux_stage1.release.hs_fs.tiimage --operation=flash-emmc --flash-offset=0x0


# 2nd stage bootloader with DM is flashed at 0x80000 or to whatever offset your bootloader is configured for
--file="C:/Users/uidk9830/workspace_ccstheia/dss_display_share_am62px-sk_wkup-r5fss0-0_freertos_ti-arm-clang/Debug/dss_display_share_am62px-sk_wkup-r5fss0-0_freertos_ti-arm-clang.appimage.hs_fs" --operation=flash-emmc --flash-offset=0x80000
####Demo for screen test
#--file="C:\Users\uidk9830\workspace_ccstheia\dss_display_test_am62px-sk_wkup-r5fss0-0_freertos_ti-arm-clang\Debug\dss_display_test_am62px-sk_wkup-r5fss0-0_freertos_ti-arm-clang.appimage.hs_fs" --operation=flash-emmc --flash-offset=0x80000




# HSM image is flashed at 0x240000 or to whatever offset your bootloader is configured for
--file=HSMAppimageGen/board/am62px-sk/hsm.appimage.hs_fs --operation=flash-emmc --flash-offset=0x740000

# When sending application image, make sure to flash at offset 0x800000 (default) or to whatever offset your bootloader is configured for
--file=../../examples/drivers/ipc/ipc_rpmsg_echo_qnx/am62px-sk/mcu-r5fss0-0_freertos/ti-arm-clang/ipc_rpmsg_echo_qnx.release.appimage.hs_fs --operation=flash-emmc --flash-offset=0x800000

# QNX image is flashed at 0x1200000 or to whatever offset your bootloader is configured for
--file=../../tools/boot/qnxAppimageGen/board/am62px-sk/qnx.appimage.hs_fs --operation=flash-emmc --flash-offset=0x1200000

But when I tried to startup, I got this message:

[BOOTLOADER_PROFILE] Boot Media       : eMMC
[BOOTLOADER_PROFILE] Boot Media Clock : 200.000 MHz
[BOOTLOADER_PROFILE] Boot Image Size  : 6568 KB
[BOOTLOADER_PROFILE] Cores present    :
wkup-r5f0-0
[BOOTLOADER PROFILE] System_init                      :      38831us
[BOOTLOADER PROFILE] Board_init                       :          0us
[BOOTLOADER PROFILE] Drivers_open                     :          0us
[BOOTLOADER PROFILE] SBL Drivers_open                 :      20415us
[BOOTLOADER PROFILE] Board_driversOpen                :          0us
[BOOTLOADER PROFILE] App_loadSelfcoreImage            :      85816us
[BOOTLOADER_PROFILE] SBL Total Time Taken             :     145064us

Image loading done, switching to application ...
Starting 2nd stage bootloader

then the startup pending.....

Hi,

Are you running Linux or QNX?

Best Regards,

Suren

Hi TI team

QNX,

I already solve this issue, I change the code in startup to init EMMC then the boot will be ok..

Glad you have it working.

i am going to close this thread. Feel free to contact us for any further assistance.

Beat Regards,

Suren
