Hi~

The promble is occur when I dubeg the SPI-FLASH-Writer. I load the file "spiflash-writer.out",CCS4 console prompt below :

=============================================================

ARM9_0: Output: 	Memory Map Cleared.
ARM9_0: Output: 	---------------------------------------------
ARM9_0: Output: 	Memory Map Setup Complete.
ARM9_0: Output: 	---------------------------------------------
ARM9_0: Output: 	SPI1 Pins Configured.
ARM9_0: Output: 	---------------------------------------------
ARM9_0: File Loader: Data verification failed at address 0xC001252C Please verify target memory and memory map.
ARM9_0: Unable to terminate memory download: 0x00000004/-2030 @ marker 1026 Error during: Register,  Access to an unknown or invalid register was attempted.
Error found during data verification.
Ensure the linker command file matches the memory map.

=============================================================

How to writer FLASH?

over 13 years ago

0 jc-ti over 13 years ago

TI__Mastermind 27585 points

Have you used a GEL file to initialize the DDR yet? If it is the EVM that should be all it takes. If it is a custom board you need to change the GEL settings to match your specific memory timings.

Jeff

0 nxegr XIE over 13 years ago in reply to jc-ti

Prodigy 110 points

Hi~

Thank for you replay!

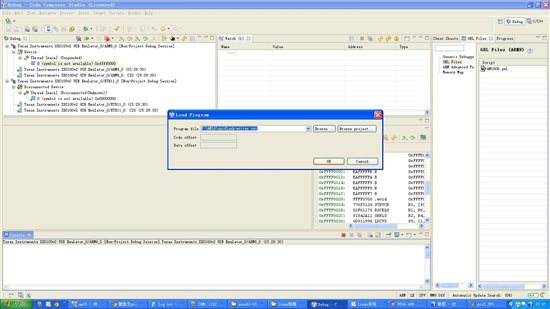

I can't find initialize the DDR tools, the CCS like below picture,

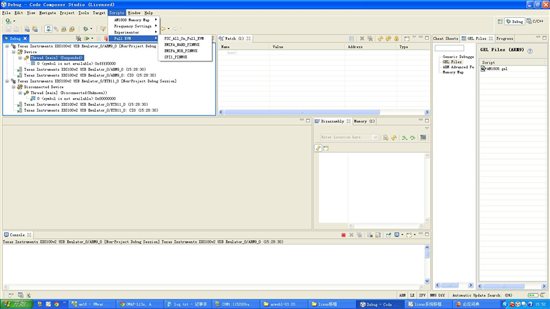

I according to the document with wiki.ti selete SPI1-PINMUX. Afterwards,I load the spi-write.out file.

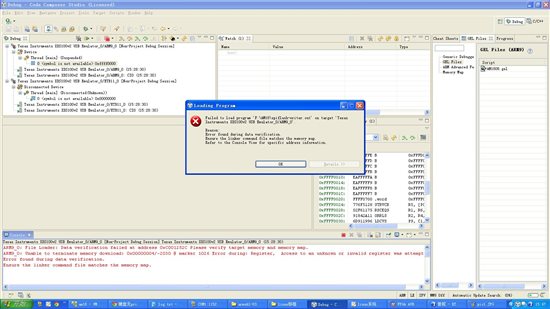

the CCS prompt the error like below

Sometime the loading is ok, it can use normally.

But sometime the process is wrong.just like above.what's problem?

0 jc-ti over 13 years ago in reply to nxegr XIE

TI__Mastermind 27585 points

You need to have the GEL file loaded before you connect to the ARM. There should be a function in the GEL that is automatically run when connecting. Maybe sometimes you are connecting first and then loading the GEL, and so the DDR never gets initialized.

Jeff

0 nxegr XIE over 13 years ago in reply to jc-ti

Prodigy 110 points

Thank you！

0 Anonymous over 13 years ago in reply to jc-ti

Jeff,

I googled and found this thread. A TI Wiki article Programming mDDR/DDR2 EMIF on OMAP-L1x/C674x provided an aiding spreadsheet, and mentioned a correponding chapter in L138 memory controller guide which gives step-by-step guide for the calculation and set up.

I would like to verify with you that does this "step-by-step guide" refer to §15.2.13 Auto-Initialization Sequence, particularly §15.2.13.1 Initializing Following
Device Power Up or Reset of SPRUH77A, OMAP-L138 DSP+ARM Processor Technical Reference Manual (Rev. A)?

Zheng

0 nxegr XIE over 13 years ago in reply to Anonymous

Prodigy 110 points

如果你遇到的问题和我一样，你没初始化内存。
