AM62A7: WDR can't lower the highlights

Hi Meng,

meng Ke said:

After using the DCC tool to apply WDR, the overall image becomes brighter.

Do you mean sending WDR tuning from tuning tool to EVM over network?

meng Ke said:

In cases of strong light contrast, the highlights are all white

That depends on your sensor raw image and ISP settings.

If your sensor is in 20-bit WDR mode and sensor exposure is high, then it is possible that sensor raw image is overexposed.

Please share some sensor raw images and your xml files to confirm.

Hi Gang,

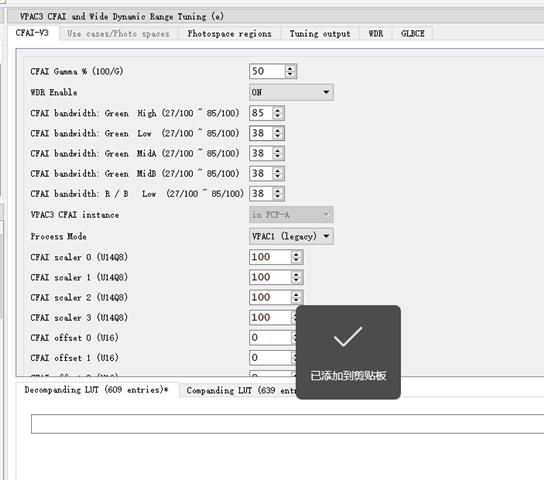

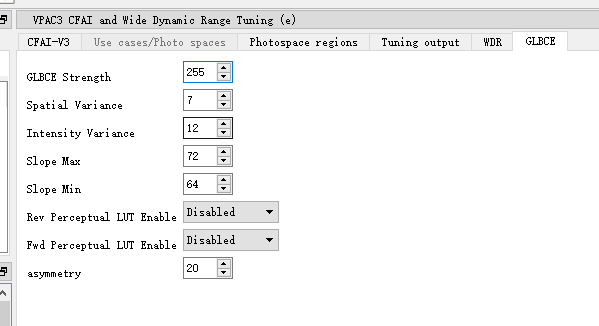

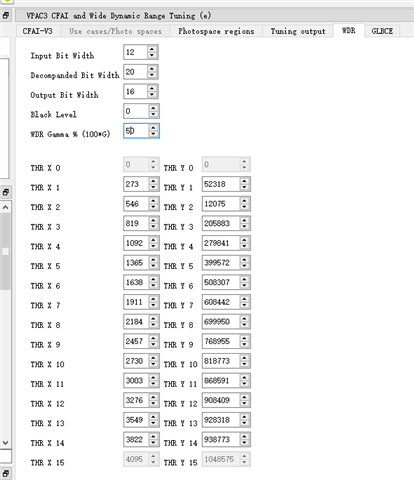

Here are my wdr xml file and pics after apply wdr

e2e.rar

Best Regards

Meng

I have two issues:
1. Highlights are blown out
2. When there's a strong contrast between light and dark, the highlights are completely white or the shadows are completely black.

Even if I lower all the highlight areas to the same value, there are still some highlights that are overexposed.

6472.PIC.rar

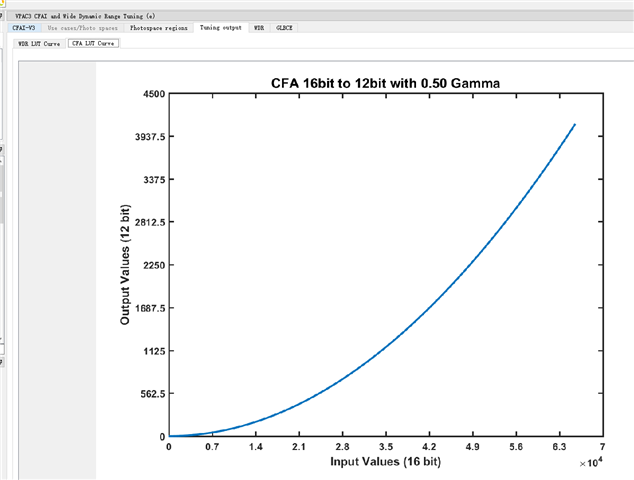

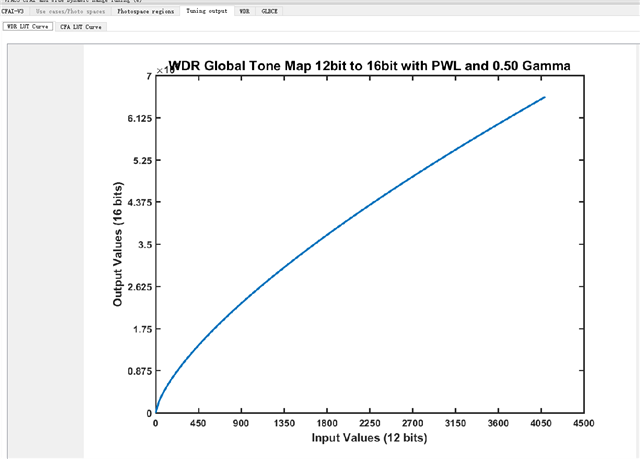

From what I understand, adjusting this curve should lower highlights and brighten shadows.

However, it doesn't seem to be working.

Is there something I'm doing wrong?

Hi meng,

It seems you are working with a 10-bit LDR sensor (probably IMX219).

meng Ke said:

I have two issues:
1. Highlights are blown out
2. When there's a strong contrast between light and dark, the highlights are completely white or the shadows are completely black.

For LDR sensor, the dynamic range is limited by the sensor to 10 linear bits.

You won't be able to see both the bright and dark sides of the scene at the same time.

Hi Gang

My sensor is ox03c10, it's a hdr sensor

I set bit deepth 12

My code is based on imx219, so the name is not changed to ox3c10

Best Regards

Meng

Hi meng,

meng Ke said:

My sensor is ox03c10, it's a hdr sensor

These raw images you shared looks like 10-bit linear images.
They are not HDR images in 12-bit companded format.

• testPic.raw
• testPic(box full light).raw
• testPic(box no light).raw

Hi Gangg,

This is what I captured via LAN using DCC tools.

Do you mean there is something wrong with my settings that is not capturing 12-bit photos?

I'll check my configuration

Best Regards

Meng

Hi Gang

I checked my configuration

I have set bit 12

I don't understand why the image is 10bit

How do you determine the image bit depth?

Best Regards

Meng

meng Ke said:

I don't understand why the image is 10bit

There is probably some issue in your sensor driver.
The sensor is not working in HDR output mode.
You need to check with the driver provider.

Hi Gang

How do you determine the image bit depth?

I can't open raw in PhotoShop or RawTherapee，and I also can not determine it's bit depth

Best Regards

Meng

You may look at the pixel values of the saturated pixels.

Hi Gang

What tool do you use to check pixel values of the saturated pixels?

Best Regards

Meng
