AM62A7: The pins generate a step pattern during power-on.

liu xiwen

Part Number: AM62A7

Tool/software:

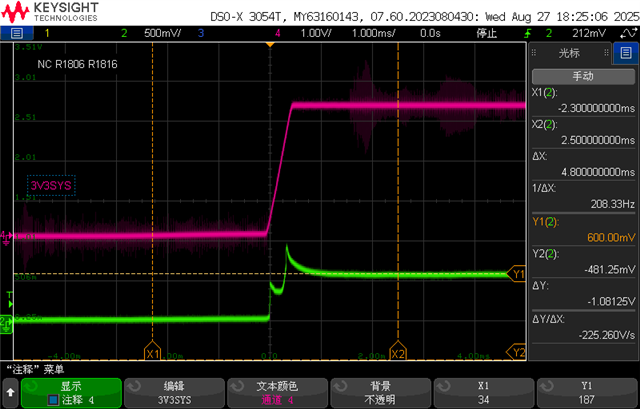

When testing the pins of AM62A7, we found that at the moment of power-on on AB20 (which is used as a GPIO in the 3V3 domain), there would be a step of approximately 0.6V along with the power-on of VCC3V3_SYS. The waveform is as follows.

22 days ago

0 Kallikuppa Sreenivasa 22 days ago

TI__Guru**** 191189 points

Hello Liu Xiwen,

Thank you for the query.

Can you confirm if the pin has a pullup or ppulldown.

Regards,

Sreenivasa

0 liu xiwen 19 days ago in reply to Kallikuppa Sreenivasa

Prodigy 70 points

Yes, I have pulled the 10k resistor down to ground at this pin. The step still exists.

+1 Kallikuppa Sreenivasa 19 days ago in reply to liu xiwen

TI__Guru**** 191189 points

Hello Liu Xiwen,

Thank you.
Can you help me confirm if you are seeing the issue on this specific IO.

Are you able to do similar check on a couple of other IOs.

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa 18 days ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 191189 points

Hello Liu Xiwen,

I see you clicked the resolved button.

Could you please summarize the resolution.

Regards,

Sreenivasa

0 liu xiwen 18 days ago in reply to Kallikuppa Sreenivasa

Prodigy 70 points

Hello，Kallikuppa Sreenivasa

I have reduced the external pull-down resistance of this pin to 1k. When powered on, the step of this pin will decrease to 0.2V,this is very good.However, when I set this pin to a high voltage level, the voltage at the pin could only rise to 0.7V, and it couldn't be pulled up to the 3.3V voltage range. How should this be resolved?

0 Kallikuppa Sreenivasa 18 days ago in reply to liu xiwen

TI__Guru**** 191189 points

Hello Liu Xiwen,

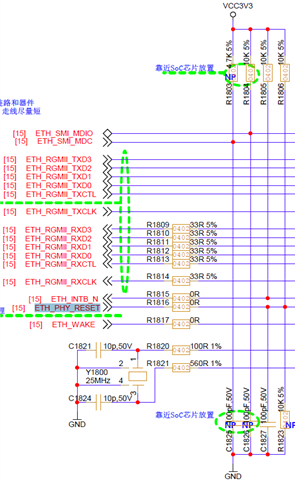

re you able to share the schematics. Can you please disconnect the IO connection made toother device, add a pullup 10K and check the waveform

Regards,

Sreenivasa
