AM625-Q1: I/O lines internal clamping

Abdulkader Al-Obaidi

Prodigy 50 points

Part Number: AM625-Q1

Tool/software:

Do all I/O lines have internal clamping diodes to ground and VCC?

1 day ago

0 Stanislav Stilyanov 19 hours ago

TI__Mastermind 18280 points

Hello Abdulkader,

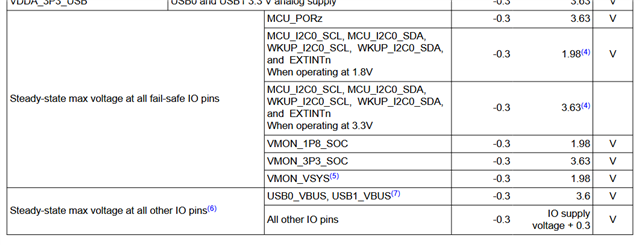

As seen from datasheet section 7.1 Absolute Maximum Ratings, there is a few fail-safe pins and most I/O aren't fail-safe.

Voltage must never exceed absolute maximums.

Please refer to Chapter 7 in the Datasheet for details.

Thanks,

Stan

0 Abdulkader Al-Obaidi 9 hours ago in reply to Stanislav Stilyanov

Prodigy 50 points

So that means that except for fail safe io pins, the rest of Io pins have the clamping diodes. Based on this Article by TI, is this correct? Clamp diodes: A one-way street
