TDA4VEN-Q1: Code Compilation error for Spi driver

Hi,

MCUSW depends on the MCU+SDK corresponding to the same SDK versions.
https://www.ti.com/tool/download/PROCESSOR-SDK-RTOS-J722S

Also, you need to update the "mcu_plus_sdk_INSTALL_PATH" in Rules.make file in MCUSW_J722S_11.01.00.03/mcusw/build/ directory.

Best Regards,
Sudheer

Hi,

We are using ti-processor-sdk-rtos-j722s-evm-11_01_00_04.tar.gz.

Can you please let us know in which file UDMA_INST_ID_MCU_0 is defined as we could not find it in ti-processor-sdk-rtos-j722s-evm-11_01_00_04.tar.gz.

We also observed below warnings while extracting ti-processor-sdk-rtos-j722s-evm-11_01_00_04.tar.gz:

Can you please provide your feedback on this?

BR,

Shubham

Hi,

Shubham Goel said:

Can you please provide your feedback on this?

It seems some symbolic links are missing as you are extracting on the Windows platform.

Please refer to the SDK User Guide. Windows build is not supported. You should use the Linux platform for building.
https://software-dl.ti.com/jacinto7/esd/processor-sdk-rtos-j722s/11_01_00_04/exports/docs/psdk_rtos/docs/user_guide/getting_started_j722s.html#build-demos-from-source

Shubham Goel said:

Can you please let us know in which file UDMA_INST_ID_MCU_0 is defined as we could not find it in ti-processor-sdk-rtos-j722s-evm-11_01_00_04.tar.gz.

As per my knowledge, SPI with DMA is not tested on our side. Let me check internally and get back to you.
Above is a bug when enabling support for SPI with DMA, need to be changed to an appropriate macro as per mcu+sdk.

Best Regards,
Sudheer

Hi,

Doredla Sudheer Kumar said:

As per my knowledge, SPI with DMA is not tested on our side. Let me check internally and get back to you.
Above is a bug when enabling support for SPI with DMA, need to be changed to an appropriate macro as per mcu+sdk.

Can you please provide your feedback on this?

A hotfix will be helpful to fix this compilation issue on our end.

BR,
Shubham

Hi,

Shubham Goel said:

Doredla Sudheer Kumar said:

As per my knowledge, SPI with DMA is not tested on our side. Let me check internally and get back to you.
Above is a bug when enabling support for SPI with DMA, need to be changed to an appropriate macro as per mcu+sdk.

Can you please provide your feedback on this?

A hotfix will be helpful to fix this compilation issue on our end.

SPI with DMA is not supported on TDA4AEN/TDA4AVEN. It was supported on other Jacinto devices like TDA4VL, TDA4VH etc, as it has dependency with PDK UDMA driver.
TDA4EN SDK is MCU + SDK architecture does not include PDK.


So, you have to configure SPI_DMA_ENABLE as STD_OFF.

Best Regards,
Sudheer

Hi,

Doredla Sudheer Kumar said:

So, you have to configure SPI_DMA_ENABLE as STD_OFF.

I am using same configuration as shared by TI with MCAL Package "..\mcal_drv\mcal_config\plugins\J722S\Spi_TI_J722S\config_ext\Spi_Rec.xdm" and SPI_DMA_ENABLE is generated as STD_OFF in Spi_Cfg.h.

The issue is in Spi driver configuration SpiUdmaInstanceId is configured as UDMA_INST_ID_MCU_0 and generated in Spi_PBcfg.c, not defined in Package.

BR,
Shubham

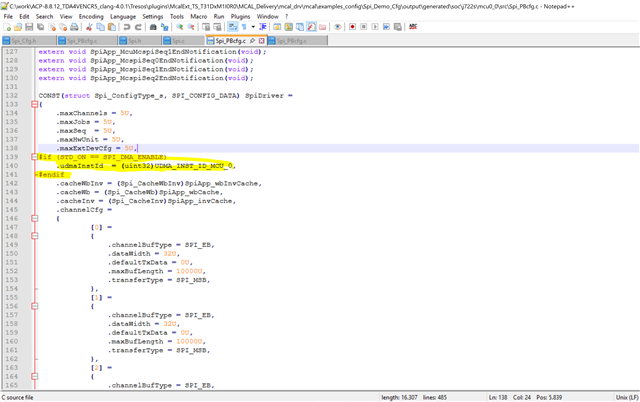

For TI Demo "..\mcal_drv\mcal\examples_config\Spi_Demo_Cfg\output\generated\soc\j722s\mcu0_0\src\Spi_PBcfg.c", SpiUdmaInstanceId is guarded under macro SPI_DMA_ENABLE:

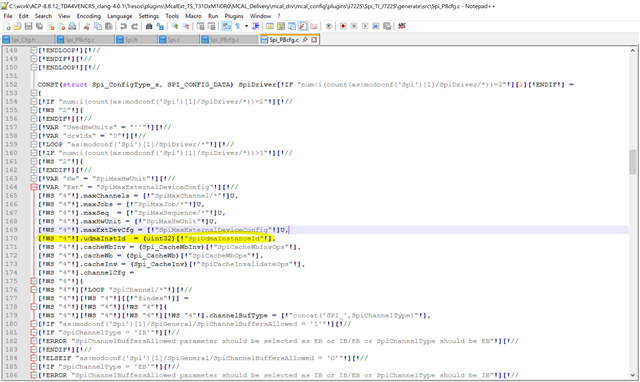

But in MCAL code generator template "..\mcal_drv\mcal_config\plugins\J722S\Spi_TI_J722S\generate\src\Spi_PBcfg.c", there is no guard available so generated without it on EB side and causing issue:

BR,
Shubham

HI,

Shubham Goel said:

But in MCAL code generator template "..\mcal_drv\mcal_config\plugins\J722S\Spi_TI_J722S\generate\src\Spi_PBcfg.c", there is no guard available so generated without it on EB side and causing issue:

Understood thanks for the details, let me check internally and update you.

Best Regards,

Sudheer

Hi,

Doredla Sudheer Kumar said:

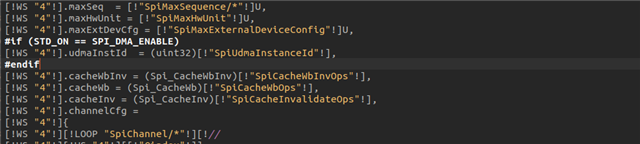

Its a known issue in plugin, We have already updated the plugins and the change will be avaiable in coming SDK release.
FYI:


Till then we suggest to Manual gaurd using SPI_DMA_ENABLE Macro as in SDK.

Thanks for the confirmation.

Could you please share the fix version for this?

BR,
Shubham
