How you get the AEW driver working with the MT9P031?

Andre16038

Expert 1915 points

I have the DM368 I enable the drivers AEW and I'm using the MT9P031 sensor, but somehow the colors are all over exposed, anything I'm missing? the drivers initialized

mt9p031 1-0048: Detected a MT9P031 chip ID 1801
mt9p031 1-0048: mt9p031 1-0048 decoder driver registered !!
vpfe-capture vpfe-capture: v4l2 sub device mt9p031 registered
vpfe_register_ccdc_device: DM365 ISIF
DM365 ISIF is registered with vpfe.
af major#: 252, minor# 0
AF Driver initialized
aew major#: 251, minor# 0
AEW Driver initialized
Trying to register davinci display video device.
layer=c20df400,layer->video_dev=c20df570
Trying to register davinci display video device.
layer=c20df800,layer->video_dev=c20df970
davinci_init:DaVinci V4L2 Display Driver V1.0 loaded

over 13 years ago

0 Prabhakar Lad over 13 years ago

Guru 11260 points

Hi,

The information provided is not suffice, can you attach the images so that we can have a better view of the problem.

You observe the issue on enabling AEW?

Thx,

--Prabhakar Lad

0 Andre16038 over 13 years ago in reply to Prabhakar Lad

Expert 1915 points

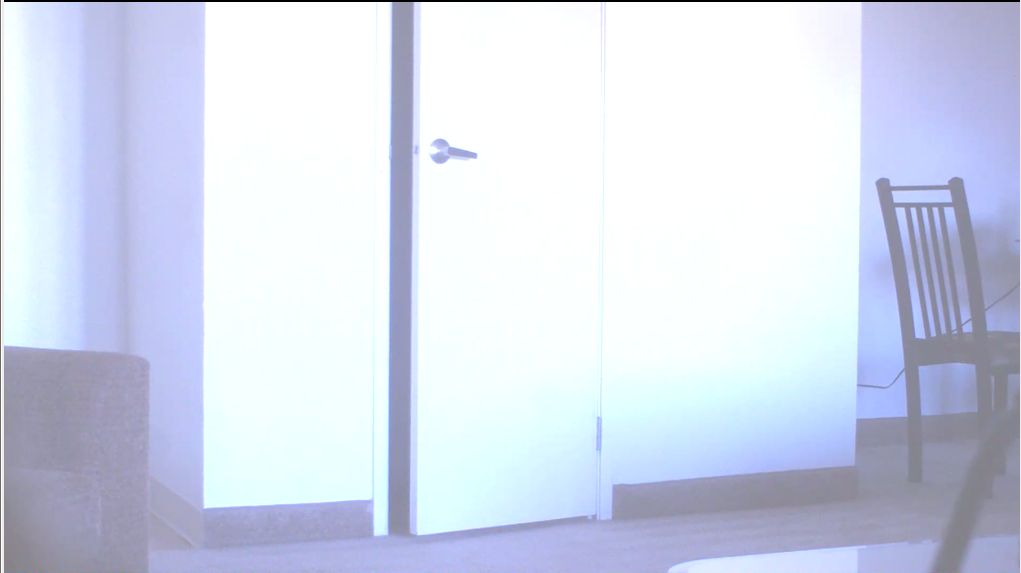

Hi Prabhakar, this is how the image looks, overexposed, I think the AEW driver is not adjusting the colors,

0 Prabhakar Lad over 13 years ago in reply to Andre16038

Guru 11260 points

Hi,

Adjusting the controls to a proper tunned value should solve it. Adjust the gain, exposure initially and see of

you get too see some color.

Thx,

--Prabhakar Lad

0 Andre16038 over 13 years ago in reply to Prabhakar Lad

Expert 1915 points

well it would work for that moment, but then if get's darker, it would be off again, the job of the AEW is to adjust the colors depending on the light. that's the problem I'm having.

0 Rajat Sagar over 13 years ago in reply to Andre16038

TI__Expert 8780 points

Andre,

You can use the H3A output from the ISP H3A engine for your auto exposure algorithm. The algorithm needs to process the H3A data to calculate exposure and gain compensation which needs to be written to the sensor and IPIPE at regular intervals. The intervals could be at best at frame level or at multiple frame level - this would depend upon the quality and usecase you are designing for.

Regards

Rajat

0 Andre16038 over 13 years ago in reply to Rajat Sagar

Expert 1915 points

Rajat I read in a few places in the forum that the DM368 does not have H3A engine, but I could be wrong, can you point me to the tutorial of how to accomplish this,

Thanks,

0 Prabhakar Lad over 13 years ago in reply to Andre16038

Guru 11260 points

Hi Andre,

DM368 does not support the Hardware 3A (H3A) statistics collection module.

Please refer this doc for more details http://www.ti.com/lit/ds/symlink/tms320dm368.pdf page No: 123

Thx,

--Prabhakar Lad

0 Andre16038 over 13 years ago in reply to Prabhakar Lad

Expert 1915 points

yes that's what I though Prabhakar, but do you know how to get the AEW driver working on the DM368?

0 Prabhakar Lad over 13 years ago in reply to Andre16038

Guru 11260 points

Hi Andre,

Set the control's manually, you can set the exposure to auto and try.

Thx,

--Prabhakar Lad

0 Andre16038 over 13 years ago in reply to Prabhakar Lad

Expert 1915 points

HI Prabhakar, it not as easy a just switching a switch, how can you set the exposure to auto??

0 Prabhakar Lad over 13 years ago in reply to Andre16038

Guru 11260 points

Hi Andre,

There is control to set auto exposure too 'V4L2_CID_EXPOSURE_AUTO'.

Thx,

--Praabhakar Lad

0 Andre16038 over 13 years ago in reply to Prabhakar Lad

Expert 1915 points

Praabhakar, that's how is set by default on the MT9P031.c

            qctrl = mt9t031_find_qctrl(V4L2_CID_EXPOSURE);
           mt9t031->exposure =
               (shutter_max / 2 + (mt9t031->height +
               mt9t031->y_skip_top + vblank - 1) *
               (qctrl->maximum - qctrl->minimum)) /
               shutter_max + qctrl->minimum;
           mt9t031->autoexposure = 1;
       } else
           mt9t031->autoexposure = 0;
       break;

but the image still looks like that, and even if I adjust it, and if there is more light in the room everything goes very white, it never auto adjust.

0 Andre16038 over 13 years ago in reply to Andre16038

Expert 1915 points

please someone throw me a bone here, I don't know what's missing to get the white balance and autoexposure working :(

0 Prabhakar Lad over 13 years ago in reply to Andre16038

Guru 11260 points

Hi Andre,

Looks like both Auto Exposure an White Balance on DM368 needs to be set

by controls depending on some fixed algorithm, Setting it auto

'V4L2_CID_EXPOSURE_AUTO' might not help since it calculates same

exposure / shutter settings, whatever if the cmos is inside (low light) or outside(high light).

Refer this post http://e2e.ti.com/support/dsp/davinci_digital_media_processors/f/100/p/60120/215860.aspx#215860

there are algorithms to compute.

Thx,

--Prabhakar Lad

0 Peter Kelly over 12 years ago

Prodigy 60 points

Hi Andre

I am curious to know whether you found a solution to this problem and if indeed it was an exposure problem.

I am using the same sensor with Ridge Run auto exposure algos and whilst the auto exposure seems to run it does not solve my problem.

Best regards,

Peter
