interface 2 analog camera with TMDXLCDK6748 without using external peripherals

Vivek Thaker

Other Parts Discussed in Thread: TMS320C6748

Hi,

I want to interface 2 Analog Composite cameras to TMDXLCDK6748 Development Board.

But the Board has only one Composite input port. Does any body have any idea , how to interface multiple cameras to the board.

Please Provide the scheme for interfacing 2 Analog Cameras without using any external Peripherals.

over 12 years ago

0 Pubesh over 12 years ago

TI__Mastermind 20790 points

Vivek Thaker,

Welcome to the TI E2E forum. I hope you will find many good answers here
In addition you can find some details through the TI.com documents and the TI Wiki Pages.
Be sure to search those for helpful information and to browse for the questions others may have asked on similar topics.

Refer the product link for available features.
http://www.ti.com/tool/TMDXLCDK6748

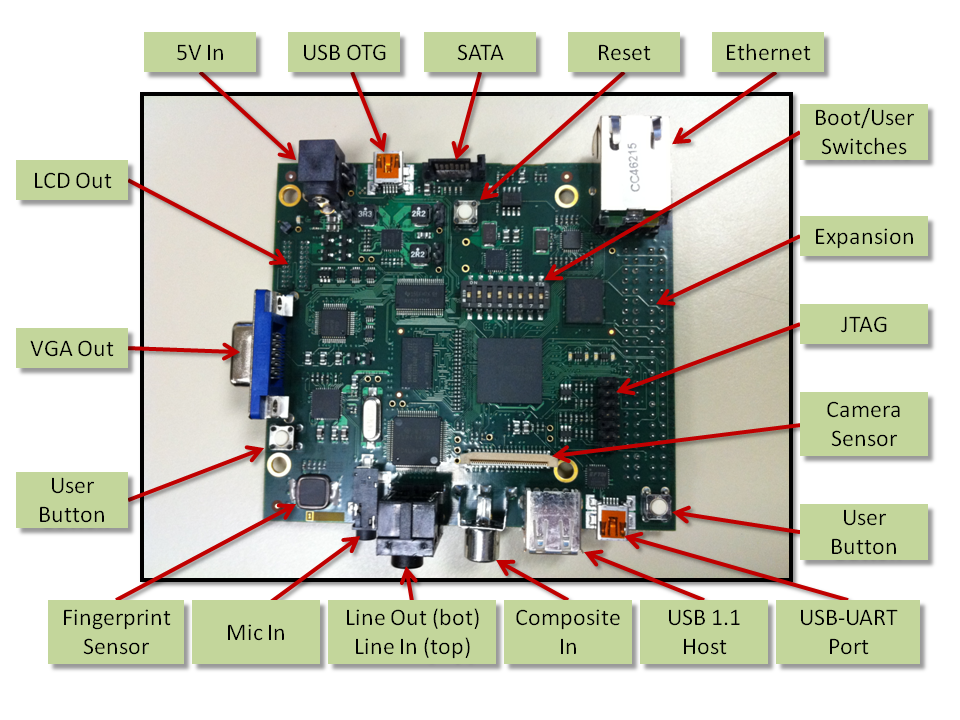

TMDXLCDK6748:
This board have the following interfaces for video capture and display.

One VGA Port (15 pin D-SUB)
One LCD Port (Beagleboard XM connectors)
One Composite Video Input (RCA Jack)
One Leopard Imaging Camera Sensor Input (36-pin ZIP connector)

Please have a look at the below wiki page,
http://processors.wiki.ti.com/index.php/L138/C6748_Development_Kit_(LCDK)
http://processors.wiki.ti.com/index.php/LCDK_User_Guide

In addition, if you want know about VPIF support on TMS320C6748,
Refer the section 5.27 Video Port Interface (VPIF) at the datasheet(SPRS590).
http://www.ti.com/lit/sprs590

0 Vivek Thaker over 11 years ago in reply to Pubesh

Prodigy 175 points

Thanks.

I am using CP-GAC-DC65L2H1 PAL camera with 650 TVL (720 X 480)resolution to run facedetect demo on LCDK6748 Board..

I have modified my code as described in this link

http://e2e.ti.com/support/embedded/starterware/f/790/p/223776/810098.aspx

Still I am not able to display captured image on VGA monitor.

I only get blank screen. Are there any other changes required in the code?

Please Help me to solve this problem.

0 Pubesh over 11 years ago in reply to Vivek Thaker

TI__Mastermind 20790 points

Vivek Thaker,

Since your problem is not completely solved, I would recommend create new thread.
Personally, when I am looking for posts to read and help with, I ignore those that have been answered.
Others may do the same. Are you able to solve video capture issue as you mentioned last post.
If possible please provide a code snippet so that we can examine this issue.
