MCFW problem on tied display

Thomas Lo

Expert 1560 points

I am using DVRRDK 4.0 and DM8168.

When I am only using HDMI or VGA (HDCOMP) as display device. I can get normal output image as expected as follow

However, if I tied HDMI and VGA together, using

Vdis_tiedVencInit(VDIS_DEV_HDMI, VDIS_DEV_HDCOMP, &vdis_para);

The HDMI output still shows the right image,

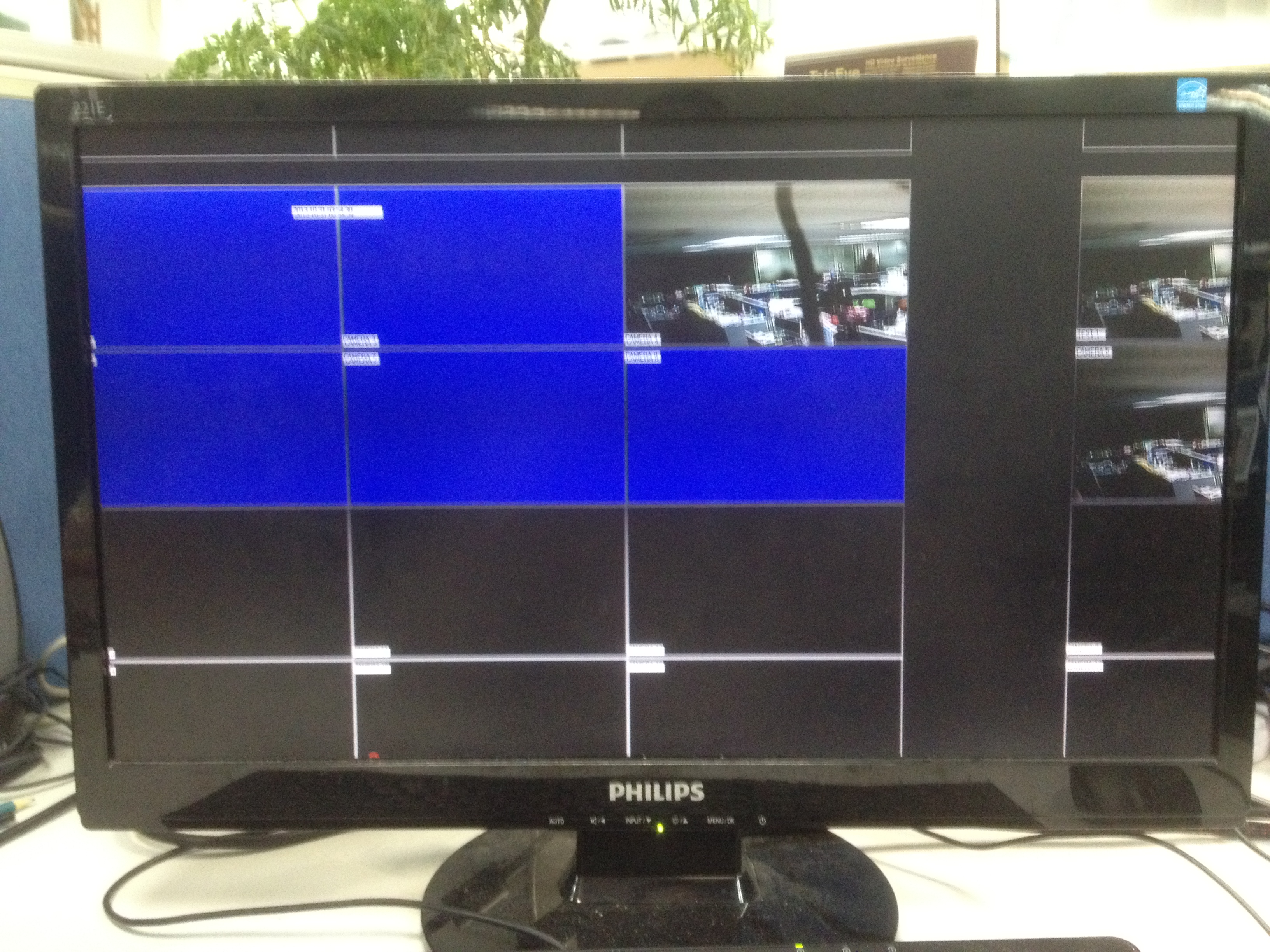

but VGA output give improper output , something like

It seems the positioning gets wrong and the color look a bit strange too.

What could be getting wrong?

Please help, thanks a lot.

p.s. I am another post about changing display resolution in http://e2e.ti.com/support/dsp/davinci_digital_media_processors/f/717/t/298263.aspx
please help and answer that too, thanks

over 12 years ago

0 Thomas Lo over 12 years ago

Expert 1560 points

any idea please? thanks

0 Badri Narayanan over 12 years ago in reply to Thomas Lo

TI__Guru 59700 points

Are you u testing with DVR RDK demo or is it your own application. Share the console logs when issue occurs. It looks like issue is VGA SWMS layout is wrong since it is using the layout for DVO2 instead of using the HDMI layout.

0 Thomas Lo over 12 years ago in reply to Badri Narayanan

Expert 1560 points

I am running my own application on a customized board, the console log is in below. And I have tried running the DVRRDK demo and it gives same performance. So does it mean it fails to tied the two display on my board? How could I check this and fix it?

Thanks
