C674x/OMPA-L13x: SPI NOR Boot

Kaka

Guru 24520 points

Other Parts Discussed in Thread: OMAP-L138, OMAP-L137

Hi Community member,

Please let me confirm the following question.

[Question]

Can C674x or OMAP-L13x support the Serial NOR Flash boot?

[Background]]

According to the datasheet, C674x can support SPI boot.

So, I think that those devices can support SPI NOR flash boot.

If you have any questions, please let me know.

Best regards.

Kaka

over 12 years ago

0 Prabhakar Lad over 12 years ago

Guru 11260 points

Hi,

You can refer this link http://www.ti.com/lit/an/sprab41d/sprab41d.pdf

for OMAP-L138.

Thanks,

--Prabhakar Lad

https://www.linkedin.com/in/prabhakarlad

0 Kaka over 12 years ago in reply to Prabhakar Lad

Guru 24520 points

Hi,

Thanks for your advice.

I have already checked the document which you were wrote. And this documents was said the same description as C674x bootloader.

I would like to know whether C674x/OMAP-L13x can boot from Serial NOR.

Thanks,

Kaka

0 Shankari G over 12 years ago in reply to Kaka

TI__Mastermind 43955 points

Hi Kato Motoki,

Kato said:
I would like to know whether C674x/OMAP-L13x can boot from Serial NOR.

Yes, C6748/OMAP-L138 can boot from NOR flash.

But, C6747/OMAP-L137 can boot only from SPI/NAND and not NOR.

The NOR boot configuration for C6748/OMAP-L138 is given in the document referred by Prabhakar Lad.

For flashing images to NOR flash, you can refer to http://processors.wiki.ti.com/index.php/GSG:_DA8x/OMAP-L1/AM1x_DVEVM_Additional_Procedures#Flashing_images_to_NOR_Flash

For booting from NOR flash you can refer to http://processors.wiki.ti.com/index.php/GSG:_DA8x/OMAP-L1/AM1x_DVEVM_Additional_Procedures#Booting_from_NOR_Flash

Regards,

Shankari

-------------------------------------------------------------------------------------------------------

Please click the Verify Answer button on this post if it answers your question.
--------------------------------------------------------------------------------------------------------

0 Kaka over 12 years ago in reply to Shankari G

Guru 24520 points

Hi Shankari,

Thank you for your response.

Please let me confirm the following question just in case.

[Question]

Can C6748 support the boot mode by both the parallel NOR( by using the EMIF) and the Serial NOR( by using the SPI)? i.e. This device can boot by either NOR.
Is my understanding correct?

I knew that this device can support NOR flash (EMIF) boot, however I do not know that this device can support serial NOR boot.

Thanks,

Kaka

0 Pubesh over 12 years ago in reply to Kaka

TI__Mastermind 20790 points

Kaka,

NOR Boot:
NOR (or parallel Flash) boot happens from a NOR Flash device connected to the external memory
interface (EMIFA) peripheral on EMA_CS[2].
http://processors.wiki.ti.com/index.php/Connecting_NOR_Flash_to_OMAP-L138
http://processors.wiki.ti.com/index.php/Boot_Images_for_OMAP-L138

Flash the AIS image:

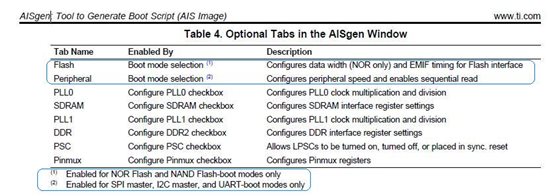

For NAND, NOR, and SPI bootmodes, use the serial flasher utility to flash the image to the desired boot medium using the "-flash_noubl" option.
See the serial flasher wiki for more details.
http://processors.wiki.ti.com/index.php/Serial_Boot_and_Flash_Loading_Utility_for_OMAP-L138
