Help using GPIO pins to control LEDs for the TMS320C6672

Bill,

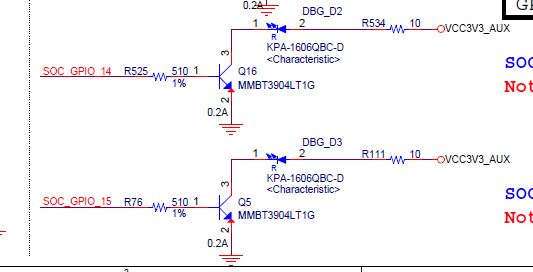

Thanks for responding to my post. How about this design?  I use a Digitally Controlled Analog Switch and buffer. During Full Reset which is a low, the Analog Switch switched to the Configuration setting, either a pull-up or a pull-down. After reset, that is when the Full Reset is a high then the switch will be able to control the LED. I've also attached the .jpg file for a closer look.

Sorry for attaching the picture twice.

Joe,

The switch portion of the circuit looks ok but I don't see how the 74LVC07 can turn the LED off. It appears that there is always a path to ground which will keep the LED lite. I think it would work if you remove the connection to ground between the LED and the 07 buffer. Also, if you are only driving a single LED so you may want to use the SN74LVC1G07. This is a single buffer version of the part you've selected.

Regards, Bill

Bill,

HI, you are absolutely correct! Thank you for catching my error. The ground should not be there.

Thanks for all your suggestions.

joe
