EEPROM

Avinash Neethi1

Expert 2125 points

Other Parts Discussed in Thread: TMS320C6678

Hi All,

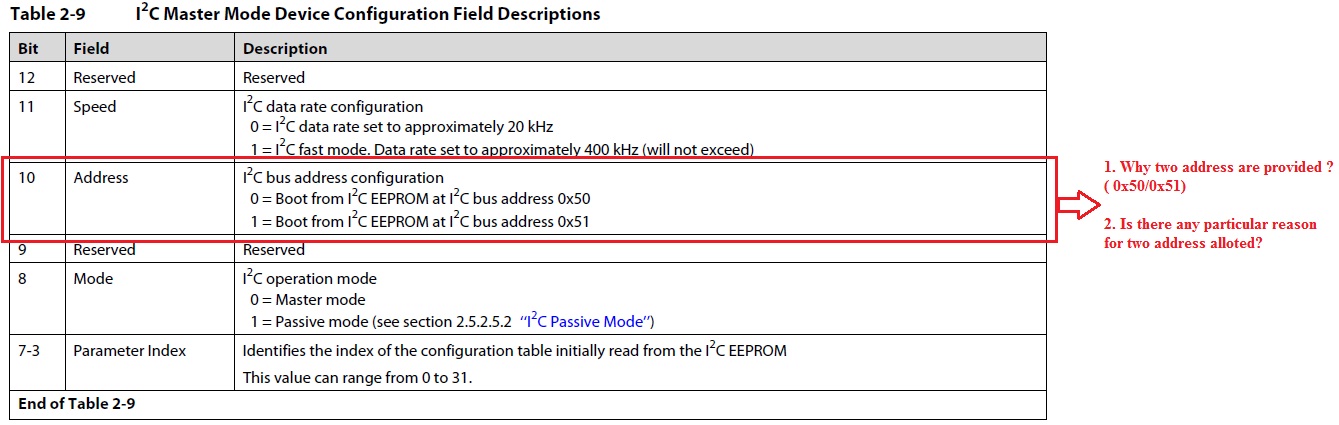

In TMS320C6678 Multicore Fixed and Floating-Point Digital Signal Processor Datasheet,

Section (2.5.2.5) I2C Boot Device Configuration,

2.5.2.5.1 I2C Master Mode,

Questions?

1. Why two address are provided ( 0x50 / 0x51 ) ?

2. If they are provided for any particular reason, can you explain?

Regards,

Avinash N

over 11 years ago

0 Ganapathi Dhandapani95 over 11 years ago

TI__Mastermind 28085 points

Hi Avinash,

There are two banks in the I2C SEEPROM which respond separately at addresses 0x50 and 0x51. These banks can be loaded with demonstration programs. Currently, the bank at 0x50 contains the I2C boot code and PLL initialization procedure and the bank at 0x51 contains the second level boot-loader program. The second level boot-loader can be used to run the POST program or launch the OOB demonstration from NOR flash memory.

Refer section "2.5 I2C Boot EEPROM / SPI NOR Flash" in TMDXEVM6678L Technical Reference Manual. Use below link to download EVM TRM.

http://www.advantech.com/Support/TI-EVM/6678le_download.aspx

Thanks,

0 Avinash Neethi1 over 11 years ago in reply to Ganapathi Dhandapani95

Expert 2125 points

Hi Ganapathi Dhandapani,

In our customized Board, we are using 128KB of EEPROM. Our Doubt is Whether in 0x50 can load with IBL code and in 0x51 can we load with our customized application code or can we perform vice-verse. Is it possible that the above can be implemented.

Regards,

Avinash N

0 Ganapathi Dhandapani95 over 11 years ago in reply to Avinash Neethi1

TI__Mastermind 28085 points

Hi Avinash,

It is not possible.

IBL is flashed at EEPROM 0x51 address and POST is flashed at EEPROM 0x50 address. Refer MCSDK user guide for information.

Thanks,

0 Mounika Anugula over 8 years ago in reply to Ganapathi Dhandapani95

Intellectual 340 points

Hi,

IBL can be loaded in i2c 0x50 address ??

We loaded IBL to 0x50 and boot settings are also proper but still IBL is not booting.

What issues can be there for IBL booting?

Thanks,

Mounika Anugula
