DM8168 capture tvp7002 RGB video frame which have black bar and grey bar.why?

Hello,

What is the software release that you are using here?

Are you using v4l2 for capture?

Could you attach the image how it looks like?

Best Regards,

Margarita

Hello,

If you are using EZSDK & V4L2 you could check this e2e forum thread also:

http://e2e.ti.com/support/dsp/davinci_digital_media_processors/f/717/t/154092.aspx?pi199607=1

Best Regards,

Margarita

Hi Quote,

    Thanks for your reply.

    My board is DM8168 EVM.I use RDK 3.0 not EZSDK.

Ensure you are setting capturePrm.enableSDCrop = FALSE. Share logs of Vsys_printDetailedStatistics captured 3 times with 1 min interval. If you are encoding the captured video pls attach the elementary .264 stream.

Hi Quote,

    Thank you for your reply.

    I have changed capturePrm.enableSDCrop = FALSE,but the problem is the same.

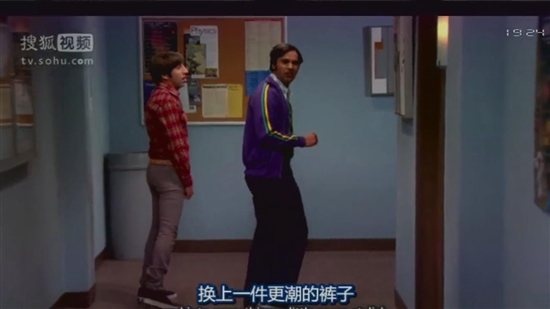

    I change the sync type with hs and vs,have other problem.the top of picture have a black bar,and the bottom of picture loss something.Can you tell me how to change parameters?The picture is :

  thanks,

up

please help me

When you use discrete sync capture, it will capture horizontal blanking as well as some portion of the vertical blanking. This needs to be cropped either in the application or using scalar/VIP trimmer. Without trimming, you will some blanking data at the top of the image and some blanking data at the left or right portion of the image..

Rgds,

Brijesh
