what is the unit of vsync of display in am335x platform

bikash bag

Hi, I am using Kyocera tft display of 800x480 resolution. in the display parameters, what the value I should specify for hsync and vsync. The hsync is specified as 1056 Tc and vsync is specified as 525 Th. Tc= 33MHz, Th = hsync.

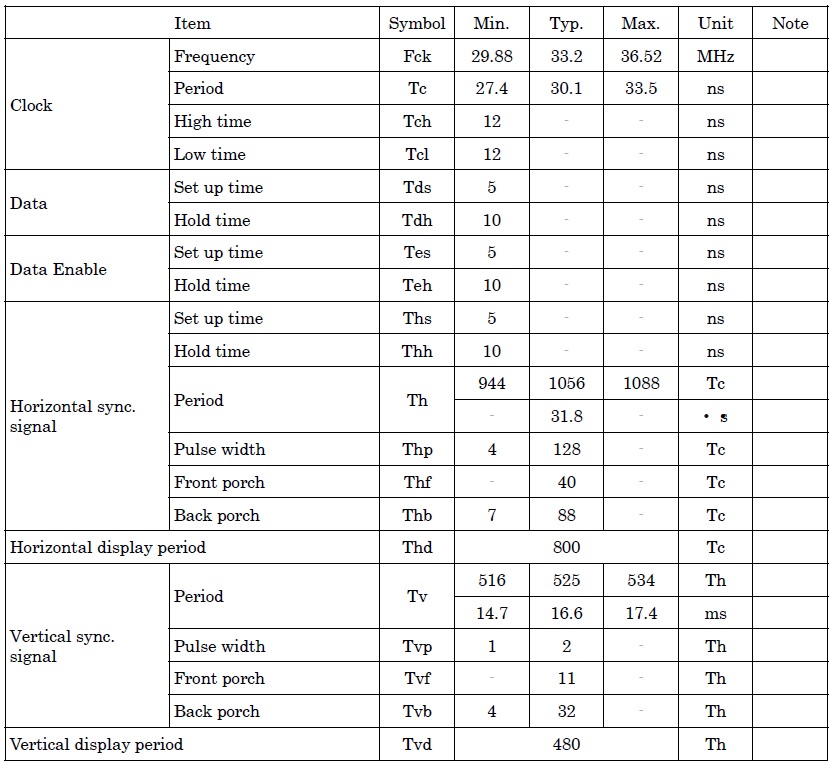

I have attached the table of parameters from the data sheet. Please, reply asap as it is very urgent for me.

Thanks

Bikash

over 10 years ago

0 Biser Gatchev-XID over 10 years ago

TI__Guru**** 393215 points

Hi Bikash,

HSYNC and VSYNC should be specified as number of pixel clocks.

0 bikash bag over 10 years ago in reply to Biser Gatchev-XID

Intellectual 420 points

Hi Biser, thanks for the quick response, with reference to the above table, can you please help me, what value I should specify for hsync, vsync, front porch and back porch.

Thanks

Bikash

0 bikash bag over 10 years ago in reply to bikash bag

Intellectual 420 points

are the following values are correct ?

clk=33

hsync=1056

vsync=525*1056

horizontal front porch=40

horizontal back porch=88

vertical front porch=11

vertical back porch=32

0 Biser Gatchev-XID over 10 years ago in reply to bikash bag

TI__Guru**** 393215 points

I don't know what software you are using, but in SDK 6.0 you can add your display and it should look something like:

File "da8xx-fb.c":

[number] = {

.name = "DISPLAY_NAME",

.width = 800,

.height = 480,

.hfp = 40,

.hbp = 88,

.hsw = 128,

.vfp = 11,

.vbp = 32,

.vsw = 2,

.pxl_clk = 33200000,

.invert_pxl_clk = 0,
