No Reaction on Debbuging ICE AM3359 v1 with i2c_led

Hello,

Please make sure that you are following the instructions here - http://processors.wiki.ti.com/index.php/AM335x_SYSBIOS_Industrial_SDK_Getting_Started_Guide#Launching_and_Debugging_application_in_CCS

Regards,
Vinesh

Yes i did it step by step, but no reaction on the Board.

Also suspending and resuming has no effect.

Confusing for me is that debugging the isdk_spi-flasher is working.

with the flasher i can write to the memory and the i2c_led-example works.

as well the ethercat example is working.

i#m very frustrated.. furthermore this is my bachelorthesis..

do you have any tip for direct support?

Can you be more specific on the issue you are observing? Is the control coming to main? Is the application crashing?

Regards,
Vinesh

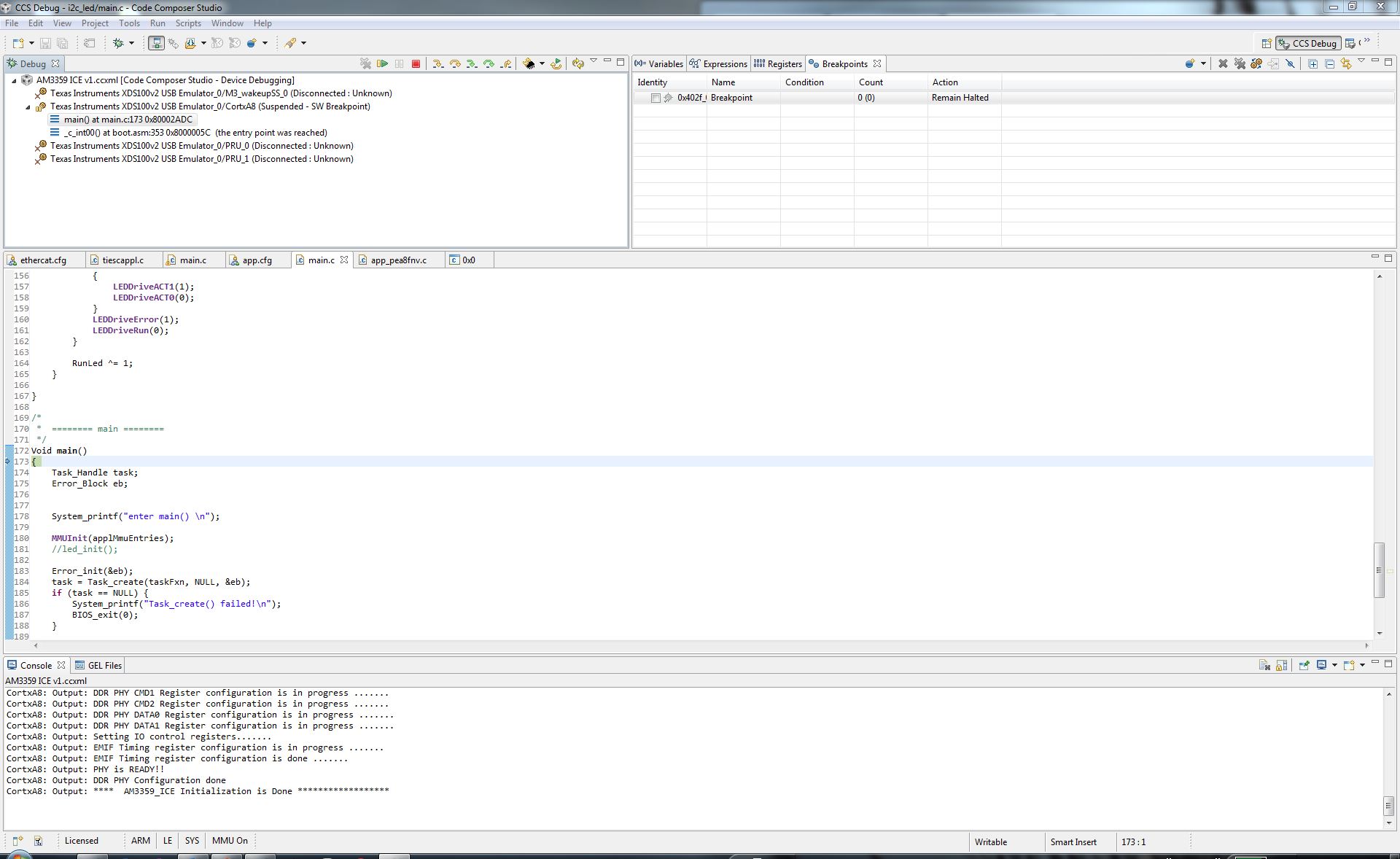

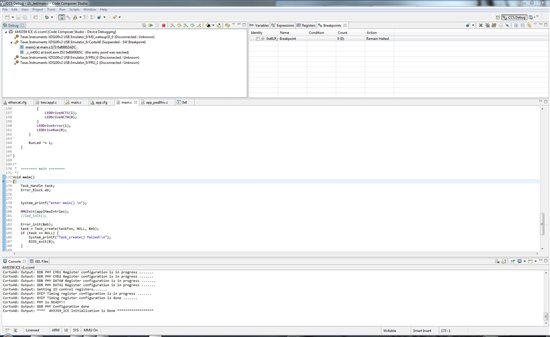

i took a screenshot of the issue:

there you can see the pc is on main()

when i press the resume button there is noch reaction.

the cortexA8 changes the state from suspend to running.

anyway there is no error messages in the console.

Which board are you working on? What tools(CCS, SYS/Bios, ISDK etc.)?

Regards,
Vinesh

I'm working with TMCXICE3359 v1 REV. 1.0A

CCS 5.5.0

BIOS 6.37.04.32

XDCtools 3.25.06.96

NDK 2.24.00.01

AM335x_sysbios_ind_sdk_1.1.0.4

The ISDK examples are tested over ICEv1 and v2. The tools you use looks good too. Can you step into the code and check what's going wrong?

Regards,
Vinesh

if i step trough the code there is no error..

i start at the main till i reach the BIOS_start().

then there isn't anymore to step.

do you have a direct contact for me?

After Bios_start, the application will execute the Tasks created in Main. In this case, put a breakpoint in taskFxn, the control should get there.

Regards,
Vinesh

if i reach line 106: task_sleep(2000) i cant step anymore.

the buttons for step into / step over are grey.

the code example:

		OLEDShowString(1,(unsigned char *)lcd_str2,1,0);
		OLEDDeactivateScroll();
		OLEDContinuousScroll(0x01,0x01,Max_Column,0x00,0x00,0x01,0x06,0x01);
    }

	LEDInit();

    LEDDIGOUTSetVal(led_val);
    Task_sleep(2000);
    led_val = 0;
    LEDDIGOUTSetVal(led_val);
    Task_sleep(1000);

	if(AM335X_BOARD_TYPE_ICE_V2 == boardType)
	{
		LEDGPIOSetVal(0,16 ,0);
		LEDGPIOSetVal(0,17 ,0);
		LEDGPIOSetVal(0,19 ,0);
		LEDGPIOSetVal(0,20 ,0);
		LEDGPIOSetVal(1,30 ,0);

task_sleep adds a delay of 2 seconds, which means you will get into the next line only after 2 seconds.

What's the status of the LEDs at this point? If the LEDDIGOUTSetVal is called, all 8 LEDs should be on.

Regards,
Vinesh

waiting for 2 seconds was my hope but there was no reaction.

the leds didn't change the status.

i will remind:
if i flash the memory the i2c_led example is working.

That should not happen. Are the UART logs up as expected?

Regards,
Vinesh

where can i read the uart logs?

in the register view in debug mode?

Connect via Teraterm or any other terminal app. The setting to configure are - host serial port is configured at 115200 baud, no parity, 1 stop bit and no flow control.

Regards,
Vinesh

so you mean when i execute the i2c_led example there is an output on the DB-9 connector?

so you mean when i execute the i2c_led example there is an output on the DB-9 connector?

Sorry, now i got it.

connected to com port 14 (usb interface) i received some characters while debbugging step by step.

the caracters were wery abstarct and confusing.

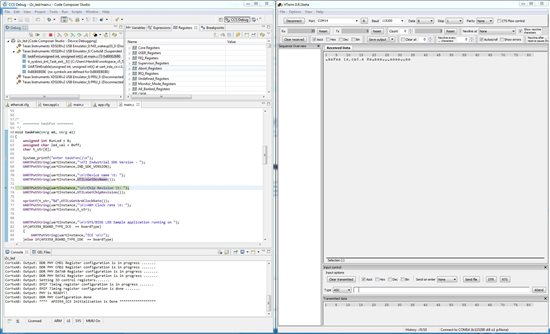

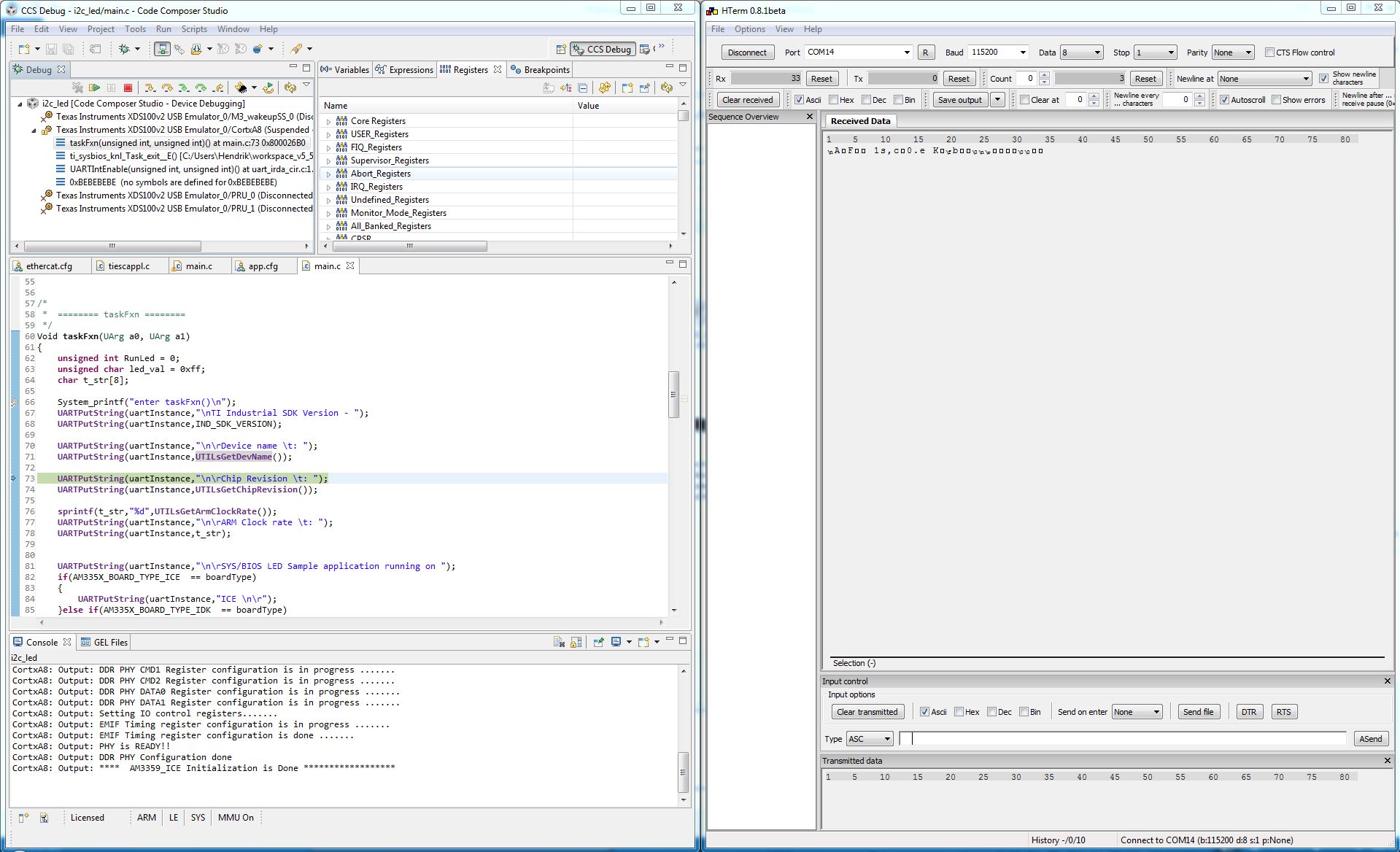

i took a screenshot:

Hi Hendrik,

         Not sure why you are not getting proper characters. The Hterm configurations looks okay to me(from the screenshot)  though i havent used it. Can you try displaying it on any other serial console terminal application.

Regards,

Prajith

Hey Prajith,

i dont think that this is the point of using the woring terminal program.

the led status didn't change although the pc counter reaches the LEDDIGOUTSetVal().

i think there is anythin wrong with my board.

Hi,

       Are you able to run the prebuilt binaries that comes along with the ISDK installation.You can try the i2c_led example prebuilt binary to make sure your board is working.

Regards,

Prajith

do you mean the prebuilt of this package?

"am335x_sysbios_ind_sdk_prebuilt_01_01_00_04"

there is only a *.bin available. i cant debug this file.

i can flash it only to the memory.

Hi,

         You can flash and check whether the board is working or not. These prebuilt binaries are tested and hence you can rule out board related issues

Regards,

Prajith

possibly my english is difficult to understand, but i mentioned in previous posts, tha the board is working when i flash the memory.

the board itself is working, however the debug does not.

what's about a direct phone support in this case?

Hi,

        In this scenario ( SPI binary is working and the .out is not working), the only case i can think of is loading  wrong GEL files. You need to use teh file TMDXICE3359.gel for ICEV1.

Regards,

Prajtih

Hey Prajith,

i checked the GEL file and it is the correct one.

now i'm getting another error: (it's really frustrating to work with this board)

**** Build of configuration Debug for project i2c_led ****

"C:\\ti\\ccsv5\\utils\\bin\\gmake" -k all
'Building target: i2c_led.out'
'Invoking: ARM Linker'
"C:/ti/ccsv5/tools/compiler/arm_5.1.8/bin/armcl" -mv7A8 --code_state=32 --abi=eabi -me -g --define=am3359 --diag_warning=225 -z -m"i2c_led.map" --heap_size=0x800 --stack_size=0x800 -i"C:/ti/ccsv5/tools/compiler/arm_5.1.8/lib" -i"C:/ti/ccsv5/tools/compiler/arm_5.1.8/include" --reread_libs --warn_sections --xml_link_info="i2c_led_linkInfo.xml" --rom_model -o "i2c_led.out" -l"./configPkg/linker.cmd" "./main.obj" "../AM3359.cmd" -l"C:\ti\am335x_sysbios_ind_sdk_1.1.0.4\sdk/os_drivers/lib/sys_bios_driver.lib" -l"C:\ti\am335x_sysbios_ind_sdk_1.1.0.4\sdk/platform/am335x/lib/am335x_platform.lib" -l"C:\ti\am335x_sysbios_ind_sdk_1.1.0.4\sdk/starterware/binary/armv7a/cgt_ccs/am335x/drivers/drivers.lib" -l"C:\ti\am335x_sysbios_ind_sdk_1.1.0.4\sdk/starterware/binary/armv7a/cgt_ccs/am335x/evmAM335x/platform/platform.lib" -l"rtsv7A8_A_le_n_v3_eabi.lib"
<Linking>
"../AM3359.cmd", line 20: error: SRAM memory range overlaps existing memory
range SRAM_HI
"../AM3359.cmd", line 21: error: L3OCMC0 memory range overlaps existing memory
range OCMC_SRAM
"../AM3359.cmd", line 24: error: DDR0 memory range overlaps existing memory
range DDR3
error: errors encountered during linking; "i2c_led.out" not built

>> Compilation failure
gmake: *** [i2c_led.out] Error 1
gmake: Target `all' not remade because of errors.

**** Build Finished ****

i proceeded like in the getting started guide.

loading the trarget file, executing the gel-script and then loading the program.

On the build error, it's because somehow your project includes AM3359.cmd(in Project Properties->General->Linker Command File).

I still can't figure out why you can't debug the generated .out . Just to make sure, here are the steps to be followed.

* Create a proper target connection, and launch it
* Connect to A8
* Suspend the processor(Pause symbol). If there is a valid bootloader and application in NOR/SPI, the application would execute by default. To prevent this put a hardware breakpoint at 0x402f0400(in case you selected SPI boot mode) or 0x08000000(in case you selected NOR boot mode). Then do a "System Reset". One of these breakpoints should be hit at this point.
* Execute the GEL scripts(load and execute TMDXICE3359.gel)
* Load the .out
* Execute the application

Regards,
Vinesh

this time this error occured:

[CortxA8] 0x481aa000 R8 = 0x00000005
R1 = 0x44e108c0 R9 = 0x4030cdf4
R2 = 0x00000000 R10 = 0x00029940
R3 = 0x0000002c R11 = 0x00029940
R4 = 0x00000005 R12 = 0x8001b0ce
R5 = 0x481a6000 SP(R13) = 0x8001a090
R6 = 0x481aa000 LR(R14) = 0x8000a7f7
R7 = 0x481aa000 PC(R15) = 0x800019a6
PSR = 0x2000019f
DFSR = 0x00001008 IFSR = 0x00000000
DFAR = 0x481aa054 IFAR = 0x00000000
ti.sysbios.family.arm.exc.Exception: line 180: E_dataAbort: pc = 0x800019a6, lr = 0x8000a7f7.
xdc.runtime.Error.raise: terminating execution

actually i cant insert an image. so check this screenshot from my dropbox:

https://www.dropbox.com/s/b99oqfm6kjwf2q0/error.JPG?dl=0
