hello
I am using EMIFA in tms320c6747zkb3 in sram mode. The CLKIN is 24MHz. found the one IMIFA write cycle takes 300 nsec. Why this much time ? for verification I have measure the EMIFA clock source and found that it is at 133 MHz.(it is ok).I only write data from cs4, no any divice to connect.I flash the *.bin file to spi. C6747 boot from spi divice. I don't konwn what's wrong.I set the register follow:
*Enable Function for PSC0*/
void PSC0_lPSC_enable(Uint8 PD, Uint8 LPSC_num)
{
*(Uint32*) (PSC0_MDCTL+4*LPSC_num) = (*(Uint32*) (PSC0_MDCTL+4*LPSC_num) & 0xFFFFFFE0) | 0x0003;
PSC0_PTCMD = 0x1<<PD;
while( (PSC0_PTSTAT & (0x1<<PD) ) !=0) ; /*Wait for power state transition to finish*/
while( (*(Uint32*)(PSC0_MDSTAT+4 * LPSC_num) & 0x1F) !=0x3);
}
/*Enable Function for PSC1*/
void PSC1_lPSC_enable(Uint8 PD, Uint8 LPSC_num)
{
*(Uint32*) (PSC1_MDCTL+4*LPSC_num) = (*(Uint32*) (PSC1_MDCTL+4*LPSC_num) & 0xFFFFFFE0) | 0x0003;
PSC1_PTCMD = 0x1<<PD;
while( (PSC1_PTSTAT & (0x1<<PD) ) !=0) ; /*Wait for power state transition to finish*/
while( (*(Uint32*)(PSC1_MDSTAT+4 * LPSC_num) & 0x1F) !=0x3);
}
void initpsc( void)
{
// PSC0
PSC0_lPSC_enable(0, 0);
PSC0_lPSC_enable(0, 1);
PSC0_lPSC_enable(0, 2);
PSC0_lPSC_enable(0, 3); // EMIFA
PSC0_lPSC_enable(0, 4);
PSC0_lPSC_enable(0, 5);
PSC0_lPSC_enable(0, 6);
PSC0_lPSC_enable(0, 8);
PSC0_lPSC_enable(0, 9);
PSC0_lPSC_enable(0, 10);
PSC0_lPSC_enable(0, 11);
PSC0_lPSC_enable(0, 12);
PSC0_lPSC_enable(0, 13);
// PSC1
PSC1_lPSC_enable(0, 1);
PSC1_lPSC_enable(0, 2);
PSC1_lPSC_enable(0, 3);
PSC1_lPSC_enable(0, 4);
PSC1_lPSC_enable(0, 5);
PSC1_lPSC_enable(0, 6); // EMIFB
PSC1_lPSC_enable(0, 7);
PSC1_lPSC_enable(0, 8);
PSC1_lPSC_enable(0, 9);
PSC1_lPSC_enable(0, 10);
PSC1_lPSC_enable(0, 11);
PSC1_lPSC_enable(0, 12);
PSC1_lPSC_enable(0, 13);
PSC1_lPSC_enable(0, 16);
PSC1_lPSC_enable(0, 17);
PSC1_lPSC_enable(0, 20);
PSC1_lPSC_enable(0, 21);
PSC1_lPSC_enable(0, 24);
PSC1_lPSC_enable(0, 25);
PSC1_lPSC_enable(0, 26);
PSC1_lPSC_enable(0, 31);
}
void SystemConfig(void)
{
KICK0R = 0x83e70b13; // Kick0 register + data (unlock)
KICK1R = 0x95a4f1e0; // Kick1 register + data (unlock)
PINMUX0 = 0x11111188; // EMIFB, Check EMU0/RTCK
PINMUX1 = 0x11111111; // EMIFB
PINMUX2 = 0x11111111; // EMIFB
PINMUX3 = 0x11111111; // EMIFB
PINMUX4 = 0x11111111; // EMIFB
PINMUX5 = 0x11111111; // EMIFB
PINMUX6 = 0x11111111; // EMIFB
PINMUX7 = 0x18111111; // EMIFB, SPI0,GP5[3]
PINMUX8 = 0x21122111; // UART2, McASP1, I2C0, I2C1
PINMUX9 = 0x11021111; // RMII CLK, McASP0, USB_DRVVBUS, UART2
PINMUX10 = 0x22222228; // RMII/ McASP0
PINMUX11 = 0x11112222; // McASP1, UART1, McASP0, MDIO (last 2 digits 0x22 for MDIO instead of GPIO)
PINMUX12 = 0x11111111; // McASP0 / McASP1
PINMUX13 = 0x11888888;//0x22111111; // SD / McASP1
PINMUX14 = 0x11111111;//0x88222222; // SD / EMIFA
PINMUX15 = 0x11111111;//0x21888888; // SD / EMIFA
PINMUX16 = 0x11111111;//0x11111112; // SD / EMIFA
PINMUX17 = 0x20111111;//0x20100111; // EMIFA,EMA_CS4********
PINMUX18 = 0x11111112;//0x11111112; // EMIFA,EMA_CS5,EMA_CS3,EMA_CS2
PINMUX19 = 0x00000001; // EMIFA
KICK0R = 0; // Kick0 register + data (lock)
KICK1R = 0; // Kick1 register + data (lock)
}
void InitPLL(void)
{
int i = 0;
/* Configure ARM, DSP at 300MHz, EMIFs at 133MHz */
//Uint8 DIV45_EN = 1;
Uint8 CLKMODE = 0;
Uint8 PLLM = 24;
Uint8 POSTDIV = 1;
Uint8 PLLDIV2 = 2;
Uint8 PLLDIV3 = 2;
Uint8 PLLDIV5 = 2;//5
Uint8 PLLDIV7 = 7;
Uint8 PREDIV = 0;
// Moved step 2c and 2d to step 0
/*Set PLLEN=0 and PLLRST=0, Reset the PLL*/
PLL0_PLLCTL &= 0xFFFFFFF6; /*PLL BYPASS MODE*///********0xFFFFFFFE
/*wait for 4 cycles to allow PLLEN mux switches properly to bypass clock*/
for(i=0; i<PLLEN_MUX_SWITCH; i++) {;} /*Make PLLEN_MUX_SWITCH as bootpacket*/
/*Select the Clock Mode bit 8 as External Clock or On Chip Oscilator*/
PLL0_PLLCTL &= 0xFFFFFFFF; //***************************0xFFFFFEFF
PLL0_PLLCTL |= (CLKMODE<<8); /* Make CLKSRC as BootPacket to pass the value*/
/*Set PLLENSRC '0',bit 5, PLL Enable(PLLEN) selection is controlled through MMR*/
PLL0_PLLCTL &= 0xFFFFFFDF;
/*PLLCTL.EXTCLKSRC bit 9 should be left at 0 for Primus*/
PLL0_PLLCTL &= 0xFFFFFDFF;//*************0xFFFFFDF
/* Clear PLLRST bit to 0 -Reset the PLL */
PLL0_PLLCTL &= 0xFFFFFFF7;
/*Disable the PLL output*/
PLL0_PLLCTL |= 0x10;
/*PLL initialization sequence*/
/*Power up the PLL- PWRDN bit set to 0 to bring the PLL out of power down bit*/
PLL0_PLLCTL &= 0xFFFFFFFD;
/*Enable the PLL from Disable Mode PLLDIS bit to 0 - This is step is not required for Primus*/
PLL0_PLLCTL &= 0xFFFFFFEF;///*****************0xFFFFFFEF
for(i=0; i<0xffff; i++) {;} /*PLL stabilisation*/
/*PLL stabilisation time- take out this step , not required here when PLL in bypassmode*/
// for(i=0; i<PLL_STABILIZATION_TIME; i++) {;} /* Make PLL_STABILIZATION_TIME as bootpacket*/
PLL0_PREDIV = 0x8000 | PREDIV;
/*Program the required multiplier value in PLLM*/
PLL0_PLLM = PLLM; /* Make PLLMULTIPLEIR as bootpacket*/
/*If desired to scale all the SYSCLK frequencies of a given PLLC, program the POSTDIV ratio*/
PLL0_POSTDIV = 0x8000 | POSTDIV; /* Make POSTDIV as bootpacket*/
/*If Necessary program the PLLDIVx*/
/*Check for the GOSTAT bit in PLLSTAT to clear to 0 to indicate that no GO operation is currently in progress*/
while(PLL0_PLLSTAT & 0x1==1){}
/*Program the RATIO field in PLLDIVx with the desired divide factors. In addition, make sure in this step you leave the PLLDIVx.DxEN bits set so clocks are still enabled (default).*/
// PLL0_PLLDIV2 = 0x8000 | PLLDIV2; /* Make PLLDIV2 as bootpacket, do it for other PLLDIVx to if required*/
PLL0_PLLDIV3 = 0x8000 | PLLDIV3; /* Make PLLDIV3 as bootpacket, do it for other PLLDIVx to if required*/
PLL0_PLLDIV5 = 0x8000 | PLLDIV5; /* Make PLLDIV5 as bootpacket, do it for other PLLDIVx to if required*/
PLL0_PLLDIV7 = 0x8000 | PLLDIV7; /* Make PLLDIV7 as bootpacket, do it for other PLLDIVx to if required*/
/*Set the GOSET bit in PLLCMD to 1 to initiate a new divider transition.*/
PLL0_PLLCMD |= 0x1;
/*Wait for the GOSTAT bit in PLLSTAT to clear to 0 (completion of phase alignment).*/
while(PLL0_PLLSTAT & 0x1==1) { }
/*Wait for PLL to reset properly. See PLL spec for PLL reset time - This step is not required here -step11*/
// for(i=0; i<PLL_RESET_TIME_CNT; i++) {;} /*128 MXI Cycles*/ /*Make PLL_RESET_TIME_CNT as boot packet*/
for(i=0; i<0xffff; i++) {;}
/*Set the PLLRST bit in PLLCTL to 1 to bring the PLL out of reset*/
PLL0_PLLCTL |= 0x8;
/*Wait for PLL to lock. See PLL spec for PLL lock time*/
for(i=0; i<PLL_LOCK_TIME_CNT; i++) {;} /*Make PLL_LOCK_TIME_CNT as boot Packet*/
/*Set the PLLEN bit in PLLCTL to 1 to remove the PLL from bypass mode*/
PLL0_PLLCTL |= 0x1;
KICK0R = 0x83e70b13; // Kick0 register + data (unlock)
KICK1R = 0x95a4f1e0; // Kick1 register + data (unlock)
CFGCHIP3 |= 0x4; // Enable 4.5 divider PLL
CFGCHIP3 |= 0x2; // Select 4.5 divider for EMIFA clock source only (not EMIFB)
CFGCHIP3 |= 0x1; // Select 4.5 divider for EMIFB clock source only (not EMIFA)
}
void emifconfig(void)
{
// ISSI IS42S16160B-6BL SDRAM, 2 x 16M x 16 (32-bit data path), 133MHz
EMIFB_SDCFG = 0 // SDRAM Bank Config Register
|( 1 << 15) // Unlock timing registers
|( 3 << 9 ) // CAS latency is 2
|( 2 << 4 ) // 4 bank SDRAM devices
|( 1 << 0 ); // 512-word pages requiring 9 column address bits
EMIFB_SDREF = 0 // SDRAM Refresh Control Register
|( 0 << 31) // Low power mode disabled
|( 0 << 30) // MCLK stoping disabled
|( 0 << 23) // Selects self refresh instead of power down
|( 8192 <<0); // Refresh rate = 7812.5ns / 7.5ns
EMIFB_SDTIM1 = 0 // SDRAM Timing Register 1
|( 8 << 25) // (67.5ns / 7.55ns) - 1 = TRFC @ 133MHz
|( 2 << 22 ) // (20ns / 7.5ns) - 1 =TRP
|( 2 << 19 ) // (20ns / 7.5ns) - 1 = TRCD
|( 1 << 16 ) // (14ns / 7.5ns) - 1 = TWR
|( 5 << 11 ) // (45ns / 7.5ns) - 1 = TRAS
|( 8 << 6 ) // (67.5ns / 7.5ns) - 1 = TRC
|( 1 << 3 ); // *(((4 * 14ns) + (2 * 7.5ns)) / (4 * 7.5ns)) -1. = TRRD
// but it says to use this formula if 8 banks but only 4 are used here.
// and SDCFG1 register only suports upto 4 banks.
EMIFB_SDTIM2 = 0 // SDRAM Timing Register 2
|( 16<< 27) // not sure how they got this number. the datasheet says value should be
// "Maximum number of refresh_rate intervals from Activate to Precharge command"
// but has no equation. TRASMAX is 120k.
|( 9 << 16) // ( 70 / 7.5) - 1
|( 5 << 0 ); // ( 45 / 7.5 ) - 1
EMIFB_SDCFG = 0 // SDRAM Bank Config Register
|( 1 << 16)
|( 0 << 15) // Unlock timing registers
|( 3 << 9 ) // CAS latency is 2
|( 2 << 4 ) // 4 bank SDRAM devices
|( 1 << 0 ); // 512-word pages requiring 9 column address bits
}
void CEint()
{
AEMIF_A2CR = 0 //CE3
| ( 0 << 31 ) // selectStrobe
| ( 0 << 30 ) // extWait
| ( 1 << 26 ) // writeSetup //1 // 0 ns
| ( 8 << 20 ) // writeStrobe //4 // 40 ns
| ( 2 << 17 ) // writeHold //1 // 0 ns
| ( 1 << 13 ) // readSetup //1 // 0 ns
| ( 6 << 7 ) // readStrobe //8 // 80 ns
| ( 2 << 4 ) // readHold // 1 // 10 ns
| ( 3 << 2 ) // turnAround //3 // 10 ns
| ( 0 << 0 ); // asyncSize // 8-bit bus // asyncSize // 8-bit bus*/
AEMIF_A3CR = 0 //CE4
| ( 0 << 31 ) // selectStrobe
| ( 0 << 30 ) // extWait
| ( 1 << 26 ) // writeSetup //1 // 0 ns********2
| ( 2 << 20 ) // writeStrobe //4 // 50 ns*******24
| ( 1 << 17 ) // writeHold //1 // 0 ns********2
| ( 2 << 13 ) // readSetup //1 // 0 ns
| ( 2 << 7 ) // readStrobe //20 // 200 ns*****24
| ( 2 << 4 ) // readHold // 1 // 10 ns
| ( 3 << 2 ) // turnAround //3 // 10 ns********3
| ( 1 << 0 ); // asyncSize // 16-bit bus
AEMIF_A4CR = 0 //CE5
| ( 0 << 31 ) // selectStrobe
| ( 0 << 30 ) // extWait
| ( 1 << 26 ) // writeSetup //1 // 0 ns
| ( 8 << 20 ) // writeStrobe //4 // 40 ns
| ( 2 << 17 ) // writeHold //1 // 0 ns
| ( 1 << 13 ) // readSetup //1 // 0 ns
| ( 6 << 7 ) // readStrobe //8 // 80 ns
| ( 2 << 4 ) // readHold // 1 // 10 ns
| ( 3 << 2 ) // turnAround //3 // 10 ns
| ( 1 << 0 ); // asyncSize // 16-bit bus
}

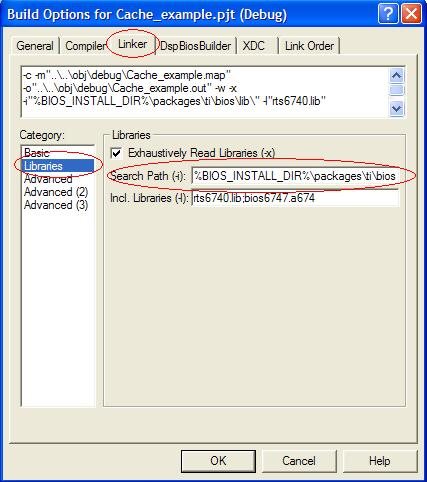

The cmd file follow:
-l rts64plus.lib
-l ..\..\..\C6747_common\lib\C6747bsl.lib
-stack 0x00001000 /* Stack Size */
-heap 0x00001000 /* Heap Size */
MEMORY
{
VECS: o = 0xFFFF0000 l = 0x00000080
ARMRAM: o = 0xFFFF0080 l = 0x00001f80
DSPRAM: o = 0x11800000 l = 0x00040000
SHAREDRAM: o = 0x80000000 l = 0x00020000
SDRAM: o = 0xC0000000 l = 0x20000000
ASRAM: o = 0x64000000 l = 0x02000000
}
SECTIONS
{
.bss > SHAREDRAM
.cinit > SHAREDRAM
.cio > SHAREDRAM
.const > SHAREDRAM
.stack > SHAREDRAM
.sysmem > SHAREDRAM
.text > SHAREDRAM
.switch > SHAREDRAM
.far > SHAREDRAM
}
