DM365 DVSDK 4.02 VPBE structure

Hi ,

Can any one can post any documentation links, it will be very helpfull.

Regards,

DIbin

Hi,

The dm36x had a daughter card with lcd on it from logicpd (I am not aware which one exactly it was), so logicpd_encoder.c is small module which would register as encoder to the vpbe through vid_enc_register_encoder(&logicpd_encoder_dev);.

Hope that helps!

Regards,
--Prabhakar Lad

Hi,

You can also refer this link www.ti.com/.../spruek9.pdf

Regards,
--Prabhakar Lad

Hi Prabhakar,

Thank you very much for your information.

I was trying to understand the driver structure for lcd display , still one question remains,

if vpbe_encoder.c have the digital LCD signals why we need other encoder for LCD support.

Regards,

Dibin

Hello,

The DVSDK which you are referring to is old, you can try referring to latest one which is based on 2.6.37 and doesnt have logicpd_encoder.c.
logicpd_encoder.c, is nothing but just setting the modes. (In the later version its all done in vpbe osd driver)

Cheers,
--Prabhakar Lad

Hi Lad,
Thankyou vermuch for reply.

I am using DM365 and new version is not supported for DM365, Is there any workaround available?

Regards,
Dibin

Hello,

Sorry I am pretty much sure 2.6.37 release supports DM36x (I did work on that release) not sure if its called dvsdk/psp release.

What workaround do you want for ? If you don’t need the logic encoder just unselect the config using defconfig (go through the user guide which I pointed out in earlier post)

Thanks,
--Prabhakar Lad

HI Prabhakar,

I am sorry I was not specified the details , What i meant was dvsdk 4.03 is not supported for dm365,

I want to connect LCD to dm365 , so Is it possible to configure logicpd_encoder.c file directly as per my LCD spec?


Regards,
Dibin

Hi Prabhakar,
I have configured logicpd_encoder as per LCD spec and were able to see test pattern set from VENC color patter register .
And LCD part works fine . But I am having some issues with OSD0 configuration. The OSD window size is not set correctly on LCD.
Please let me know if you have any inputs regarding this.
Any help is greatly appreciated .

Regards,
Dibin

Hi,

You need to set up the registers venc/osd. Just refer this examples [1] (fbdev_loopback.c) how the osd
is configured.

[1]

Cheers,
--Prabhakar Lad

Hi

I have tried with register configuration.

Still I am facing error . Only ver small section of LCD shows correct data , other section is showing  junk values.

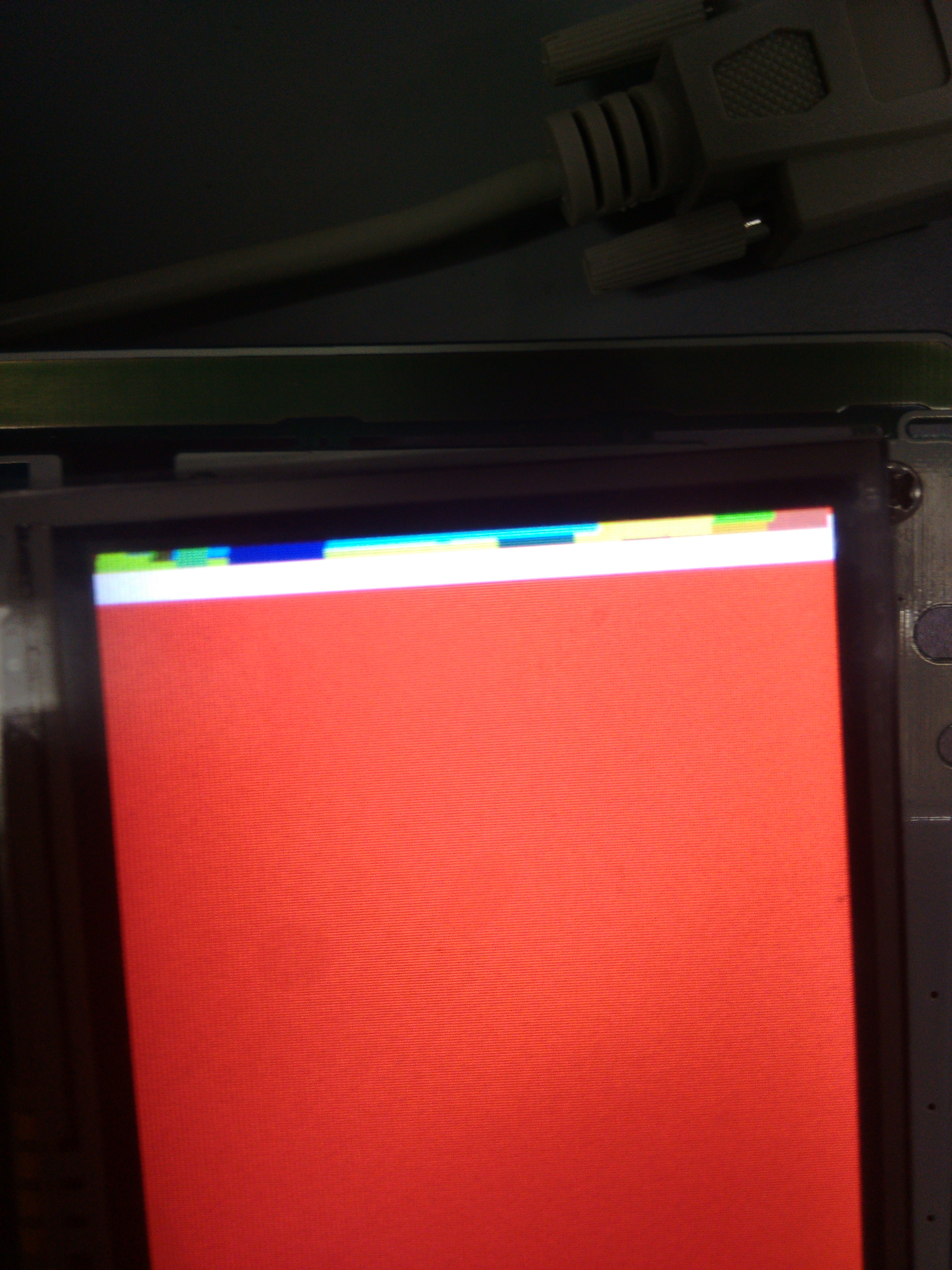

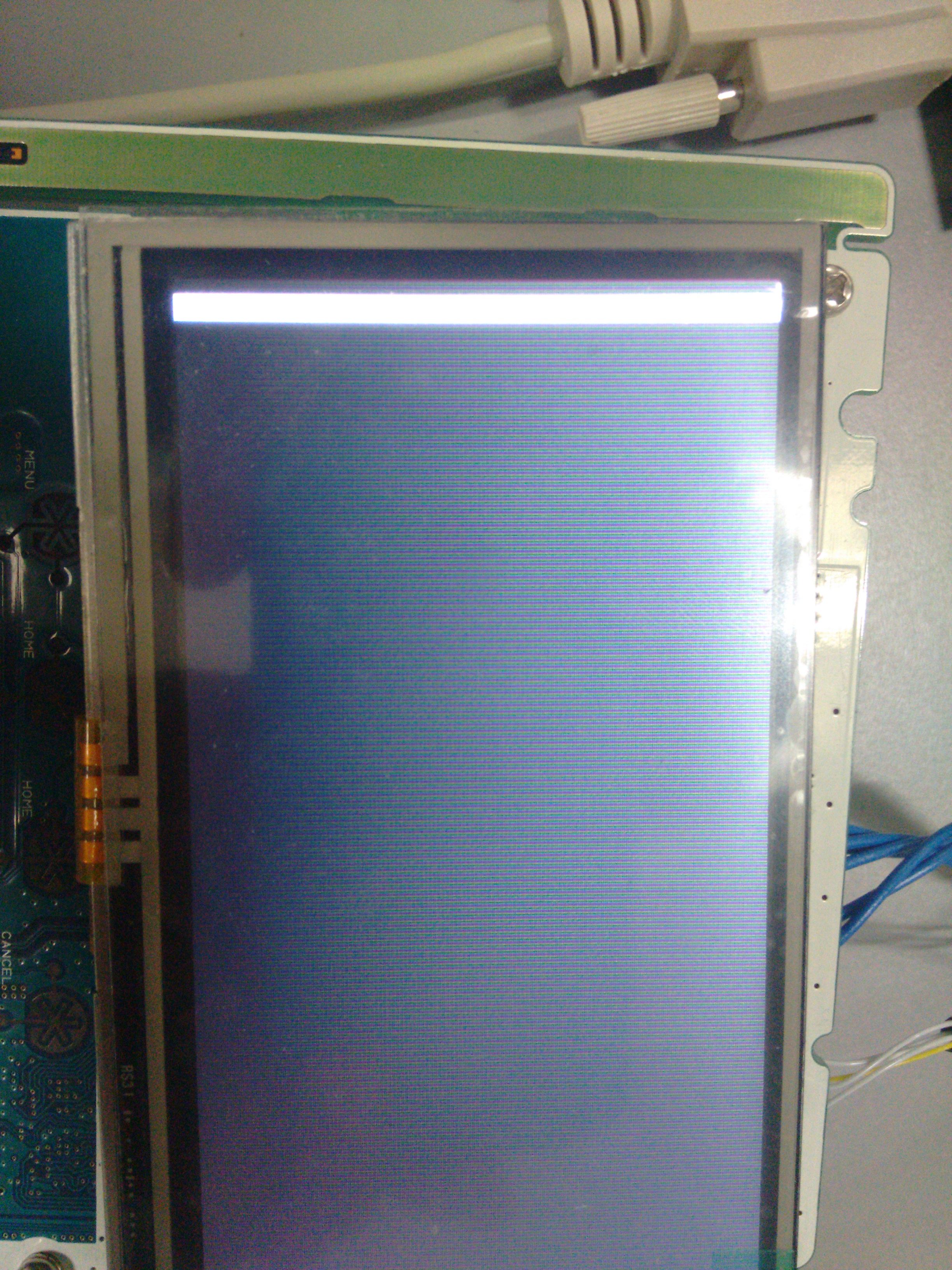

In the attached image there is two sections seperated by a white space , one is very small.

In that very small area only getting displayed correct.

tests are done by fb-test programs

Regards,

Dibin

Hi,

Can you post the errors ?

Cheers,
--Prabhakar Lad

Hi ,

My application will write random rectangles on fb0 ,

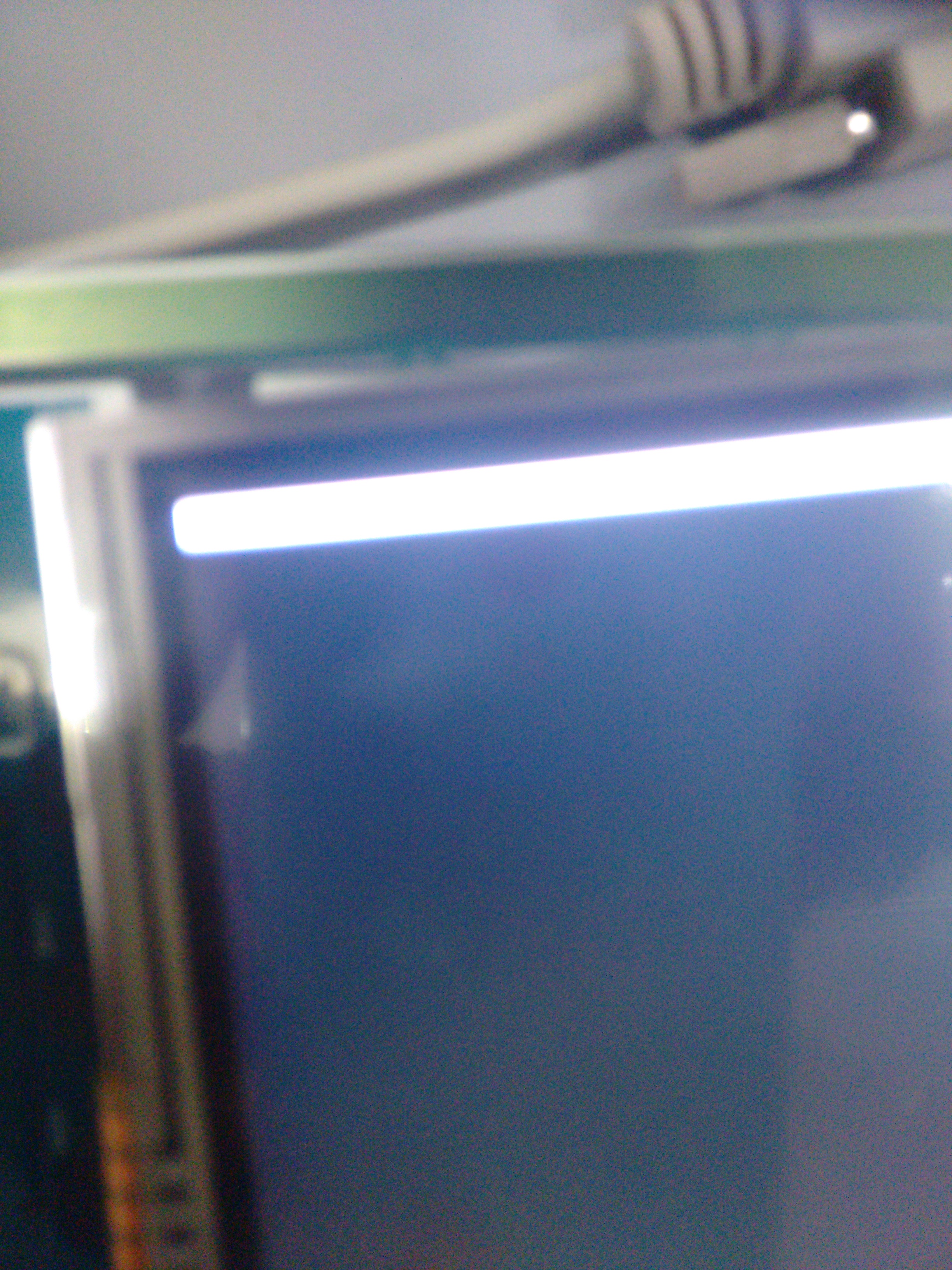

Please check the pic you can see its coming in small portion only .

Below is my application log.

Returning x = 6, y = 255, w = 202, h = 9
fill_rect 6,255 202x9
Returning x = 261, y = 213, w = 84, h = 18
fill_rect 261,213 84x18
Returning x = 127, y = 69, w = 143, h = 202
fill_rect 127,69 143x202
Returning x = 130, y = 141, w = 304, h = 99
fill_rect 130,141 304x99
Returning x = 320, y = 195, w = 46, h = 25
fill_rect 320,195 46x25
Returning x = 138, y = 21, w = 11, h = 225
fill_rect 138,21 11x225
Returning x = 90, y = 122, w = 167, h = 98
fill_rect 90,122 167x98
Returning x = 430, y = 9, w = 8, h = 74
fill_rect 430,9 8x74
Returning x = 90, y = 84, w = 252, h = 109
fill_rect 90,84 252x109
Returning x = 459, y = 150, w = 4, h = 28
fill_rect 459,150 4x28
Returning x = 393, y = 185, w = 86, h = 37
fill_rect 393,185 86x37
Returning x = 232, y = 4, w = 110, h = 28
fill_rect 232,4 110x28
Returning x = 317, y = 133, w = 123, h = 50
fill_rect 317,133 123x50
Returning x = 223, y = 190, w = 212, h = 18

Regards,

Dibin

Hi,

Just do the following:
$ yes 54 > /dev/fb0
$ yes 0 > /dev/fb0

Let me know what happens weather entire screen image changes or selected part only.

Cheers,
--Prabhakar Lad

Hi ,

Yes 54 changes , entire screen other than  white strip,

yes 0 , I am getting no space error,

Regards,

Dibin

Hi Prabhakar,

Any idea, where should start looking  to fix issue?

Regards,

Dibin

Hi,

Glad to hear it works! was busy with my work couldn’t respond you in time.

Cheers,
--Prabhakar Lad
