P212A Schematic?

Trent Oshiro

I was wondering if there was a schematic for the Omnivision OV2659 camera module (P212A) that is being used on the AM437x GP EVM. The GP EVM schematics show interconnections between MPU and the J2 connector, but it does not show the interconnections between J2 and OV2659. I have already checked on SunnyOptics website and TI's website for a datasheet or schematic of P212A, but found nothing. I would like to know what these interconnections are to verify our own custom board's interconnections to a similar camera part.

"The OmniVision OV2659 SOC-based 2-MP camera module from SunnyOptics with part number P212A interfaces with the header J2." -AM437x GP EVM Hardware User's Guide

Thanks,

Trent

over 10 years ago

0 Biser Gatchev-XID over 10 years ago

TI__Guru**** 393215 points

Hi Trent,

The AM437X camera board schematic can be found here: http://processors.wiki.ti.com/index.php/AM437X_EVM_Boards#Camera_2Mp_Board

0 Trent Oshiro over 10 years ago in reply to Biser Gatchev-XID

Intellectual 505 points

Hey Biser,

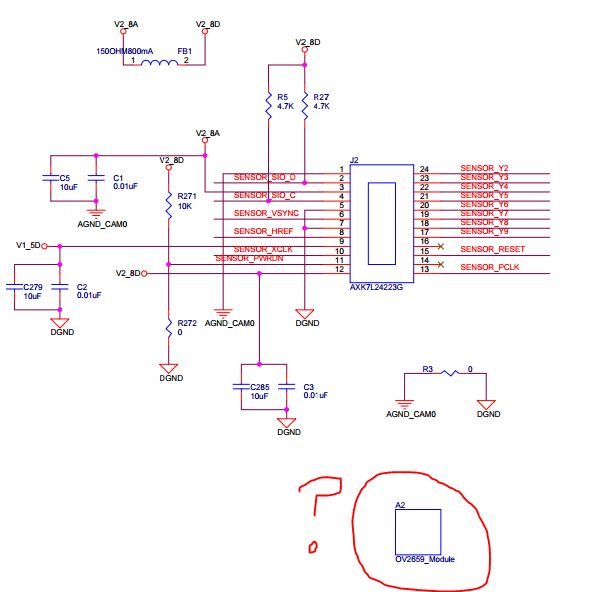

The link you provided directs me to the schematic of the ARM MPU 2Mpixel Camera Sensor Board which shows the OV2569 module as a floating component as shown below. I'm specifically looking for the schematic of what is inside of that component itself, the OV2569_Module (P212A), if that documentation is publicly available.

Thanks,

Trent

0 Biser Gatchev-XID over 10 years ago in reply to Trent Oshiro

TI__Guru**** 393215 points

J2 is the Camera Module connector. You won't find schematics of what's inside the module anywhere - that's manufacturer's proprietary information. Even module datasheets are provided by Omnivision after individual request and possibly under NDA only.

0 Trent Oshiro over 10 years ago in reply to Biser Gatchev-XID

Intellectual 505 points

Thanks Biser. That's what I figured. Appreciate the help.
