How can i select PCIe clock source?

Abdul Basit2

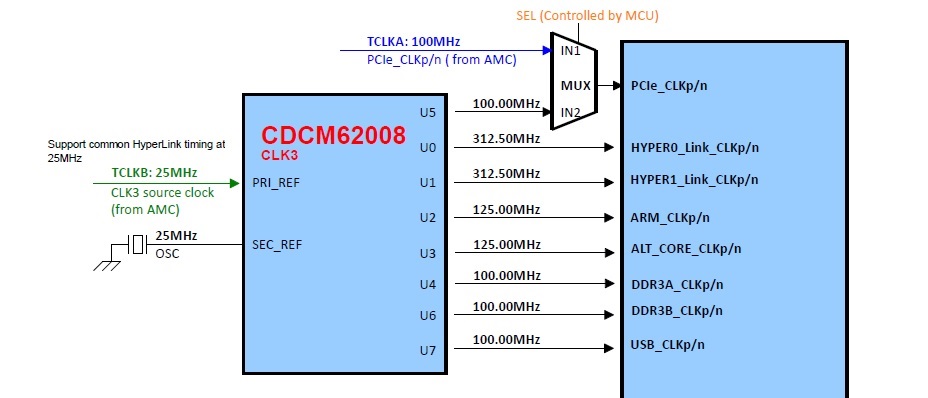

I am using EVMK2H As per this diagram PCie clock can be provided with two sources. One is from CDCM62008 and other is from AMC card. My question is how can I forcefully set it to be AMC clock. i.e writing 1 on sel line of MUX.

Regards

Abdul Basit

over 10 years ago

0 Senthilkumar Srinivasan over 10 years ago

TI__Mastermind 43660 points

Hello Abdul,

You could select the PCIe reference clock from the AMC card by driving the PCIECLK_MUX_SEL high from the micro-controller. If you are not driving this pin from the micro-controller, then you could change the pull resistor option (R275 & R276) to logic high.

Regards,
Senthil

0 Abdul Basit2 over 10 years ago in reply to Senthilkumar Srinivasan

Intellectual 510 points

Thanks Senthil To which register should I write the value of PCIECLK_MUX_SEL. Does this mean I have to write an application for controller or there is another way to write to register.

Regrads

0 Senthilkumar Srinivasan over 10 years ago in reply to Abdul Basit2

TI__Mastermind 43660 points

Hello Abdul,

I believe the BMC software controls the micro-controller operation and the BMC binaries are available in the below link.

wfcache.advantech.com/.../BMC_EVMK2K_1_0_2_6.zip

If you need more information on this, i would suggest you to contact Advantech support directly.

Regards,
Senthil

0 Abdul Basit2 over 10 years ago in reply to Senthilkumar Srinivasan

Intellectual 510 points

thanks Senthil.

in BMC we have to type "pcie 1" to set select high.
